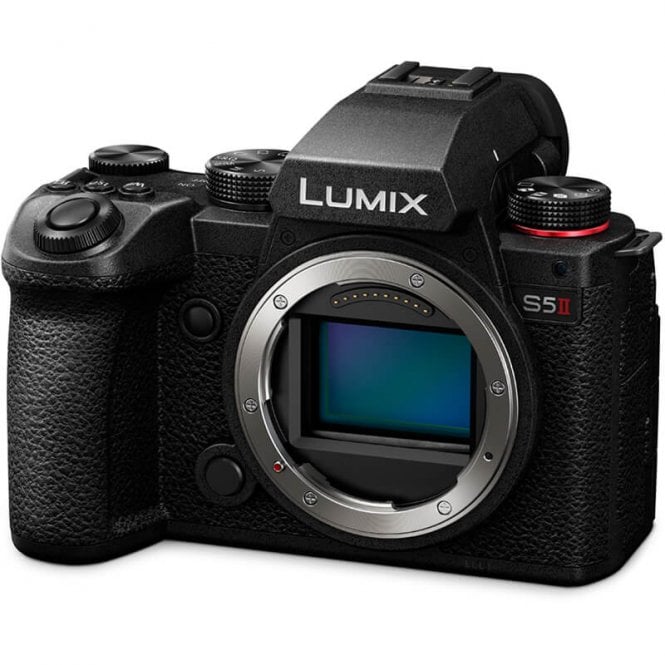

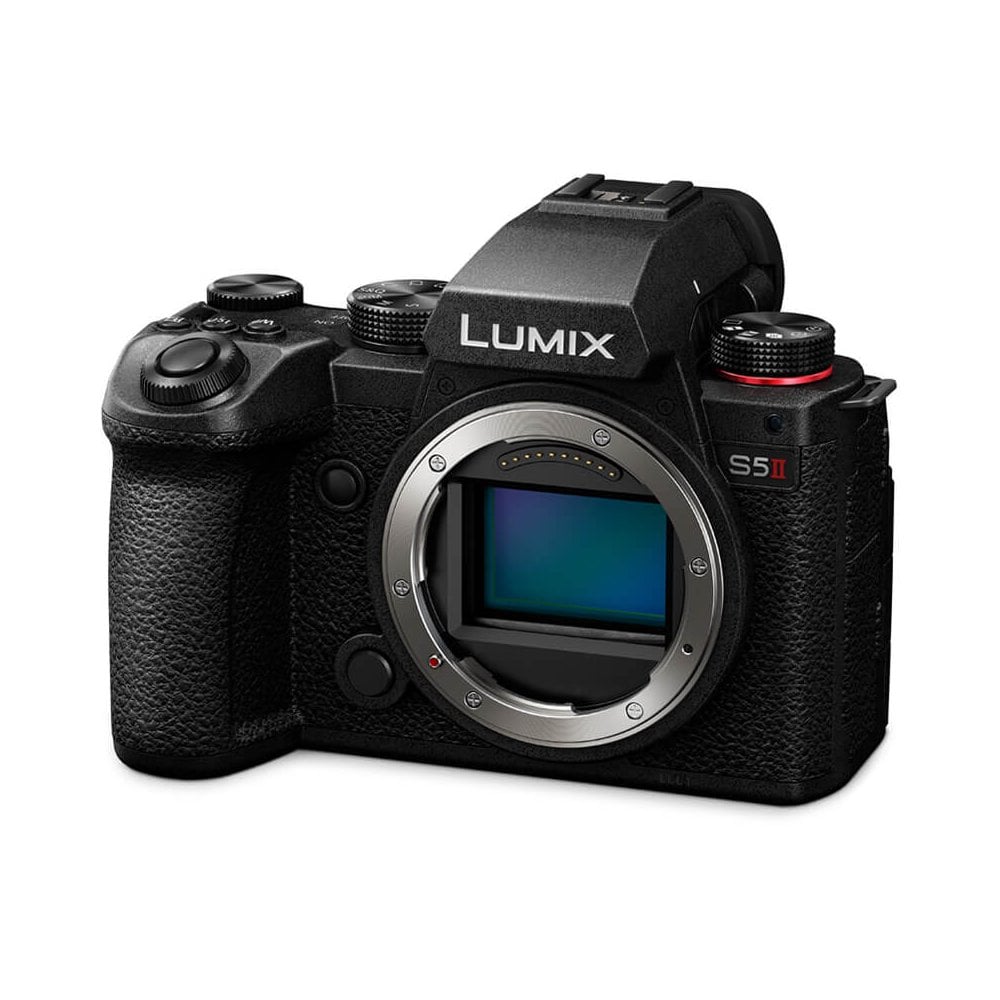

Panasonic Lumix PAN-DC-S5M2E DC-S5II Mirrorless Camera - Body Only

Panasonic Lumix PAN-DC-S5M2E (PAN/DC-S5M2E, PAN/DC/S5M2E, PANDCS5M2E, PAN DC S5M2E) DC-S5II Mirrorless Camera - Body Only

With incredible performance in both photo and video capture and stunning lightweight mobility, these L Mount cameras are designed to fulfill the demands of the most ambitious creators while representing exceptional value for money.

Both models are built around a newly developed 24-megapixel 35mm full-frame CMOS sensor and imaging engine. The sensor supports Hybrid Phase Detection Auto-Focus, a first for LUMIX cameras, while the new engine provides superb image quality and high bit-rate video performance on a par with the LUMIX S1H.

AF PERFORMANCE

With a new imaging engine developed within the L2 Technology partnership formed by LEICA and LUMIX, and a new 24-megapixel sensor, the LUMIX S5II and S5IIX are the first LUMIX cameras to offer Hybrid Phase Detection Auto-Focus (PDAF). The cameras use a new Phase Hybrid AF system combining PDAF with Contrast Detect AF. Fast and dependable and providing 779-area metering, the new system is able to detect target subjects in difficult conditions such as low light and backlighting and, once locked on, will remain tracking them even with other moving objects in the frame.

Continuous AF during zooming1 and AF micro adjustment are also available.

1 Conventional zoom lenses require firmware update to use Continuous AF during zooming.

A WEALTH OF VIDEO FUNCTIONS AND RECORDING OPTIONS

The new engine gives the LUMIX S5IIX and S5II video recording capabilities including internal 4:2:0 10-bit 6K (3:2) and 5.9K (16:9) at 30fps and 4:2:2 C4K and 4K at up to 60fps, while a new low-profile heat management system allows for unlimited recording times1 without increasing the size of the camera body. The cameras also support HFR (High Frame Rate) recording at up to 120fps and Slow & Quick capture at up to 180fps.

The LUMIX S5IIX is capable of 5.8K Apple ProRes recording to SSD via HDMI or USB, and ALL-Intra Recording. Additionally, the S5iiX can support Apple Pro Res RAW video output to Atomos. It also supports wired2 and wireless IP streaming and USB tethering.

A range of picture profiles including 14+ stop V-Log/V-Gamut are available on both models, as well as a new REAL TIME LUT function enabling colour grading LUTs to be uploaded to an SD card and directly applied in-camera rather than in post-production.

In response to requests from professional users, functions such as Waveform Monitor, Vector Scope and Zebra Pattern have been added, as well as features such as System Frequency (24.00Hz) and Synchro Scan.

Clear and realistic 48kHz/24-bit audio can be recorded by the built-in or an external microphone, while high-resolution 96kHz/24-bit recording is possible with external and XLR microphones.

1 When the camera is used at recommended operating temperature 0-40 degrees C. 6K and 5.9K at 30p/25p video recording stops once when continuous recording time exceeds 30 minutes if [Thermal Management] is set to [STANDARD].

2 Requires USB-LAN adapter, sold separately.

PROFESSIONAL PHOTO AND VIDEO PERFORMANCE

Thanks to host of new and improved features, the LUMIX S5IIX and S5II are able to deliver truly astounding photo and video performance, including high-speed burst shooting at up to 9fps with mechanical shutter and 30fps with electronic shutter (capable of capturing up to 300 images), a 96-megapixel High Resolution Mode (JPEG/RAW) and Dual Native ISO sensitivity, which minimises noise and allows a maximum ISO of 51200 (204800 when Extended).

The LUMIX S5IIX and S5II also boast an upgraded image stabilisation system to greatly enhance handheld shooting in a wide range of conditions and situations. The new Active I.S. provides highly stable video recording by optimising horizontal, vertical and rotational correction. Compensating as much as 200%2 compared to conventional stabilisation, Active I.S. is especially effective in traditionally challenging conditions for handheld shooting, such as using telephoto lenses or filming while walking.

1 Based on the CIPA standard [Yaw/Pitch direction: focusing distance f=200mm when S-E70200 is used. Firmware must be updated to the latest version.

2 Compared with LUMIX S5. Focal length 20mm, when using S-R2060.

SUPERIOR HANDLING AND OPTIONS FOR ‘ONE-PERSON CREW’ OPERATION

The LUMIX S5IIX and S5II offer a highly refined shooting experience, allowing creators to achieve excellent results with minimal workflow thanks to features such as AWB Lock, MF Assist (available for both video1 and photo shooting) and a new Live Crop function, which records video footage using the entire sensor surface enabling the user to crop 4K and FHD images out afterwards.

Usability is further enhanced with the new easy-to-operate 8-way joystick, expanded drive dial, 3.0-inch free-angle touch-control monitor and large, 3,680K-dot OLED Live View Finder.

1 Up to 60p. Does not work in Variable Frame Rate mode.

CLASS-LEADING RELIABILITY AND CONNECTIVITY

The cameras are built to robust standards for in-field use, with magnesium alloy die-cast front and rear frames and a splash- and dust-resistant1 construction.

Connectivity has been improved over the LUMIX S5, with the LUMIX S5IIX and S5II each featuring a full-size HDMI Type A terminal and high-speed USB 3.2 Gen 2, plus a cable lock holder to prevent unwanted unplugging. Wireless connectivity has been improved too, with Wi-Fi 5GHz2 joining 2.4GHz to provide fast, stable communication with smartphones and tablets.

Dual card slots (both UHS-II) support Relay Recording, Backup Recording and Allocation Recording and the 2200mAh high-capacity battery can be recharged via AC or USB.

1 Dust and Splash Resistant does not guarantee that damage will not occur if this lens is subjected to direct contact with dust and water. 2 5GHz Wi-Fi is not available in some countries.

TYPE

• Type: Digital Single Lens Mirrorless camera
• Lens mount: L-Mount

IMAGE SENSOR

• Type: 35mm full-frame (35.6mm x 23.8mm) CMOS sensor
• Camera effective pixels / Total pixels: 24.20 megapixels / 25.28 megapixels
• AR (Anti Reflection) coating: Yes
• Aspect ratio / Color filter: 3:2 / Primary color filter
• Dust reduction system: Image sensor shift type
• LATITUDE: 14+ stops (V-Log)

STILL IMAGE

• Recording file format: JPEG (DCF, Exif 2.31), RAW
• Aspect ratio: 4:3 / 3:2 / 16:9 / 1:1 / 65:24 / 2:1

File Size (Pixels) - When using full-frame lenses

• 3:2: 6000x4000(L)/4272x2848(M)/3024x2016(S)/12000x8000(XL)*/8496x5664(LL)* *High Resolution mode.
• 4:3: 5328x4000(L)/3792x2848(M)/2688x2016(S)/10656x8000(XL)*/7552x5664(LL)* *High Resolution mode.
• 16:9: 6000x3368(L)/4272x2400(M)/3024x1704(S)/12000x6736(XL)*/8496x4784(LL)* *High Resolution mode.
• 1:1: 4000x4000(L)/2848x2848(M)/2016x2016(S)/8000x8000(XL)*/5664x5664(LL)* *High Resolution mode.
• 65:24: 6000x2208(L)
• 2:1: 6000x3000(L)

File Size (Pixels) - When using APS-C/Super 35mm Lenses

• 3:2: 3984x2656(L)/2880x1920(M)/2064x1376(S)
• 4:3: 3536x2656(L)/2560x1920(M)/1840x1376(S)
• 16:9: 3984x2240(L)/2880x1624(M)/1920x1080(S)
• 1:1: 2656x2656(L)/1920x1920(M)/1376x1376(S)
• Image quality: RAW/RAW+Fine/RAW+Standard/Fine/Standard(High Resolution mode: Combined / RAW / RAW+Fine / Fine)
• Color space: sRGB, AdobeRGB

MOTION PICTURE

• Recording file format: MOV: H.264/MPEG-4 AVC, H.265/HEVC, MP4: H.264/MPEG-4 AVC, H.265/HEVC
• Audio format: MOV: LPCM (2ch 48kHz/24-bit, 96kHz/24-bit*) (4ch 48kHz/24-bit**, 96kHz/24-bit**) MP4: AAC (2ch 48kHz/16-bit) *When attaching 3.5mm microphone or DMW-XLR1 (sold separately). **When attaching DMW-XLR1 (sold separately)."
• System frequency: 59.94Hz / 50.00Hz / 24.00Hz
• Image area of video: Full / APS-C / PIXEL/PIXEL

VIEWFINDER

• Type: OLED Live View Finder
• Pixels: Approx. 3.68 million dots
• Field of view / Magnification: Approx. 100% / Approx. 0.78x with 50 mm lens at infinity; -1.0 m-1, when the aspect ratio is set to 3:2
• Eye point / Diopter adjustment: Approx. 21 mm at infinity; -1.0 m-1 / -4.0 - +2.0 (dpt)
• Eye sensor: Yes
• Display speed: 120fps / 60fps

REAR MONITOR

• Type: TFT LCD monitor with static touch control
• Monitor size: Free-angle, 3.0- inch (7.6cm), 3:2 aspect
• Pixels: Approx. 1.84 million dots
• Field of view: Approx. 100%

FOCUS

• Type: Phase Detection AF system / Contrast AF system
• DFD technology: Yes
• Focus mode: AFS (Single) / AFC (Continuous) / MF AF mode Tracking / Full Area AF / Zone (Horizontal/Vertical) / Zone / 1-Area+ / 1-Area / Pinpoint *Automatic Detection can be turned ON to switch between Human/ Face/Eye/ Animal+Human. Except when Pinpoint is set."
• AF detective range: EV -6 - 18 (F1.4, ISO100 equivalent, AFS)
• AF custom setting: AF Sensitivity, AF Area Switching Sensitivity, Moving Object Prediction
• AF assist light: Yes
• AF lock: Set the Fn button in custom menu to AF lock
• Focus ring control: Nonlinear / Linear (90°/ 120°/ 150°/ 180°/ 210°/ 240°/ 270°/ 300°/ 330°/ 360°/ 720°/ 1080°/ Maximum)
• Others: AF-ON, AF-ON: Near Shift, AF-ON: Far Shift, Focus Limiter, Focus Peaking, 1-Area AF Moving Speed, AF Micro Adjustment, Continuous AF (during motion picture recording), Focus/Shutter Priority, Focus Switching for Vert/Hor, AF/AE Lock Hold, AF+MF, MF Assist, MF
• Guide, Focus Ring Lock, Show/Hide AF Mode, Shutter AF, Half Press Shutter, Quick AF, Eye Sensor AF, Loop Focus Frame, Enlarged Live Display (Video), Touch Shutter, Touch AF/AE Function, Touch Pad AF, Lens Focus Resum

EXPOSURE CONTROL

• Light metering system: 1,728-zone multi-pattern sensing system
• Light metering mode: Multiple / Center Weighted / Spot / Highlight Weighted
• Metering range: EV0-18 (F2.0 lens, ISO100 equivalent)
• Mode dial: Program AE (P) / Aperture Priority AE (A) / Shutter Priority AE (S) / Manual Exposure (M) / Creative Video (P/A/S/M)* / Slow&Quick / Custom 1, 2, 3 / Intelligent Auto *The same exposure operations as P/A/S/M mode is available."
• Exposure compensation: 1/3 EV step ±5EV (±3EV for motion picture)

ISO sensitivity (Standard output sensitivity)

• [Normal]: Auto / 50* / 100-51200 / 102400* / 204800* (1/3 or 1 EV step) *Extended ISO
• [V-Log]: Auto / 320* / 640-51200 (1/3 or 1 EV step) *Extended ISO
• [HLG]: Auto / 400-51200 / 102400* / 204800* (1/3 or 1 EV step) *Extended ISO"
• Dual Native ISO
• [Normal]: Native ISO: 100, 640 Auto: Auto / 50* / 100-51200 / 102400* / 204800* *Extended ISO Low: Auto / 50* / 100-800 *Extended ISO High: Auto / 320* / 640-51200 / 102400* / 204800* *Extended ISO
• [V-Log]: Native ISO: 640, 4000 Auto: Auto / 320* / 640-51200 *Extended ISO Low: Auto / 320* / 640-5000 *Extended ISO High: Auto / 2000* / 4000-51200 *Extended ISO
• [HLG]: Native ISO: 400, 2500 Auto: Auto / 400-51200 / 102400* / 204800* *Extended ISO
• Low: Auto / 400-3200 High: Auto / 2500-51200 / 102400* / 204800* *Extended ISO
• [Cinelike D2 / Cinelike V2]: Native ISO: 200, 1250 Auto: Auto / 100* / 200-51200 / 102400* / 204800* *Extended ISO Low: Auto /100* / 200-1600 *Extended ISO High: Auto / 640* / 1250-51200 / 102400* / 204800* *Extended ISO"
• AE lock: Set the Fn button in custom menu to AE lock

IMAGE STABILIZATION SYSTEM

• B.I.S. (5-axis / 5-stop*): *Based on the CIPA standard [Yaw/Pitch direction: focusing distance f=60mm when S-R2060 is used.]
• Dual I.S. 2 (6.5-stop*): *Based on the CIPA standard [Yaw/Pitch direction: focusing distance f=200mm when S-E70200 is used.]

WHITE BALANCE

• White balance: AWB / AWBc / AWBw / Daylight / Cloudy / Shade / Incandescent / Flash / White Set 1, 2, 3, 4 / Color temperature setting 1, 2, 3, 4
• White balance adjustment: Blue/Amber bias, Magenta/Green bias
• Color temperature setting: 2500- 10000K in 100K

SHUTTER

• Type: Focal-plane shutter
• Shutter speed: Still image: Bulb (Max. 30 minutes), 1/8,000 - 60 Electronic front curtain shutter: Bulb (Max. 30 minutes), 1/2,000 - 60 Electronic shutter: Bulb (Max. 60 sec), 1/8,000 - 60 Motion picture: 1/16,000 - 1/25 Creative Video M mode / MF mode: 1/16,000 - 1/2
• Self timer: 10sec, 3 images / 2sec / 10sec / Custom Time
• Remote control: Remote control by DMW-RS2 (sold separately)
• Silent mode / Shutter type: Yes / Yes (Auto / Mechanical / Electronic front curtain / Electronic / Electronic+NR)

BRACKET

• AE bracket: 3, 5, 7 images in 1/3, 2/3 or 1 EV step, max. ±3 EV, single/burst
• Aperture bracket: 3, 5 or all positions
• Focus bracket: 1 to 999 images, focus steps can be set in 10 levels
• White balance bracket: 3 images in blue/amber axis or in magenta/green axis, color temperature setting

BURST SHOOTING

• Burst Speed - Mechanical Shutter / Electronic Front Curtain Shutter: H: 9 frames/sec (AFS/MF), 7 frames/sec (AFC) (with Live View), M: 5 frames/sec (AFS/MF) (with Live View), 5 frames/sec (AFC) (with Live View), L: 2 frames/sec (AFS/AFC/MF) (with Live View)
• Burst Speed - Electronic Shutter: SH30: 30 frames/sec (AFS/AFC/MF), H: 9 frames/sec (AFS/MF), 8 frames/sec (AFC) (with Live View), M: 5 frames/sec (AFS/MF) (with Live View), 5 frames/sec (AFC) (with Live View), L: 2 frames/sec (AFS/AFC/MF) (with Live View)
• Number of recordable images: H/M/L*, RAW+JPEG: More than 200 images, RAW: More than 200 images, JPEG: More than 300 images *Until the burst shooting speed slows. When recording is performed under the test conditions specified by Panasonic. *When using a card with SD Speed Class with "UHS-II UHS Speed Class 3 (U3)". SH, RAW / RAW+JPEG / JPEG: 200 images

FLASH

• Flash type: TTL External Flash (sold separately)
• Synchronization speed: Less than 1/250 second *The guide number decreases at 1/250 second. Only when set to M mode or S
• mode.
• Flash mode: Auto* / Auto/Red-eye Reduction* / Forced On / Forced On/Red-eye Reduction / Slow Sync. / Slow Sync./Red-eye
• Reduction / Forced Off *For iA only.
• Flash synchronization: 1st Curtain Sync, 2nd Curtain Sync.
• Flash output adjustment: 1/3EV step ±3EV
• Wireless control: Yes (When using DMW-FL200L / FL360L / FL580L (sold separately)), Wireless Channel: 1ch/2ch/3ch/4ch
• EXTRA TELE CONVERSION: 2.0x (EX S) (When using full-frame lenses), 1.9x (EX S) (When using APS-C / Super 35mm lenses), 1.4x (EX M) *Only for still image recording.

COLOUR SETTINGS

• Photo Style: Standard / Vivid / Natural / L. Classic Neo / Flat / Landscape / Portrait / Monochrome / L. Monochrome / L. Monochrome D / L.
• Monochrome S / Cinelike D2 / Cinelike V2 / Like709 / V-Log / REAL TIME LUT / Like2100 (HLG) / Like2100 (HLG) Full Range* / My Photo Style 1-4 (5-10)* *Set to ON from Show/Hide Photo Style to select.
• Picture Adjustment: Contrast / Highlight / Shadow / Saturation / Color Tone / Hue / Filter Effect / Grain Effect / Color Noise / Sharpness / Noise
• Reduction / ISO / WB / LUT *Adjustable settings vary depending on the Photo Style mode.
• Filter: Expressive / Retro / Old Days / High Key / Low Key / Sepia / Cross Process / Bleach Bypass
• LUT Library: Vlog_709 / Set 1-10 *REAL TIME LUT in Photo Style, Apply LUT in Fn button, Apply LUT in RAW Processing, LUT View Assist in V-Log View Assist, LUT can be applied from these settings.

MOTION PICTURE FUNCTION

• Time-lapse shot: Yes
• Stop motion animation: Yes
• Live cropping: Yes (Supports cropping from 5.9K (FULL) 30p/25p/24p video to 4K/FHD sizes)
• SS/Gain operation: Shutter Duration/ISO / Angle/ISO / Shutter Duration/dB
• Luminance level: 8-bit: 0-255 / 16-235 / 16-255, 10-bit: 0‒1023 / 64‒940 / 64‒1023
• Synchro scan: Yes
• Master pedestal level: 31 steps
• Color bars / 1kHz test tone: Yes (SMPTE / EBU / ARIB) / Yes
• LUT view assist: Supported file types: .vlt, .cube Monitor / HDMI
• HLG view assist: Monitor (MODE1 / MODE2 / OFF) / HDMI (AUTO / MODE1 / MODE2 / OFF)
• Anamorphic desqueeze display: 2.0x / 1.8x / 1.5x / 1.33x / 1.30x / OFF
• Wave form monitor / Vectorscope: Selectable
• Knee control: Yes (in Like709 mode)
• Red REC frame indicator: ON / OFF
• VERTICAL POSITION INFORMATION: Still image / Motion picture (ON/OFF)
• LEVEL GAUGE: Yes

FUNCTION BUTTON

• REC: Exposure Comp. / Dual Native ISO / Sensitivity / White Balance / Photo Style / Apply LUT / Metering Mode / Aspect Ratio / Picture Quality / Picture Size / 1 Shot Spot Metering / Long Exposure NR / Min. Shutter Speed / 1 Shot RAW+JPG / i.Dynamic Range / Color Shading Compensation / Filter Effect / One Push AE / Touch AE / AWB Lock / Exposure Mode / Synchro Scan / AF Mode / AF Detection Setting / Detecting Subject / AF Custom Setting(Photo) / AF Custom Setting(Video) / Focus Limiter / Focus Limiter Range Set / Focus Peaking / Focus Peaking Sensitivity / 1-Area AF Moving Speed / Focus Ring Lock / AE LOCK / AF LOCK / AF/AE LOCK / AF-ON / AF-ON: Near Shift / AF-ON: Far Shift / Focus Area Set / Enlarged Live Display (Video) / Flash Mode / Flash Adjust. / Wireless Flash Setup / Drive Mode Setting / Bracketing / Silent Mode / Image Stabilizer / Shutter Type / Ex. Tele Conv. / Rec. File Format / Rec Quality / Rec Quality (My List) / Slow & Quick Setting / Time Code Display / Audio Information / Sound Rec Level Disp. / Mute Sound Input / Sound Rec Level Adj. / Sound Rec Quality / Sound Rec Level Limiter / 4ch Mic Input / XLR Mic Adaptor Setting / Sound Monitoring Channel / Image Stabilizer / E-Stabilization (Video) / Boost I.S. (Video) / Image Area of Video / Focus Transition / Live Cropping / Q.MENU / Rec/Playback Switch / Video Record / Video Record (Creative Video) / LVF/Monitor Switch / Operation Lock / Dial Operation Switch / Preview / Preview Aperture Effect / Constant Preview / Level Gauge / Histogram / Luminance Spot Meter / Frame Marker / Photo Grid Line / Live View Boost / Monochrome Live View / Night Mode / LVF/Monitor Disp. Set / Video-Priority Display / Zebra Pattern / LUT View Assist (Monitor) / LUT View Assist (HDMI) / LUT Select / HLG View Assist(Monitor) / HLG View Assist (HDMI) / Sheer Overlay / I.S. Status Scope / WFM/Vector Scope / Anamorphic Desqueeze Display / Color Bars / Focus Ring Control / AF Micro Adjustment / Lens Information / Destination Card Slot / Wi-Fi / Fan Mode / Save to Custom Mode / No Setting / Off (Disable Press and Hold) / Restore to Default
• PLAY: Magnify from AF Point / LUT View Assist (Monitor) / HLG View Assist (Monitor) / Anamorphic Desqueeze Display / RAW Processing / Delete Single / Protect / Rating 1, 2, 3, 4, 5 / Copy / Rec/Playback Switch / LVF/Monitor Switch / Video Record / Video Record (Creative Video) / Night Mode / Card Slot Change / Sound Monitoring Channel(Play) / Wi-Fi / Fan Mode / Send Image (Smartphone) / LUT View Assist (HDMI) / HLG View Assist (HDMI) / No Setting / Off (Disable Press and Hold) / Restore to Default
• OSD LANGUAGE: Please refer to "OSD" Sheet

INTERFACE

• USB: USB Type-C (SuperSpeed USB 10Gbps (USB 3.2 Gen2))
• HDMI (*2): HDMI: HDMI TypeA
• Audio: ON / OFF, MP4: 2ch, MOV: 2ch (When [4ch Mic Input] is set to OFF.), 4ch (When [4ch Mic Input] is set to ON.), Monitor-through: 4:2:2 10bit (When [Rec Quality] is set to [4:2:2 10bit] or [4:2:0 10bit].), 4:2:2 8bit (When [Rec Quality] is set to [4:2:0 8bit].), Playback: 59.94Hz: C4K/60p / C4K/30p / 4K/60p / 4K/30p / 1080/120p / 1080p / 1080i / 720p* / 480p*50.00Hz: C4K/50p / C4K/25p / 4K/50p / 4K/25p / 1080/100p / 1080p / 1080i / 720p* / 576p*24.00Hz: C4K/24p / 4K/24p / 1080p*Only for playback.
• Remote input: φ2.5mm
• Audio: Build-in microphone: Stereo, Wind Noise Canceller: OFF / Standard / High
• External microphone / External audio device input: φ3.5mm for external microphone / external audio device MIC (Plug-in Power) / MIC / LINE Wind Cut: OFF / Low / Standard / High      *When attaching 3.5mm microphone (sold separately). Special Mic: Stereo / Shotgun     *When attaching DMW-MS2 (sold separately).
• XLR microphone: Yes with DMW-XLR1 (sold separately)
• 4ch mic input: Yes with DMW-XLR1 (sold separately)
• Speaker: Monaural
• SD card slot: φ3.5mm

TC IN/OUT

• Count up: Rec Run / Free Run
• Time code mode: Drop Frame / Non-Drop Frame (When system frequency [59.94Hz] is selected.)
• HDMI time code output: ON / OFF
• FAN: Auto1 / Auto2 / Fast / Normal / Slow* / OFF** *Not selectable when the resolution is higher than C4K, or the frame rate is higher than 60p. **OFF can be set when in iA/P/A/S/M mode.

WIRELESS

• Wi-Fi: 2.4GHz bands (STA/AP) (IEEE802.11b/g/n) 5GHz bands (STA) (IEEE 802.11a/n/ac) Security: WPA/WPA2/WPA3 Please refer to "Wi-Fi" Sheet
• Bluetooth: Bluetooth® v5.0 (Bluetooth Low Energy (BLE))

POWER

• Battery: Li-ion Battery Pack (7.2V, 2200mAh, 16Wh) (bundled) USB power supply, USB power charging, USB power delivery
• Battery life (CIPA standard): Approx. 370 images, 1,250 images (Power Save LVF mode*) with S-R2060 Approx. 370 images, 1,200 images (Power Save LVF mode*) with S-S50 *Under the test conditions specified by Panasonic based on CIPA standard. When the time to get in the sleep mode is set to 1 sec.
• Continuous recordable time (Motion picture) (*1): MP4 [4K/60p]: Approx. 90 min (APS-C), MP4 [FHD/60p]: Approx. 130 min (FULL)     *When using S-R2060 / S-S50. When the battery is fully charged.
• Actual recordable time (Motion picture) (*1): MP4 [4K/60p]: Approx. 45 min (APS-C), MP4 [FHD/60p]: Approx. 65 min (FULL)     *When using S-R2060 / S-S50. When the battery is fully charged.
• Battery grip: DMW-BGS5 (sold separately)

DIMENSIONS / WEIGHT

• Dimensions (W x H x D): Approx. 134.3 x 102.3 x 90.1 mm / 5.29 x 4.03 x 3.55 inch (Body only, excluding protrusions) Approx. 134.3 x 102.3 x 157.0 mm / 5.29 x 4.03 x 6.19 inch (with S-R2060, excluding protrusions) Approx. 134.3 x 102.3 x 151.8 mm / 5.29 x 4.03 x 5.98 inch (with S-S50, excluding protrusions)
• Weight: Approx. 740g / 1.64 lb (Body, Hot Shoe Cover, Battery, SD Memory Card x 1) (excluding body cap) Approx. 657g / 1.45 lb (Body, Hot Shoe Cover) (excluding body cap)

OPERATING ENVIRONMENT

• Operating temperature (*3): 0℃ to 40℃  (32℉ to 104℉)
• Operating humidity: 10%RH to 80％RH

About motion picture recording

• Recording stops when the continuous recording time exceeds 30 minutes in [6K/29.97p] [6K/25.00p]
• [5.9K/29.97p] [5.9K/25.00p] when Thermal Management mode is set to Standard.
• The cards that can be used for recording vary depending on the motion pictures bit rate and format type.
• Motion pictures with 72Mbps or less: SD memory card with SD Speed Class with Class 10 or Video Speed Class 10 or higher
• Motion pictures with 200Mbps or less: SD memory card with UHS-I / UHS-II UHS Speed Class 3 (U3) or Video Speed Class 30 or higher
• A new file will be created to continue recording if the continuous recording time exceeds the following conditions.
• Motion pictures with less than 72Mbps: 30 minutes
• Motion pictures with 72Mbps or more: 3 hours 4 minutes
• A new file will be created to continue recording if the file size exceeds the following conditions.
• [MP4] in [FHD]: 4GB
• [MP4] in [4K]: 96GB
• [MOV]: 192GB
• (*2) High-res audio is selectable only when attaching Φ3.5mm microphone or DMW-XLR1 (sold separately).
• (*3) About AF - Automatic Detection is not available for High Frame Rate video shooting above 60p (100p or 120p).
• Tracking and Automatic Detection are not available when using HDMI cable or USB connection cable for High Frame Rate video shooting (100p or 120p) above 60p.
• (*4) To output motion pictures with 4K or higher, use a Premium High Speed HDMI cable (Type A - Type A plug).

In The Box

• Panasonic Lumix DC-S5II Mirrorless Camera
• AC Adapter
• USB-C to USB-A Cable
• Shoulder Strap
• Body Cap
• Hot Shoe Cover
• Battery Grip Connector Cover
