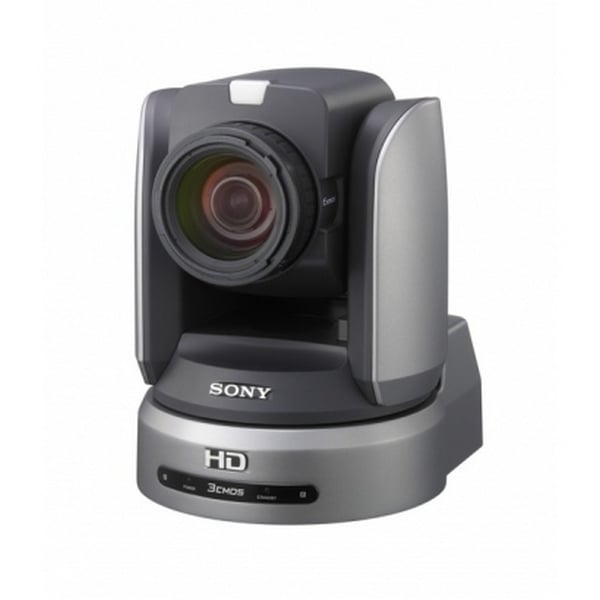

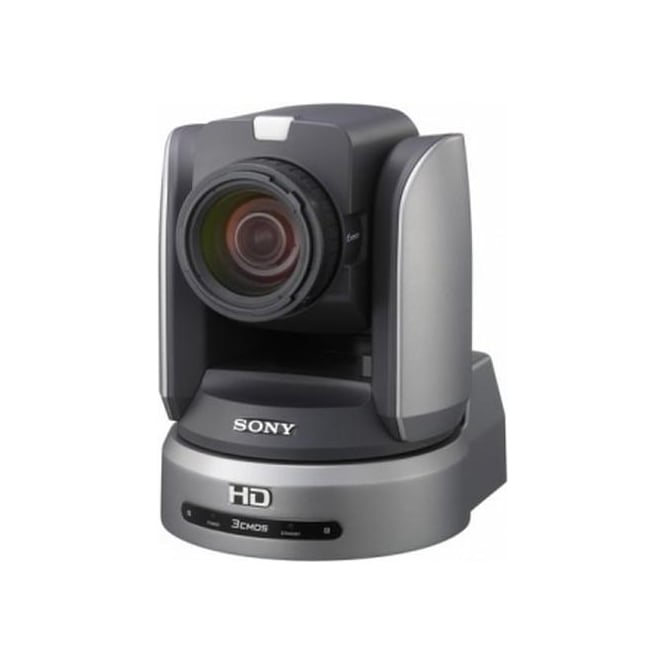

Sony 1/2 Type 3CMOS Full-HD Colour Video Camera

Sony BRC-H900 (BRC/H900, BRC_H900, BRC H900) 1/2 Type 3CMOS Full-HD Colour Video Camera

The BRC-H900 remote studio camera combines uncompromising broadcast picture quality with the flexibility of PTZ operation.

Designed for unattended operation, this compact but powerful robotic camera is an ideal complement to other broadcast cameras for capturing images in hard-to-reach or unobtrusive positions. It's equally at home in TV newsrooms, remote studios and on-air suites, auditoriums, houses of worship, courtrooms or outdoor sports events.

The sensitive ½-type Exmor 3CMOS image sensor captures detail-packed Full HD footage with low noise and a wide dynamic range. Smooth, speedy remote PTZ with 14x optical zoom and on-board image stabilisation accommodates wide-angle scenes and tightly framed close-ups. Broadcast-friendly features include dual tally lamps for on-air operation, while operational flexibility is enhanced with options for ceiling, table top or tripod mounting.

There’s also a broad range of video interface and remote control possibilities, simplifying smooth integration into any broadcast or professional AV environment.

• Tilt Angle: -30 to +90 degrees
• Tilt Speed: 0.22 to 60 degrees/sec
• Analogue Output: RGB / Y/Pb/P (D-sub 15-pin), Y/C, Composite
• Angle of View (H): 59.6 degrees (Wide End)
• Backlight Compensation: On/Off
• Built-In Video Output: SDI (HD/SD Selectable), D-sub 15 pin: HD video out, Y/Pb/Pr or RGB, HD, VD or SYNC, Y/C, Composite
• CCD Effective Pixels: Approx. 2.07 mega pixels (CMOS)
• Camera Control Interface: Mini DIN 8 pin: RS-232C (VISCA In/Out), Connector plug 9 pin: RS-422 (VISCA In/Out)
• Effective Pixels: Approx. 2 Megapixels
• Focal Length: f=5.8 to 81.2 mm (F1.9 to F2.8)
• Focus System: Auto/Manual
• Gain: Auto/Manual (-3 to 24 dB)
• Horizontal Resolution: 1000 TV lines
• Image Device: 1/2-type Exmor 3CMOS image sensor
• Image Flip: On/Off
• Lens: 14x Optical Zoom
• Minimum Illumination: 4 lx (50 IRE, F1.9, +24 dB)
• Minimum Object Distance: 300 mm (Wide), 800 mm (Tele)
• Optical Image Stabilizer: On / Off
• Pan Angle: -170 to + 170 degrees
• Pan/Tilt Angle: -170 to +170 degrees (Pan), -30 to +90 degrees (Tilt)
• Pan/Tilt Speed: 0.22 to 60 degrees (Pan/Tilt)
• Preset Positions: 16 Positions
• S/N Ratio: 50 dB
• Shutter Speed: 1/8000 to 1/60 s or 1/8000 to 1/50 s
• Signal System: 1080/59.94i, 720/59.94p, NTSC, 1080/50i, 720/50p, PAL
• Storage Temperature: -20 degrees to 60°C (-4°F to 104°F)
• Synchronization: Internal/External
• Video Output: HD: SDI (HD/SD Switchable) + D-Sub 15 pin: Component (Y/Pb/Pr) or RGB, HD, VD or SYNC
• SD: Composite, Y/C
• White Balance: Auto/Indoor/Outdoor/One-push/Manual
• Power Consumption: Max 28.8W (without optional cord), Max 34.2W (with optional cord)
• Power Requirements: DC: 10.8V to 13.2V
• Operating Temperature: 32 to 104 ˚F (0 to 40 ˚C)
• Dimensions (WxDxH): 19.8 cm x 23.8 cm x 26.0 cm
• Weight: 5.0 kg

In the box

• Sony BRC-H900 1/2" HD 3CMOS Remote PTZ Camera
• IR Remote Commander Unit (Requires 2 x AA Batteries, Not Included)
• AC Power Adapter
• AC Power Cord
• DC Cord Secure Connection Attachment
• RS-422 Connector Plug
• Ceiling Bracket A
• Ceiling Bracket B
• Wire Rope
• 7 x Screws (M3 x 8)
• Screws (M4 x 8)
• Operating Instructions
