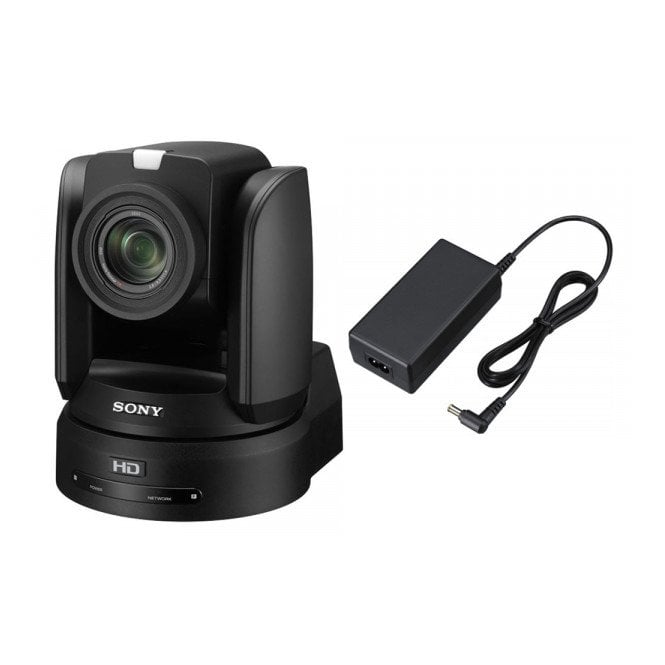

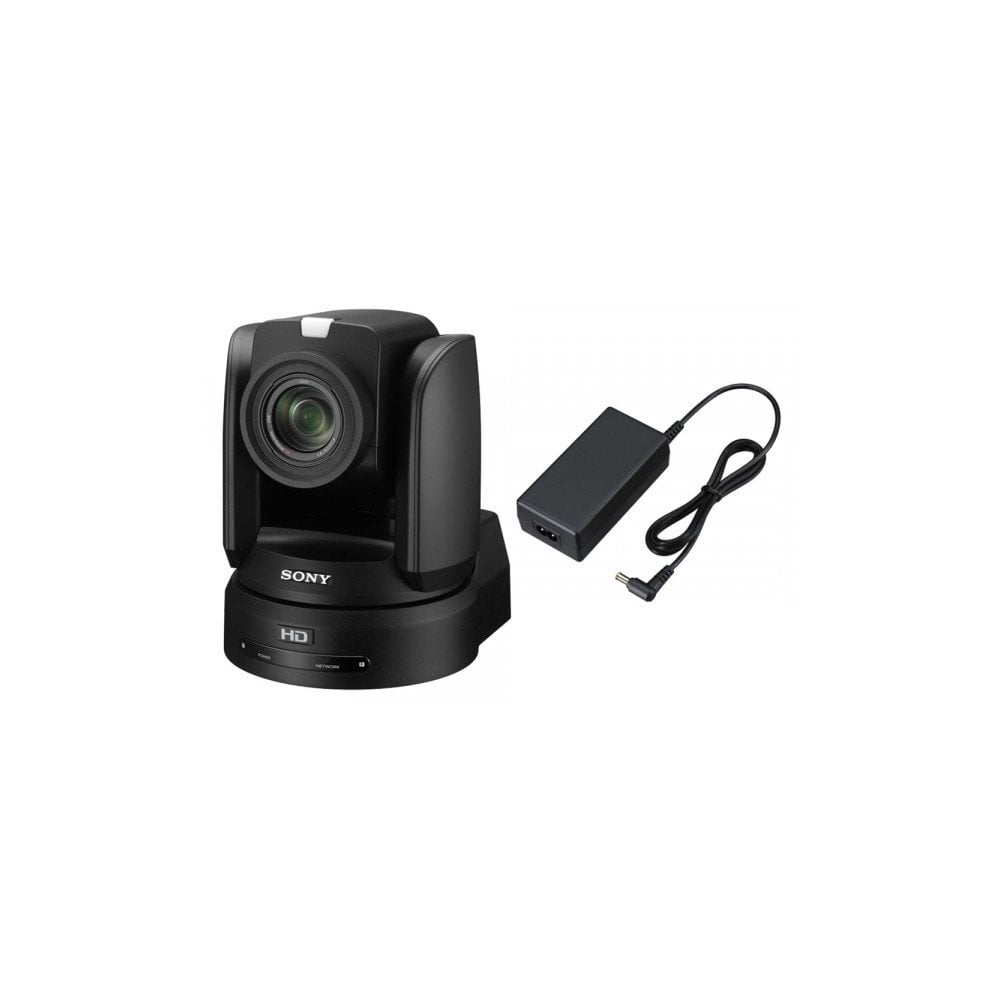

Sony HD PTZ camera with 1" Exmor R CMOS sensor Incl power supply unit (Black)

Sony BRC-H800/AC (BRC_H800/AC, BRC/H800/AC, BRC H800 AC) HD PTZ camera with 1" Exmor R CMOS sensor Incl power supply unit (Black)

The BRC-H800 remote camera combines uncompromising broadcast picture quality and smooth, silent PTZ operation with the flexibility of 3G-SDI and HDMI connections.

Designed for unattended operation, this compact but powerful robotic camera is an ideal complement to other broadcast cameras for capturing images in hard-to-reach or unobtrusive positions. It's equally at home in TV newsrooms, remote studios and on-air suites, auditoriums, houses of worship, courtrooms or sports stadiums. It's also particularly suited to efficient multi-camera set-ups, under the control of a single operator.

The 1-inch type Exmor R CMOS image sensor captures crisp, low-noise Full HD images at 60p, with excellent low-light sensitivity. The large image sensor also allows the creation of beautiful 'bokeh' effects with a shallow depth of field to suit any artistic intention.

Speedy, near-silent PTZ operation with 12x optical zoom accommodates wide-angle scenes and tightly framed close-ups, with Clear Image Zoom 24x(HD) extending this range even further without visible loss of resolution. Broadcast-friendly features include dual tally lamps for on-air operation, while operational flexibility is enhanced with options for ceiling, table top or tripod mounting. There’s also a broad range of video interfacing and remote control possibilities - plus support for PoE+ and genlock - for smooth integration into any broadcast, professional or corporate AV environment.

• Image Sensor: 1-type Exmor R CMOS
• Image Sensor (Number of Effective Pixels): Approx. 14.2 Megapixels
• Signal System: 1080/59.94P,1080/59.94I,720/59,94P, 1080/50P,1080/50I, 720/50P
• Minimum Illumination: 1.7Lx, (50IRE, 1/30s, Iris/Gain Auto)
• Gain : Auto/Manual (-3dB to +33dB)
• Shutter Speed: 1/10000s to 1/8 (59.94/29.97), 1/10000s to 1/6 (50/25)
• Exposure Control: Auto, Manual, Priority mode (shutter priority, iris priority, gain priority), EV compensation, Back light, Spot light
• White Balance: Auto1/Auto2/One Push/Indoor/Outdoor/Manual
• Optical Zoom: 12x
• Clear Image Zoom: 2x
• Focusing System: Auto/Manual
• Horizontal Viewing Angle: 64.6° (Wide-end)
• Focal Length: f=9.3 to 111.6mm , F2.8(Wide) ,F4.5(Tele)
• Pan/Tilt Angle: Pan: ±170°, Tilt: +90°/-30°
• Pan/Tilt Speed: Pan: 0.3° to 60°/s, Tilt: 0.3° to 60°/s
• Preset Position: 16*
• Day/Night: Yes
• Flicker Cancel: On/Off
• 4K Video Output: No
• HD Video Output: 3G-SDI x2 and HDMI
• Camera Control Interface: RS-422(VISCA), VISCA Over IP
• External Sync. Input: Yes
• Power Requirements: DC 10.8V to 13.2V, PoE+(IEEE802.3at compliant)
• Operating Temperature: 0 °C to 40 °C, 32 °F to 104 °F
• Dimensions (W x H x D)*1: Approx. 198 x 260 x 238mm , (without projecting object)
• Approx. 7 7/8 x 10 1/4 x 9 3/8 inch , (without projecting object)
• Mass: Approx. 4.3kg, Approx. 9 lb 7.7oz
• Body Color: Black
• Ceiling Mount: Yes

In the box

• 1x Sony BRC-H800 HD Camera
• 1x AC Adapter
