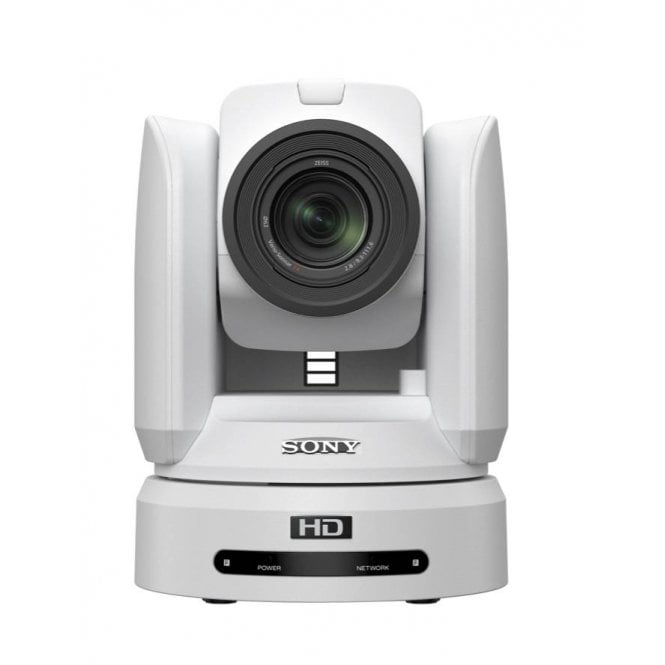

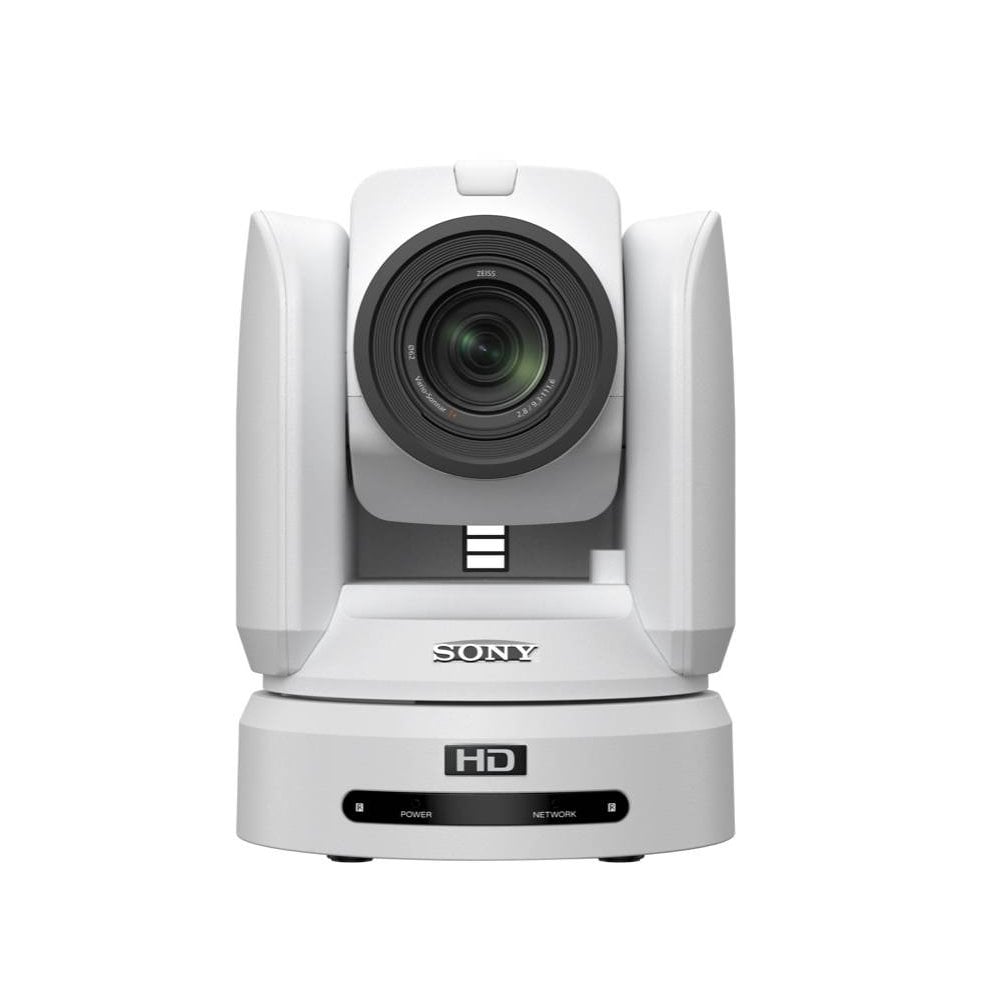

Sony HD PTZ camera with 1" Exmor R CMOS sensor incl power supply unit (White)

code: BRC-H800W/AC
  • £5,393.30
  • RRP: £5,945.00
Status | Usually dispatched within 24 hours
Loading...

Features

  • Full HD broadcast quality images at 59.94p
  • Cinematic 24p pictures
  • High sensitivity in low light situations
  • High-quality 12x optical zoom and 24x clear image zoom (HD)
  • Flexible Installation
  • Remote-controlled operation
  • RCP / MSU connection options
  • Tally lamps at the front and back

Sony BRC-H800W/AC (BRC/H800W/AC, BRC_H800W_AC, BRC H800W AC) HD PTZ camera with 1" Exmor R CMOS sensor incl power supply unit (White)

The BRC-H800 remote camera combines uncompromising broadcast picture quality and smooth, silent PTZ operation with the flexibility of 3G-SDI and HDMI connections.

Designed for unattended operation, this compact but powerful robotic camera is an ideal complement to other broadcast cameras for capturing images in hard-to-reach or unobtrusive positions. It's equally at home in TV newsrooms, remote studios and on-air suites, auditoriums, houses of worship, courtrooms or sports stadiums. It's also particularly suited to efficient multi-camera set-ups, under the control of a single operator.

The 1-inch type Exmor R CMOS image sensor captures crisp, low-noise Full HD images at 60p, with excellent low-light sensitivity. The large image sensor also allows the creation of beautiful 'bokeh' effects with a shallow depth of field to suit any artistic intention.

Speedy, near-silent PTZ operation with 12x optical zoom accommodates wide-angle scenes and tightly framed close-ups, with Clear Image Zoom 24x(HD) extending this range even further without visible loss of resolution. Broadcast-friendly features include dual tally lamps for on-air operation, while operational flexibility is enhanced with options for ceiling, table top or tripod mounting. There’s also a broad range of video interfacing and remote control possibilities - plus support for PoE+ and genlock - for smooth integration into any broadcast, professional or corporate AV environment.

  • Image Sensor: 1-type Exmor R CMOS
  • Image Sensor (Number of Effective Pixels): Approx. 14.2 Megapixels
  • Signal System: 1080/59.94P,1080/59.94I,720/59,94P, 1080/50P,1080/50I, 720/50P
  • Minimum Illumination: 1.7Lx, (50IRE, 1/30s, Iris/Gain Auto)
  • Gain : Auto/Manual (-3dB to +33dB)
  • Shutter Speed: 1/10000s to 1/8 (59.94/29.97), 1/10000s to 1/6 (50/25)
  • Exposure Control: Auto, Manual, Priority mode (shutter priority, iris priority, gain priority), EV compensation, Back light, Spot light
  • White Balance: Auto1/Auto2/One Push/Indoor/Outdoor/Manual
  • Optical Zoom: 12x
  • Clear Image Zoom: 2x
  • Focusing System: Auto/Manual
  • Horizontal Viewing Angle: 64.6° (Wide-end)
  • Focal Length: f=9.3 to 111.6mm , F2.8(Wide) ,F4.5(Tele)
  • Pan/Tilt Angle: Pan: ±170°, Tilt: +90°/-30°
  • Pan/Tilt Speed: Pan: 0.3° to 60°/s, Tilt: 0.3° to 60°/s
  • Preset Position: 16*
  • Day/Night: Yes
  • Flicker Cancel: On/Off
  • 4K Video Output: No
  • HD Video Output: 3G-SDI x2 and HDMI
  • Camera Control Interface: RS-422(VISCA), VISCA Over IP
  • External Sync. Input: Yes
  • Power Requirements: DC 10.8V to 13.2V, PoE+(IEEE802.3at compliant)
  • Operating Temperature: 0 °C to 40 °C, 32 °F to 104 °F
  • Dimensions (W x H x D)*1: Approx. 198 x 260 x 238mm , (without projecting object)
  • Approx. 7 7/8 x 10 1/4 x 9 3/8 inch , (without projecting object)
  • Mass: Approx. 4.3kg, Approx. 9 lb 7.7oz
  • Body Color: White
  • Ceiling Mount: Yes

In the box

  • 1x Sony BRC-H800W/AC HD Camera
  • 1x AC Adapter
