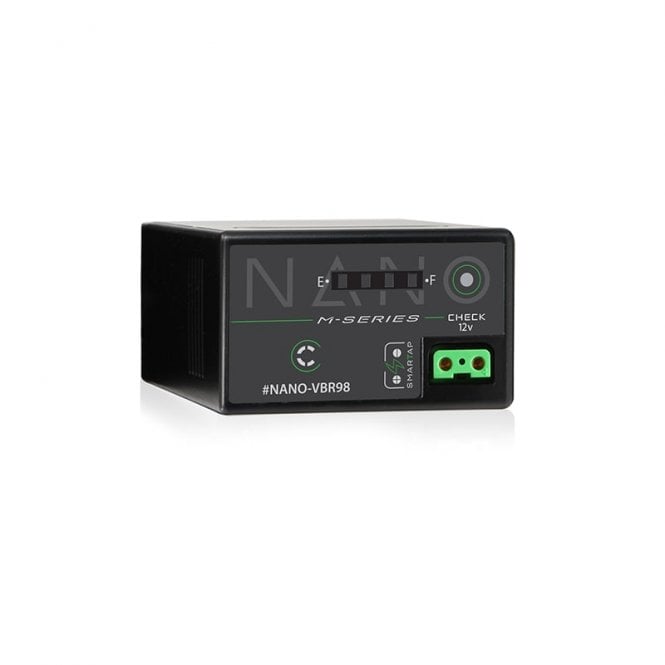

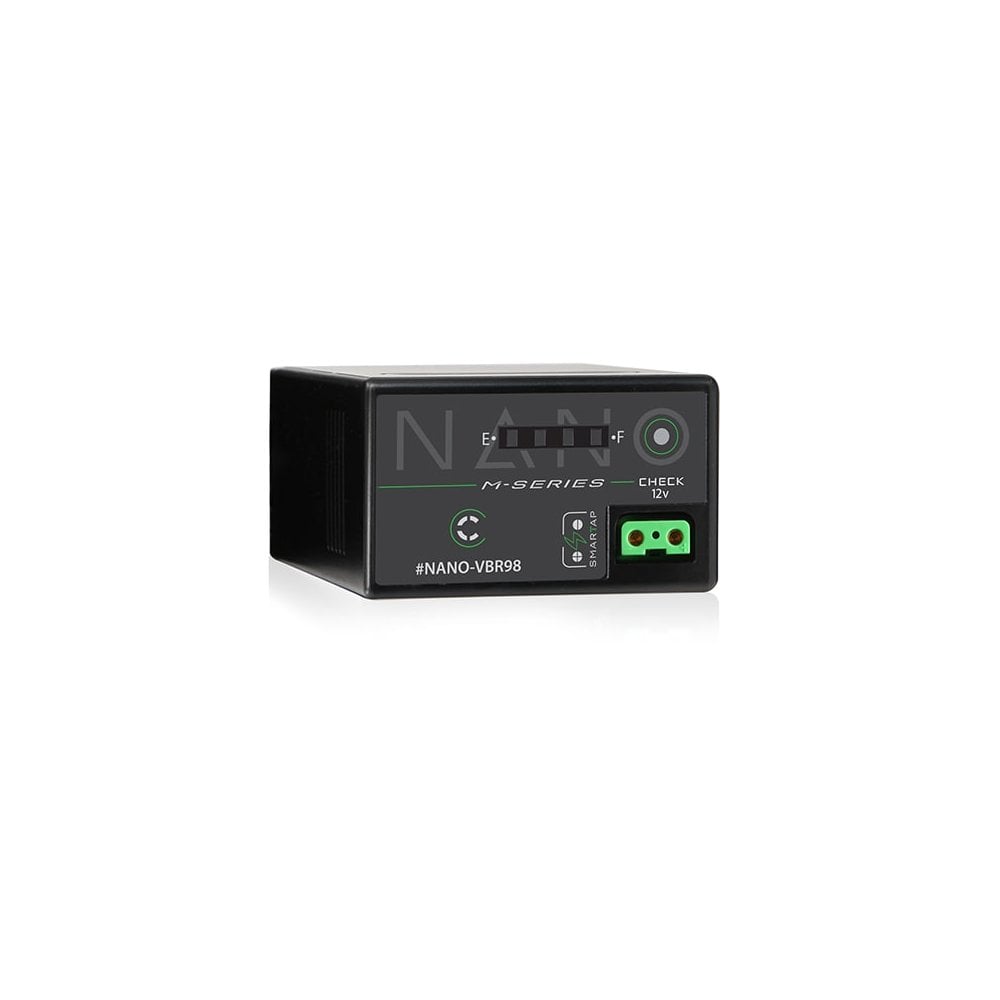

Core SWX Nano-VBR98

CoreSWX CORE-NANO-VBR98 (CORE NANO VBR98, CORE_NANO_VBR98, CORE/NANO/VBR98) 98wh 7.4v 13200mah HDV Battery w/ 4 LED Gauge with 12v PowerTap for Select Panasonic Camcorders

The Nano-M series addresses the need for a more “pro” style option of power for Small Form Cine cameras.

The Nano-VBR98 is specifically designed for select Panasonic Camcorders such as the Panasonic EVA1. They are equipped with a 4-stage LED gauge and a P-tap.

The P-Tap is a Smart Tap that is able to carry SMBUS/smart battery data which is a feature part of future integration.

This power tap will serve as a standard powertap without need of special cabling.

These packs charge on OEM Panasonic chargers.

98wh 7.4v, 13200mah HDV Battery w/ 4 LED Gauge with 12v PowerTap for Select Panasonic Camcorders

4-stage LED gauge

P-Tap that is able to carry SMBUS/smart battery data which is a featured part of future integration

SPECIFICATIONS

Capacity: 98wh (7.4v, 13200mah)

Powertap Output: 12vdc (2A/24watt max)

Size: 4″ x 2.6″ x 1.65″

Weight: 0.9lbs

Normal Runtime: 5hrs. based off of Panasonic EVA1 draw
