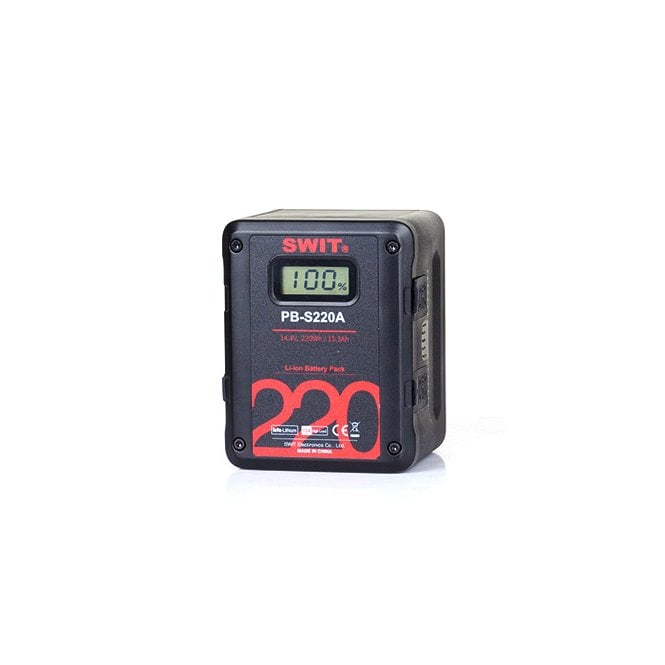

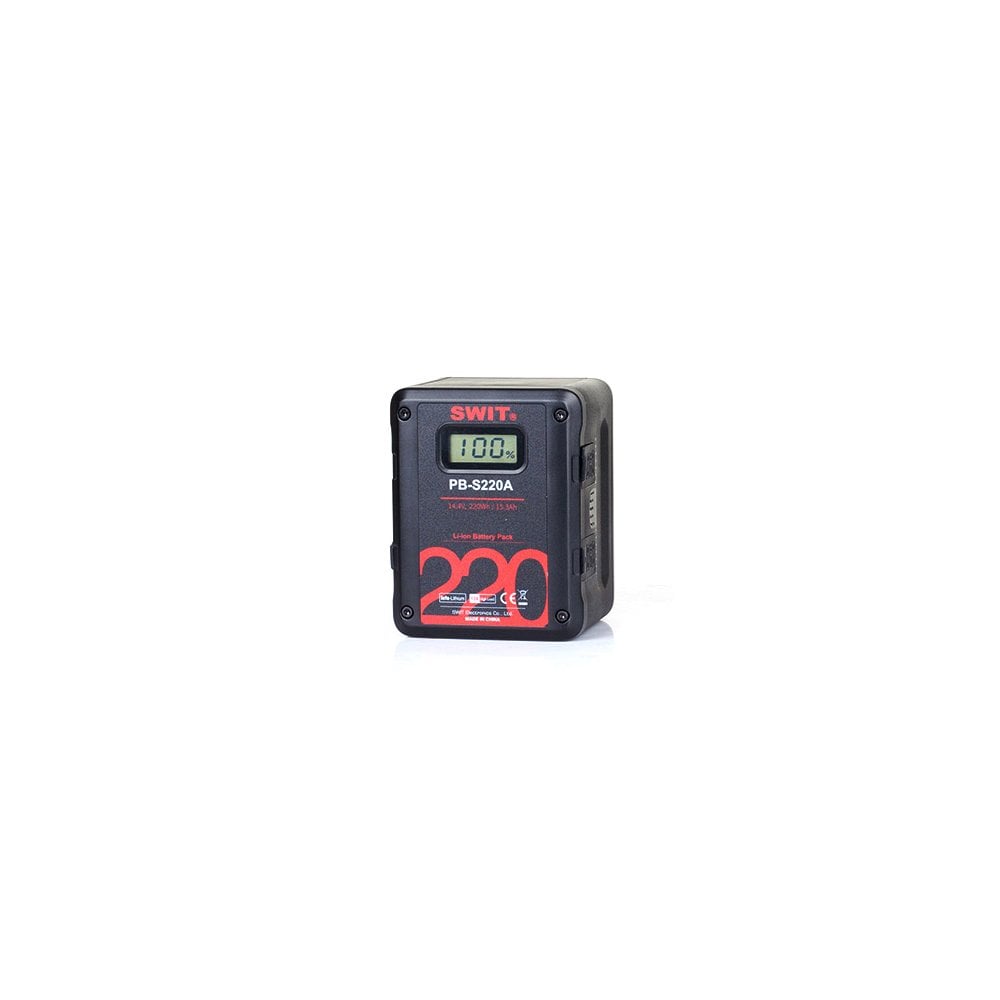

Swit PB-S220A 220Wh Multi-sockets Square Digital Battery Pack

code: PB-S220A
  • £299.00
Status | Usually dispatched within 24 hours
Loading...

Features

  • Square shape design for Cine-cameras
  • Max 150W, 12A high load
  • 4× D-tap output sockets
  • 1× USB 5V/2A power output sockets
  • 6A fast charging by charger S-3812S
  • LCD display accurate remaining run time
  • Display power info in both SONY & RED
  • Multiple circuit protections

Swit PB-S220A (PB_S220A, PB/S220A, PB S220A) 220Wh Multi-sockets Square Digital Battery Pack

PB-S series camera batteries are compact designed, shorter than normal batteries, and match perfectly with most of the Cine-cameras. Consists of 24pcs of high class 18650 battery cells, nominal voltage is 14.4V and reaches 220Wh / 15.3Ah high capacity. Can run approx 7 hours for normal ENG cameras and approx 2.5 hours for ARRI ALEXA.

Normal Li-ion batteries offer 100W/8A output and suitable for most ENG cameras, but the Cine Cameras such as ALEXA require around 85W high draw which is too heavy for the normal Li-ion batteries: the battery life will be reduced if long time full draw powering. Moreover, if there’re monitor, wireless system work together, and total power will be above 110W, and the normal batteries cannot draw completely.

Using PB-S220A high-load battery, you can get MAX 150W/12A constant power output, which can drive more high power cameras, LCD Monitor and other equipments easily, and won’t reduce battery life during long time high power output.

PB-S220A is equipped with 4 D-tap DC output sockets, Max total load is 120W/10A, which can power other on-camera equipments together.

PB-S220A is equipped with 1x USB 5V/2A output, which can be used to charge mobile phones, tablets and other portable devices.

PB-S220A supports 6A fast charging by SWIT S-3812 fast charger, to save more than 50% charging time. The 220Wh PB-S220A battery can be charged from 0 to 80% after 2.3 hours, and fully charged within 3.5 hours.

The build-in LCD can displays remaining power percentage, remaining working time, low power warning, and battery cycle times, and support viewfinder info display on both SONY and RED cameras.

  • Battery plate: Gold-mount
  • Nominal voltage: 14.4V
  • Capacity: 220Wh,15.3Ah

Max output

  • Electrodes: 150W,12A
  • D-TAP: 120W,10A
  • USB: 10W,5V/2A
  • In total: 150W
  • Dimension: 121×95×99mm
  • Net weight: 1.435kg
  • Max charging current: 6A
  • D-TAP socket number: 4
  • USB socket number: 1

In the box

  • PB-S220A 220Wh Multi-sockets Square Digital Battery Pack
