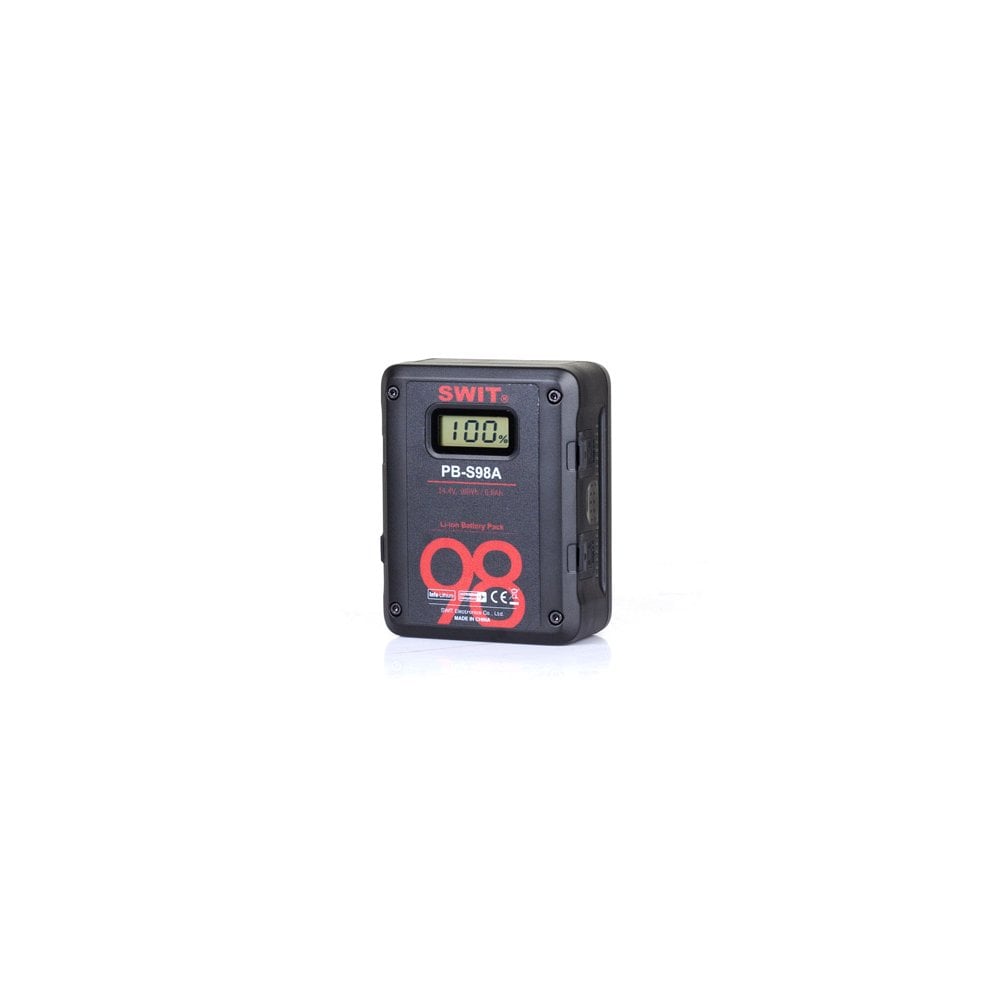

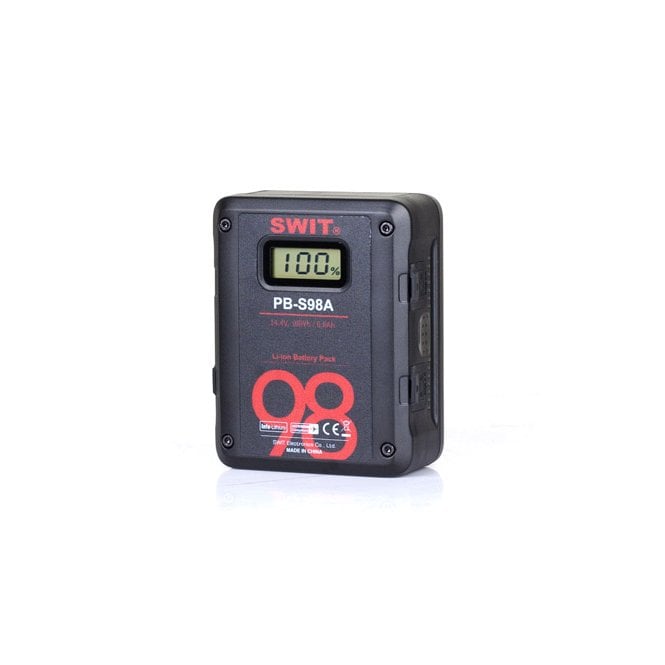

Swit PB-S98A 98Wh Multi-sockets Square Digital Battery

code: PB-S98A
  • £183.00
  • RRP: £184.00
Status   |   Usually dispatched within 24 hours
Loading...

Features

  • Square shape design for Cine-cameras
  • Max 100W, 8A load
  • 2× D-tap output sockets (Max 100W/8A in total)
  • 1× USB 5V/2A power output sockets
  • LCD display accurate remaining run time
  • Display power info in both SONY & RED
  • Multiple circuit protections

Swit PB-S98A (PB_S98A, PB/S98A, PB S98A) 98Wh Multi-sockets Square Digital Battery

PB-S series camera batteries are compact designed, shorter than normal batteries, and match perfectly with most of the Cine-cameras. Consists of 12pcs of high class 18650 battery cells, nominal voltage is 14.4V and reaches 98Wh / 6.6Ah high capacity. Can run approx 3 hours for normal ENG cameras.

PB-S98A is equipped with 2 D-tap DC output sockets, which can power other on-camera equipments together. The Max output current of D-tap is 8A, 100W. PB-S98A is equipped with 1x USB 5V/2A output, which can be used to charge mobile phones, tablets and other portable devices.

The build-in LCD can displays remaining power percentage, remaining working time, low power warning, and battery cycle times, and support viewfinder info display on both SONY and RED cameras.

  • Battery plate: Gold-mount
  • Nominal voltage: 14.4V
  • Capacity: 98Wh,6.8Ah

Max output

  • Electrodes: 100W,8A
  • D-TAP: 100W,8A
  • USB: 10W,5V/2A
  • In total: 100W
  • Dimension: 121×95×59mm
  • Net weight: 0.809kg
  • Max charging current: 3A
  • D-TAP socket number: 2
  • USB socket number: 1

In the box

  • PB-S98A 98Wh Multi-sockets Square Digital Battery
