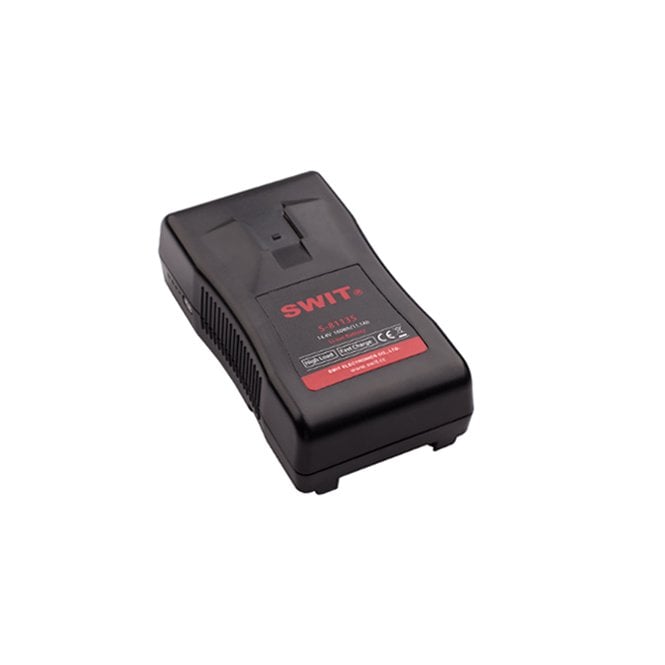

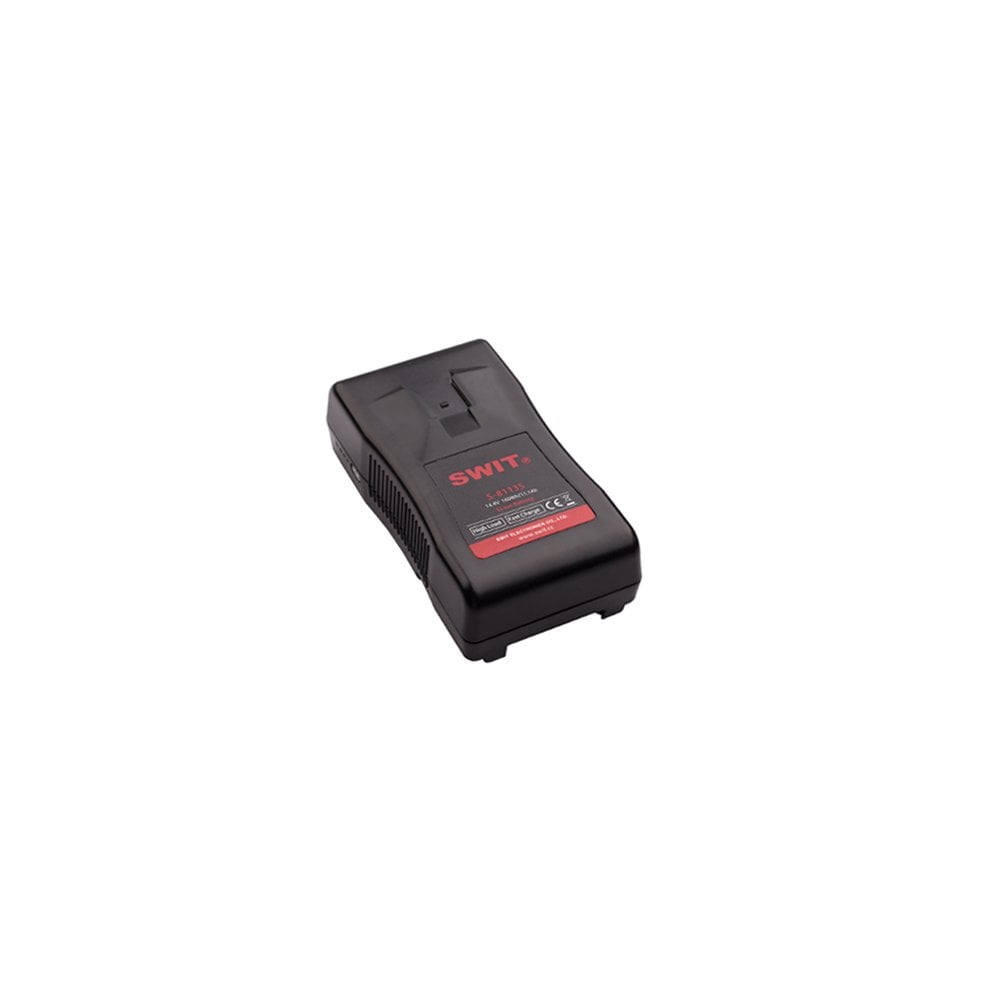

Swit S-8113S 160Wh V-mount Battery

code: S-8113S
  • £206.25
Status | Usually dispatched within 24 hours
Loading...

Features

  • Li-ion, 14.4V, 160Wh large capacity
  • Max 150W, 12A constant output
  • D-tap output socket
  • 4-level LED power indicator
  • V-mount connection
  • Multiple circuit protections

Swit S-8113S (S_8113S, S/8113S, S 8113S) 160Wh V-mount Battery

Normal Li-ion batteries offer 100W/8A output and suitable for most ENG cameras, but the Cine Cameras such as ALEXA require around 85W high draw which is too heavy for the normal Li-ion batteries: the battery life will be reduced if long time full draw powering. Moreover, if there’re monitor, lighting work together, and total power will be above 100W, and the normal batteries can not draw completely.

Using S-8113S high-load battery, you can get MAX 150W/12A constant power output, which can drive more high power cameras, lightings and other equipments easily, and won’t reduce battery life during long time high power output.

160Wh / 11.1Ah High Capacity

  • Consists of 16pcs 18650 battery cells, and reaches 160Wh/11.1Ah high capacity. run approx 5 hours for normal 30W ENG cameras.

6A Fast Charging

  • S-8113S supports 6A fast charging, to save more than 50% charging time, can be charged from 0 to 80% after 1.5 hours, and fully charged within 2.5 hours.

Build-in D-tap DC Output Socket

  • A D-tap DC output socket is equipped on the top side of S-8113S
  • battery, for DC14.4V (Nominate) connection, such as on-camera lights, monitors, wireless transmitter, etc..
  • The Max Power from D-tap is 120W, 10A.

4-level LED Power Indicator

  • On the side of the battery, there’re 4-level LED power indicators to check the battery remaining capacity. You can get a quick view of capacity before using.



  • Nominal Voltage: 14.4V
  • Capacity: 160Wh/11.1Ah
  • Max output power: 150W
  • Max output current: 12A
  • Mount Type: V-mount
  • Operation Temperature: 0-40°C
  • Net weight: Approx 0.9kg
  • Dimensions: 165×90×51mm

In the box

  • S-8113S 160Wh V-mount Battery
Be the first to review Swit S-8113S 160Wh V-mount Battery. Write a review ›
