Swit S-3822S 2-Channel V-mount Charger

code: S-3822S
  • £347.75
Status | Usually dispatched within 24 hours
Loading...

Features

  • Charging V-mount batteries
  • 2-ch simultaneous charging
  • 3A charging current per channel
  • LED charging indicators
  • Support AC to 4-pin XLR output
  • Light weight and portable

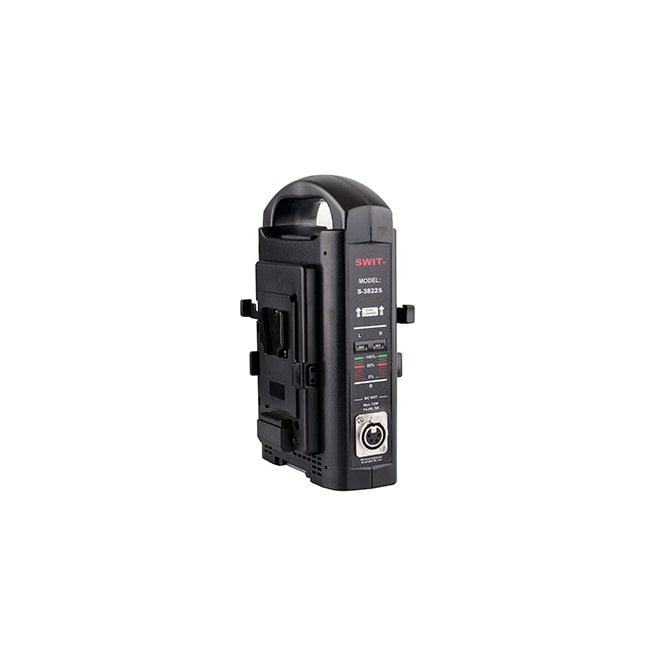

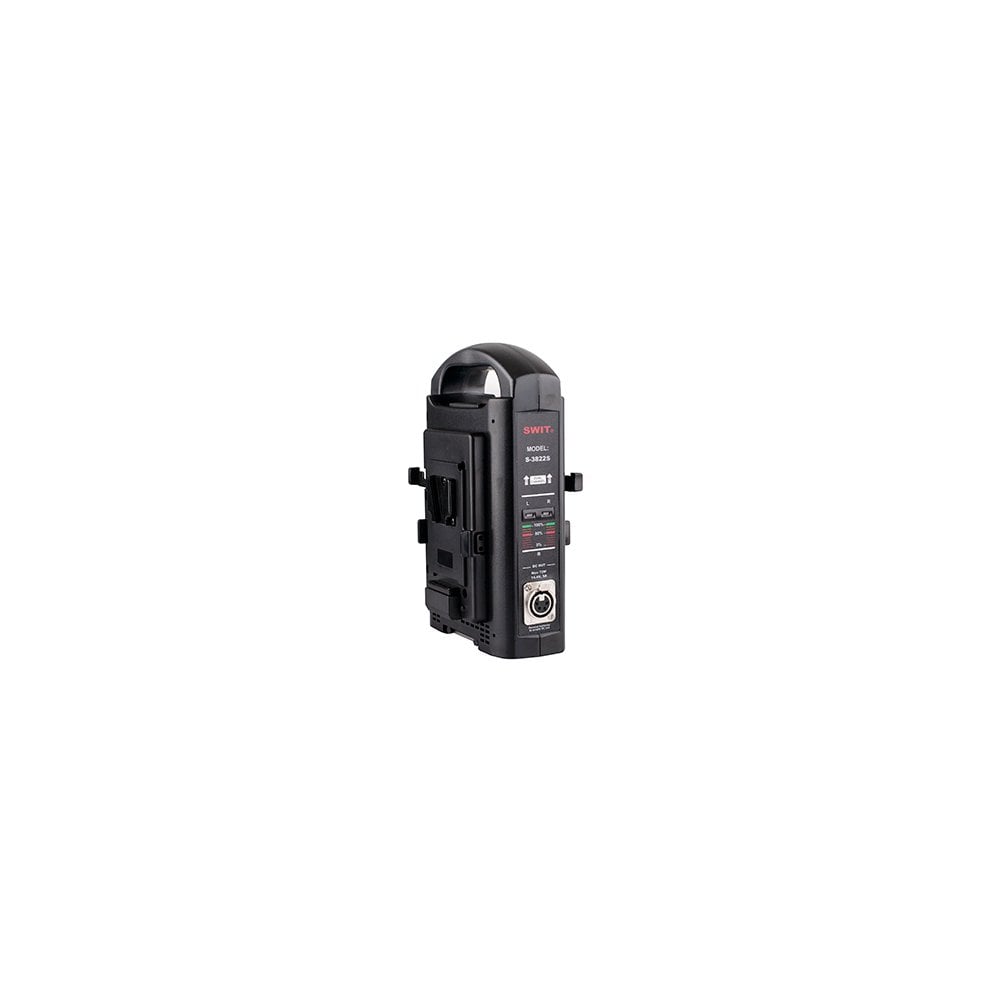

Swit S-3822S (S_3822S, S/3822S, S 3822S) 2-Channel V-mount Charger

The portable charger S-3822S can charge 2 V-mount batteries simultaneously. The charging output is DC 16.8V, 3A×2.

2-ch Simultaneous Charger

  • Charging current: 3A per channel.

LED Charging Indicators

  • S-3822S has LED charging indicators on the front panel, indicates the real time capacity of each channel by different colours: Display Red: Battery is charging, capacity below 80%; Display Yellow: Battery is charging, capacity above 80%; Display Green: Charging finished.

AC-DC Adapting Output

  • S-3822S has a 4-pin XLR female connector on the front panel. Connected with SWIT S-7102 XLR female to male cable (optional purchase), the S-3822S can be used as AC-DC adaptor of DC 14.4V, 5A, 72W output.
  • Please note the AC-DC adapting output will not work when battery is charging.

Optimal Charging Curve

  • Li-ion charging follows a two-period approach. The first period is constant-current. The battery is charged at the maximum charging rate. When the battery reaches a specified set-point voltage, charging circuits switch to the second period: the constant-voltage period. The charging circuit will provide only enough current to maintain the voltage, to prevent the battery from over charging.

Multiple Safety Protection Design

  • SWIT charger can identify different chemical types of batteries, and provide the correct charging program, to protect the batteries from over current, over charging, high temperature, etc.
  • Input: 100~240V, 50/60Hz
  • Power consumption: Max136W
  • Charging output: DC 16.8V, 3A×2-ch
  • Adapting output: DC 14.4V, 5A
  • Working temperature: 0°C~+40°C
  • Working humidity: 10%~90%
  • Dimensions: 228mm×140mm×120mm
  • Weight: Approx. 1.0kg

In the box

  • S-3822S 2-Channel V-mount Charger
