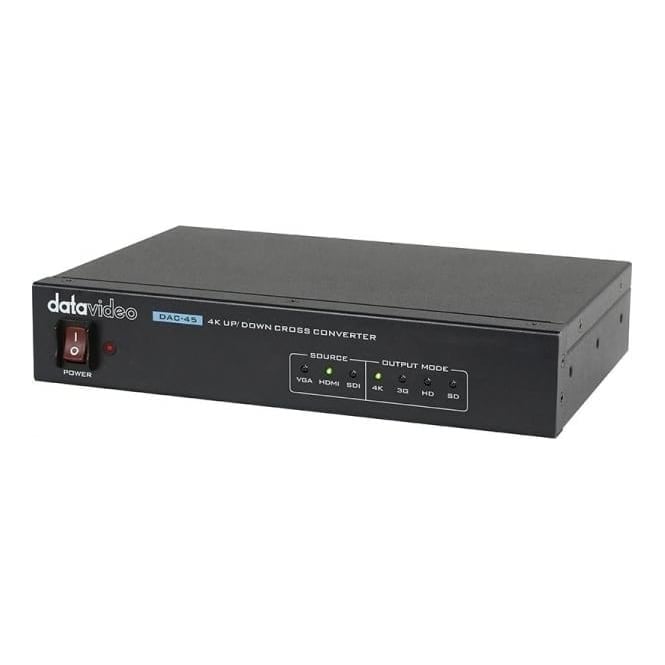

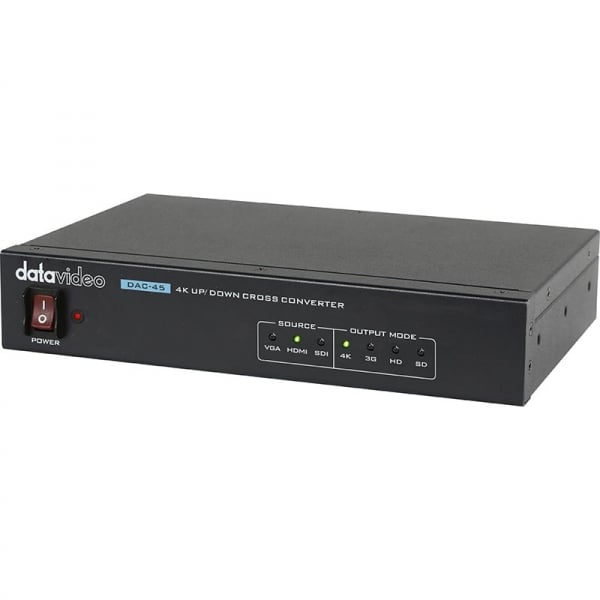

Datavideo Dac45 4K up/down/Cross Converter

DataVideo Dac45 4K up/down/Cross Converter(DATA-DAC45, DATA_DAC45, DATA/DAC45)

The Datavideo DAC-45 4K Up/Down Cross Converter is the successor to the popular DAC-70. It has all the same features plus 4K HDMI support and genlock. A built-in super resolution engine allows you to up-convert resolutions as low as 720 x 480 all the way up to Ultra HD 4K.

The DAC-45 lets you convert video signals from VGA, HDMI, and SDI inputs (with audio) to 4K HDMI or 3G-SDI output. It also allows instant and automatic switching between 4K, HD, and SD formats when the video input changes.

The DAC-45 Center Utility software is also provided to you as a free download from Datavideo's website. This application lets you designate various video and audio settings as well as obtain device information.

Inputs 1 x 3G/HD/SD-SDI

1 x HDMI

1 x VGA

2 x RCA (unbalanced audio L/R)

1 x reference input

Outputs 1 x 3G/HD/SD-SDI

1 x HDMI

Firmware Updates 1 x mini-USB

Power Input DC jack

Supported Video Input Formats SDI (YUV)

1080p60/59.94/50

1080p30/29.97/25/24/23.98

1080psf30/29.97/25/24/23.98

1080i60/59.94/50

720p60/59.94/50

625i

525i

HDMI (YUV / RGB)

3840 x 2160p60/59.94/50

3840 x 2160p30/29.97/25/24/23.98

1080p60/59.94/50

1080p30/29.97/25/24/23.98

1080psf30/29.97/25/24/23.98

1080i60/59.94/50

720p60/59.94/50

480p, 576p, 480i, 576i

1600 x 1200 at 60 Hz

1400 x 1050 at 60 Hz

1366 x 768 at 60 Hz

1280 x 1024 at 60 Hz

1024 x 768 at 60 Hz

800 x 600 at 60 Hz

VGA (RGB)

1920 x 1080 at 60 Hz

1600 x 1200 at 60 Hz

1400 x 1050 at 60 Hz

1366 x 768 at 60 Hz

1280 x 1024 at 60 Hz

1280 x 720 at 60 Hz

1024 x 768 at 60 Hz

800 x 600 at 60 Hz

Supported Video Output Formats SDI (YUV)

1080p60/59.94/50

1080p30/29.97/25/24/23.98

1080i60/59.94/50

720p60/59.94/50

625i

525i

HDMI (YUV)

3840 x 2160p60/59.94/50

3840 x 2160p30/29.97/25/24/23.98

1080p60/59.94/50

1080p30/29.97/25/24/23.98

1080i60/59.94/50

720p60/59.94/50

576p

480p

576i

480i

Video Processing SDI: YUV 4:2:2

HDMI: YUV 4:2:2, YUV 4:4:4, RGB 4:4:4, YUV 4:2:0 (4K only)

Supported Audio Input Formats Unbalanced Audio L/R: Stereo audio

SDI Embedded Audio: Up to 8-ch, 48 kHz, PCM audio

HDMI Embedded Audio: Up to 8-ch, 44.1/48/96 kHz, PCM audio

Supported Audio Output Formats SDI Embedded Audio: Up to 8-ch, 48 kHz, PCM audio

HDMI Embedded Audio: Up to 8-ch, 48 kHz, PCM audio

Frame Delay I: 2-3 fields

P: 0-1 frames

Power Supply 12 VDC, 1 A (9.4 W)

Operating Temperature 32 to 104°F (0 to 40°C)

Humidity 10 to 80%

Certification CE, FCC

Dimensions 8.6 x 5.5 x 1.6" (22 x 14 x 4 cm)

Weight 2.2 lb (1 kg)

Packaging Info

Package Weight 3.2 lb

Box Dimensions (LxWxH) 11.5 x 9.8 x 4.1"

In the Box

Datavideo DAC-45 4K Up/Down Cross Converter

12 VDC Power Adapter
