Beachtek DXA-BMD (DXABMD DXA BMD DXA/BMD) Black Magic Camera Adapter
The Beachtek DXA-BMD is a two-channel, passive audio adapter for connecting professional audio gear from boom mics, wireless mic and mixing boards to the Blackmagic Cinema Camera.
The DXA-BMD uses exceptionally low noise, wide bandwidth, balancing transformers for pure, clean audio with no electronics to get in the way. This allows you to record high quality audio directly to the camera which will always be in sync with the video. Direct audio recording eliminates the need to have a separate audio recording device and syncing the audio in post editing.
Built-in VU meters makes it easy to verify the proper signal levels at a glance, while the level controls allow you to quickly adjust the output signals for optimum recording – no need to fiddle with camera menus. The built-in phantom power feature powers professional boom mics requiring 48 volts to operate.

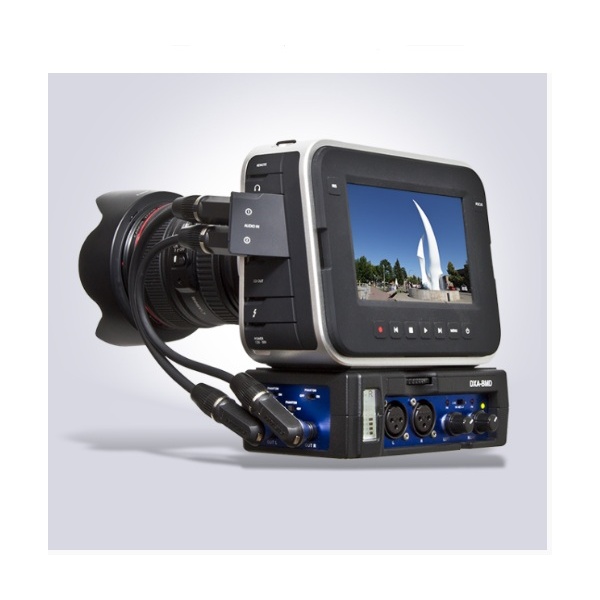

The adapter mounts neatly to the bottom of the camera and can also be mounted to any standard tripod.
IN THE BOX:
1X ADAPTER 2X 1/4" TRS BALANCED OUTPUT CABLES 1X OPERATING MANUAL 1X TWO YEAR WARRANTY
FEATURES:
Inputs
Two balanced Neutrik XLR connectors
Outputs
Two balanced TRS 1â„4†jacks for connection to the camera
VU Meter
Easy to read level meters indicate proper signal level for each channel Level Controls Adjusts signal level output on each channel Phantom Power Provides 12 or 48 volt phantom power for professional boom mics
Power
Easily replaceable 9 volt battery Low battery indicator
Case
Sturdy die-cast aluminum enclosure
Input Levels MIC level: 0dB on the VU meter at -44dBu input LINE level: 0dB on the VU meter at +10dBu input
Frequency Response 20Hz to 20kHz (+/- 0.5dB)
THD Less than 0.01% @ 1 kHz, -30dBu input
S/N Ratio 85 dB @ 1Khz, -30dBu input
Gain Unity VU meter -18 to +3dB in 3dB increments
Battery Type One 9 volt alkaline or lithium battery
Battery Duration (no phantom) 6 hours typical with alkaline battery 12 hours typical with lithium battery
Dimensions 6†x 3.75†x 1.75†(L x W x H) (152 mm x 95 mm x 44 mm)
Weight 18 oz (0.51 kg)
1X ADAPTER 2X 1/4" TRS BALANCED OUTPUT CABLES 1X OPERATING MANUAL 1X TWO YEAR WARRANTY
Download Manual
B&H
SPECIFICATION:
Input Levels
MIC level: 0dB on the VU meter at -44dBu input LINE level: 0dB on the VU meter at +10dBu input
Frequency Response
20Hz to 20kHz (+/- 0.5dB)
THD
Less than 0.01% @ 1 kHz, -30dBu input
S/N Ratio
85 dB @ 1Khz, -30dBu input
Gain
Unity
VU meter
-18 to +3dB in 3dB increments
Battery Type
One 9 volt alkaline or lithium battery
Battery Duration (no phantom)
6 hours typical with alkaline battery 12 hours typical with lithium battery
Dimensions
6 x 3.75 x 1.75 (L x W x H) (152 mm x 95 mm x 44 mm)
Weight
18 oz (0.51 kg)
1X ADAPTER 2X 1/4" TRS BALANCED OUTPUT CABLES 1X OPERATING MANUAL 1X TWO YEAR WARRANTY
Download Manual
B&H
