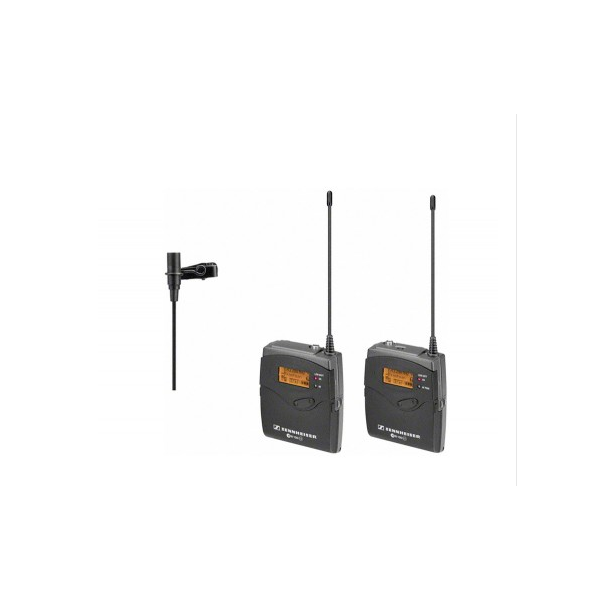

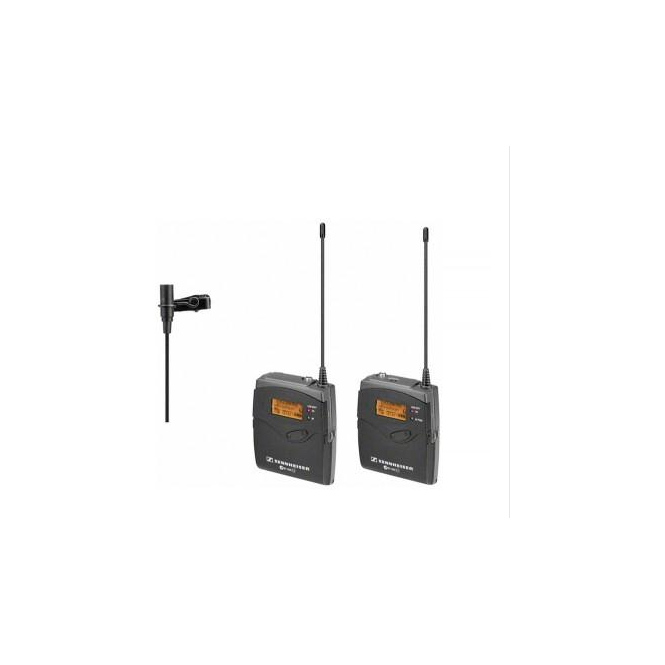

Sennheiser 504645 ew 112-p G3 GB tie clip lavalier radio microphone

Sennheiser 504645 ew 112-p G3 GB tie clip lavalier radio microphone

Contacts for recharging BA 2015 accupack directly in the transmitter or receiver

Wide range of accessories adapts the system to any requirement

Features-

Sturdy metal housing (transmitter and receiver)

42 MHz bandwidth: 1680 tunable UHF frequencies for interference-free reception

Enhanced frequency bank system with up to 12 compatible frequencies

Adaptive-diversity reception for high reception quality

Pilot tone squelch for eliminating RF interference when transmitter is turned off

Automatic frequency scan feature searches for available frequencies

Enhanced AF frequency range

Increased range for audio sensitivity

Wireless synchronization of transmitters via infrared interface

User-friendly menu operation with more control options

Illuminated graphic display (transmitter and receiver)

Auto-Lock function avoids accidental changing of settings

HDX compander for crystal-clear sound

Transmitter and receiver feature battery indicatation in 4 steps

Programmable Mute function

Contacts for recharging BA 2015 accupack directly in the transmitter or receiver

Wide range of accessories adapts the system to any requirement

VERY IMPORTANT: CHANNEL (FREQUENCY) INFORMATION

Please note all our Sennheiser wireless systems operate on the new CHANNEL 38 (GB) band (606/614 MHz)

Please check very carefully before making a purchase elsewhere

As of January 1, 2013 it became illegal to operate wireless microphones and in-ear monitors anywhere in the 800 MHz band (790-862MHz). Anybody caught using a wireless system in this band could be liable for a fine of up to £5000 and/or one year imprisonment along with confiscation of equipment.

RF frequency range 516...558 MHz 504806

Frequency range 626...668 MHz 504808

734...776 MHz 504809

780...822 MHz / Germany 503287

823...865 MHz / Germany 503289

566...608 MHz 504807

606...648 MHz 504645

516...558 MHz 503107

626...668 MHz 503284

734...776 MHz 503285

780...822 MHz 503286

823...865 MHz 503288

566...608 MHz 503283

925...937.5 MHz 505523

Frequency response (microphone) 80 - 18000 Hz

Compander HDX

Audio-XLR connector 3,5 mm Jack

Presets 12

Microphone electret

Sound pressure level (SPL) 130 dB(SPL) max.

THD, total harmonic distortion < 0,9 %

Pick-up pattern omni- directional

AF sensitivity 20 mV/Pa

Signal-to-noise ratio > 110 dB(A)

RF output power 30 mW

Transmission/receiving frequencies 1680

Switching bandwidth 42 MHz

Peak deviation +/- 48 kHz

In compliance with ETS 300422, ETS 300445, CE, FCC

Operating time typ. 8h

Input voltage range 1,8 V ligne

Audio output level balanced: +10 dBu max

Transmitter

Dimensions 82 x 64 x 24 mm

Weight ~ 160 g

Receivers

Dimensions 82 x 64 x 24 mm

Weight ~ 160 g

What's in the box?

1 EK 100 G3 diversity receiver

1 SK 100 G3 bodypack transmitter

1 ME 2 clip-on microphone (omni-directional)

1 CL 1 jack cable

1 CL 100 XLR cable

1 CA 2 camera adaptor

4 AA batteries

Operating instructions
