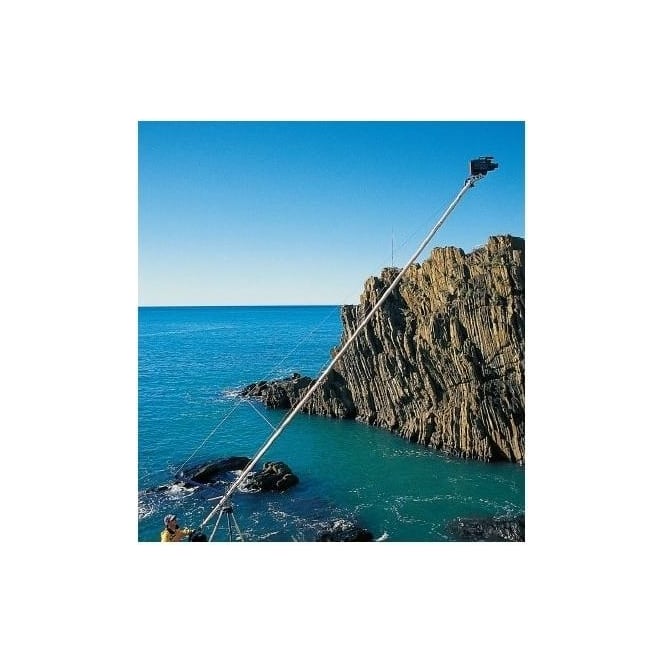

ABC 8313-02 Speedy crane 9 m

code: 8313-02
Please login to view our prices
Status   |   Usually dispatched within 24 hours
Loading...
Make An Offer
Ask a Question
Price Match
Add to Compare

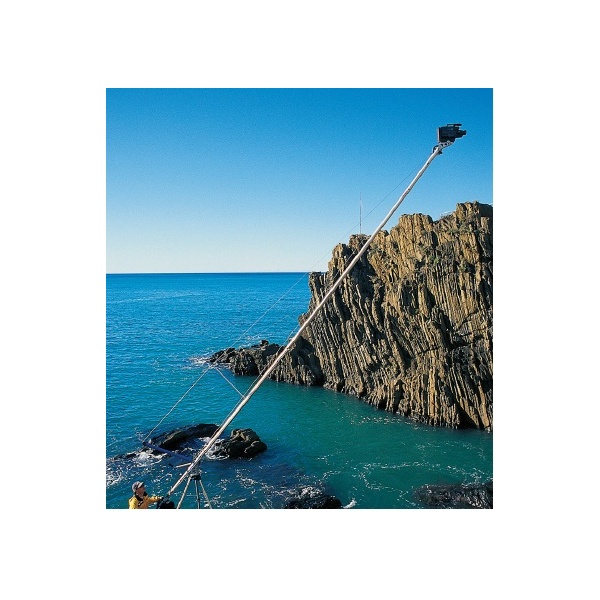

8313-02 Speedy crane 9 m - All rounder with large Reserves DV/HDV/HD. For cameras up to 10kg/22.0 lb

Extremely short assembling times! (complete assembly in approx. 10 minutes!)
Base-located hand grip for continuous adjustment of the crane-head angle!
Pin for fixed horizontal position when using a Remote Head
Wired rigs are separately colored – no danger of mix-up!
3 different assembly lengths including extensible bracket rig (small/medium/large)
Universal deployable for high flexibility
Upgradeable with light ABC - Remote Head “V5” at DV/HDV-Camcorder allows both pan and tilt with a 360 degree vertical and horizontal.
Please check camera weight!

Features:

The camera ramains in horizontal position during lift

The camera tilts automatically during lift

Lever forward/backward for changing directly the angle of the crane head

Weight support bar with safety split pin

Crane head with euro mount connection

Package includes:

  • 1 Crane segment with axis for crane prop (base element for tripod assembly)
  • 3 Extension segments
  • 1 Segment with Outrigger
  • 1 Segment with crane-head
  • 1 Crane prop
  • 1 Crane-head with Euromount connection (for Remote Head assembly)
  • 1 Adjustment frame for crane angle adjustment
  • 1 Camera screw ¼ inch
  • 1 Camera screw 3/8 inch
  • 1 Rig Set for assembly length “small” (2.74 m / 8.98 ft total length)
  • 1 Set rig extensions “medium” (4.04 m /1 3.25 ft total length)
  • 1 Rig Set for assembly length “large” (3.48 m / 11.41 ft total length)
  • 1 Rig Set for assembly length “x-large” (7.94 m / 26.04 ft total length)
  • 1 Weight support bar (Ø 28mm / 1.10 inch, Length 800mm / 31.49 inch)
  • 2 Saftety split pin for weights
  • 1 Transport bag
  • 1 Manual

Crane lengths in various assembling versions
  max. camera weight Front crane arm Back crane arm Total length
. in pounds/kilogram in feet/meter in feet/meter in feet/meter
Speedy 9 22.05 lb / 10 kg
Large version „L“   23.56 ft / 7,18 m 3.54 ft / 1,08 m 27.10 ft / 8,26 m
Medium version „M“   9.78 ft / 2,98 m 3.54 ft / 1,08 m 13.98 ft / 4,26 m
Short version „S“   5.51 ft / 1,68 m 3.54 ft / 1,28 m 9.71 ft / 2,96 m
Technical Data
  Speedy 9
Weight: 41.00 lb / 18.6 kg
Dimension when packed: 65.35 x 14.96 x 9.84 in / 166 x 38 x 25 cm
Max. payload: 22.05 lb / 10 kg
Counterweight: 164.55 lb / 74,64 kg
Weights split: 4 x 35.27 lb, 17.64 lb ; 8.82 lb / 4 x 16 kg ; 8 kg ; 4 kg
