Atlas Orion A Set, Used

Atlas Orion A Set, Used(FMP61475KSBR)

Excellent condition, 3 months warranty

At the heart of Atlas Lens Co. Orion Series is a true Front Anamorphic Group. Orion Series lenses deliver the striking beauty of painterly waterfall bokeh, disproportionate breathing, and signature but controlled flare.  These optical characteristics are now available as part of your cinematic storytelling toolkit with a mechanical functionality that won't leave you feeling confounded by compromise.

 Orion Series Anamorphic Lenses are built to be a universal filmmaking tool - ready for the latest Digital Cinema PL mount cameras like Arri Alexa or Red DSMC2, Canon Mount Cinema Cameras like the C300, or adapted Sony E Mount or Micro 4/3 cameras, and are even designed to accommodate the rotating mirror shutter of 35mm Motion Picture Film Cameras following Arri PL Flange requirements. Whether your project requires you to shoot digital or film, the 65mm T2 has the coverage you need and boasts a larger than S35mm Image Circle. (Alexa Open Gate full height Coverage).

An Interchangeable Mount System means you can use Orion Series Anamorphic lenses on any PL Mount camera one day, and any compatible EF,  E-mount, or Micro 4/3 camera with appropriate adapters for your next shoot or second unit. Focus has a deep 270° travel rotation. Cine pitch 0.8 mod gearing on both iris and Focus ring are spaced to allow simultaneous drive control, even when two motors are mounted on the same side of the lens.

The initial 3 lens set will consist of 40mm, 65mm, and 100mm T2 Primes in PL Mount. Lens Mounts are Interchangeable via 8 Torx screws. Additional mounts will be available for purchase separately.

40mm Lens

T-Stop Range T2-T16

Minimum Focus 2ft (0.56 m)

Weight 5 lbs (2.2kg)

Length 7.4'' (18.9 cm)

Front Diameter 114mm

Image Circle 31mm

Alexa Sensor Coverage 4:3 ANA

23.76 x 17.89 mm

RED Sensor Coverage Helium 8K 6:5 ANA

Gemini 5K 6:5 ANA

Monstro 7K+ 6:5 ANA

65mm Lens

T-Stop Range T2-T16

Minimum Focus 2.75 ft (0.84 m)

Weight 5lbs (2.2kg)

Length 7.2'' (18.4 cm)

Front Diameter 114mm

Image Circle 31mm

Alexa Sensor Coverage 4:3 ANA

23.76 x 17.89mm

RED Sensor Coverage Helium 8K 6:5 ANA

Gemini 5K 6:5 ANA

Monstro 7K+ 6:5 ANA

100mm Lens

T-Stop Range T2-T16

Minimum Focus 3.5ft (1m)

Weight 6.7lbs (3kg)

Length 10'' (25.4cm)

Front Diameter 114mm

Image Circle 31mm

Alexa Sensor Coverage 4:3 ANA

23.76 x 17.89mm

RED Sensor Coverage Helium 8K 6:5 ANA

Gemini 5K 6:5 ANA

Monstro 7K+ 6:5 ANA

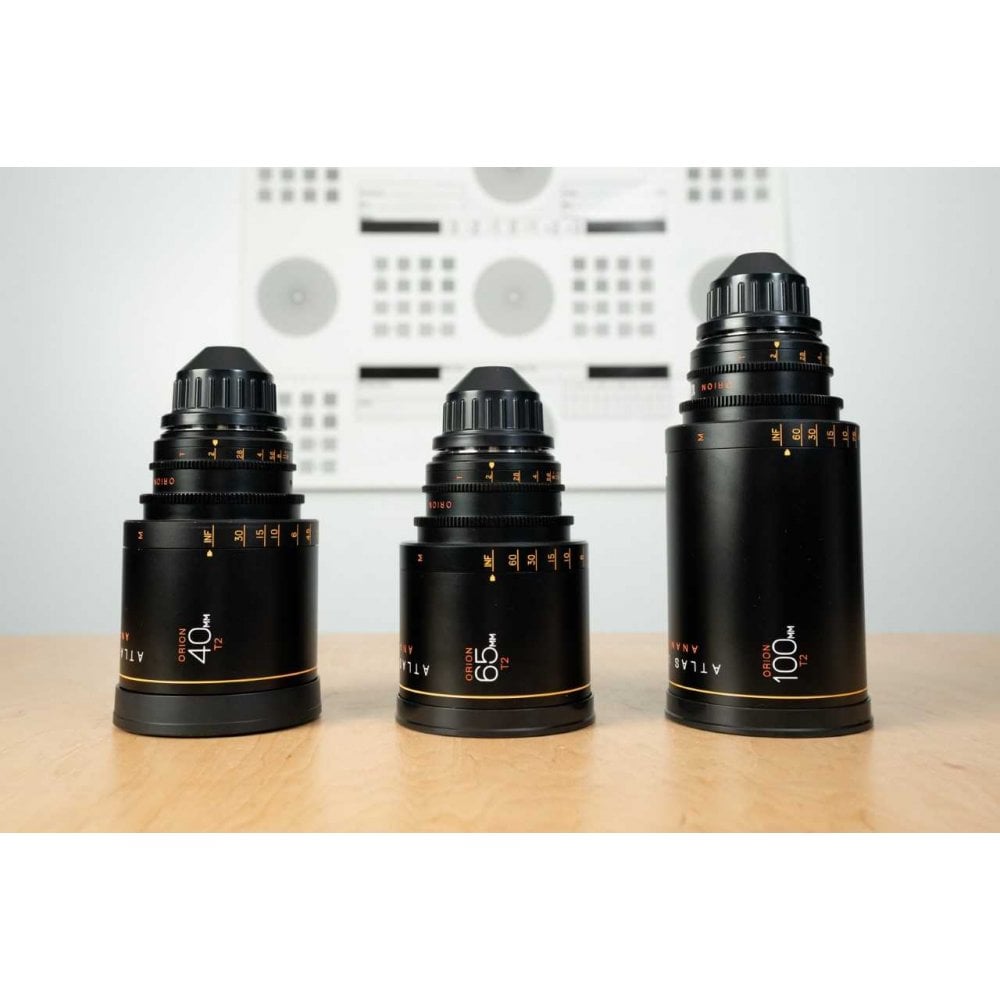

In the box:

Atlas Orion 40mm

Atlas Orion 65mm

Atlas Orion 100mm

PL + EF mount, including shims

Original front and back lens caps + extra sturdy front lens cap for the 40mm that protects the curved glass better

Innerspace Flightcase
