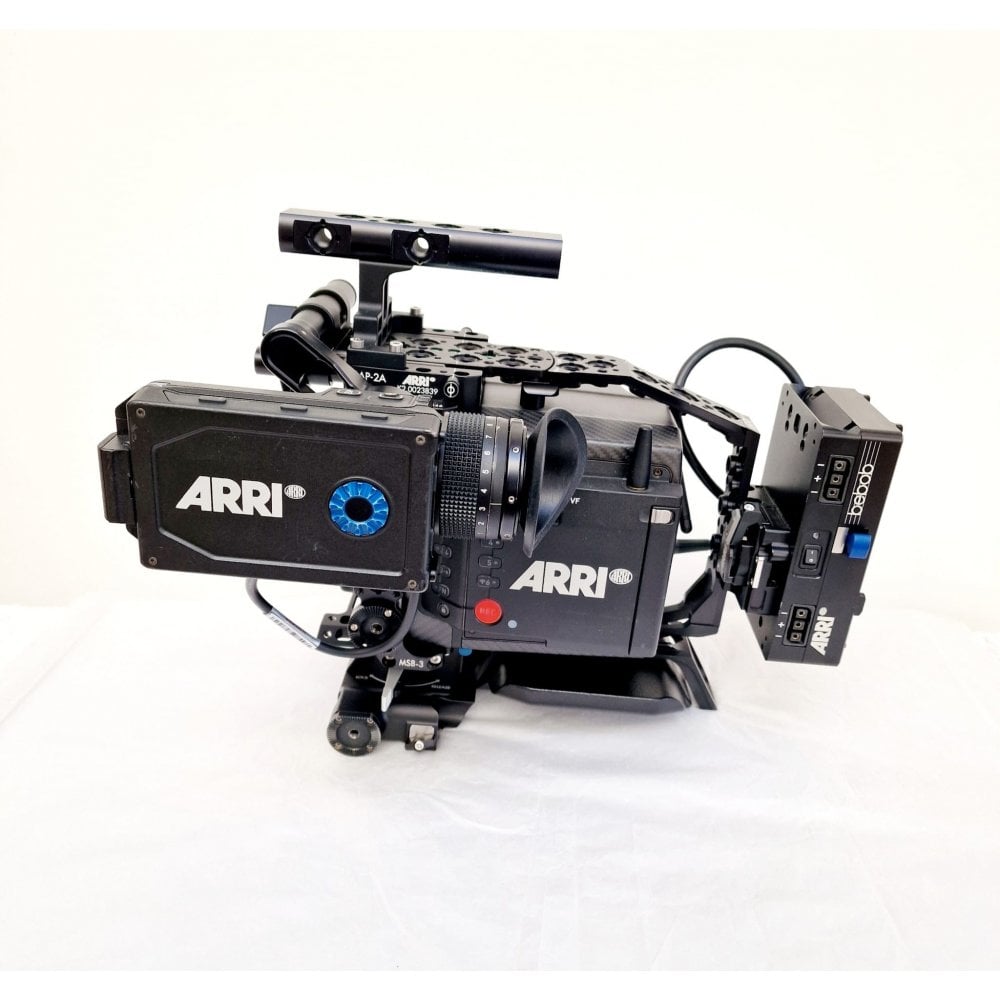

Arri Alexa Mini LF ready to shoot kit, 544 hours, Used

Arri Alexa Mini LF ready to shoot kit, 544 hours, Used

3 Months Warranty, Excellent Condition

ARRI Built Quality: Almost a century of experience, an obsessive attention to detail and an intimate familiarity with the conditions on set have led to generations of ARRI cameras that are robust, reliable and simple to operate - all features that ARRI digital cameras have inherited. ALEV Sensors: ARRI's very own ALEV III sensor plays its strengths in a film-like look and feel with HDR capability (since 2010). Originally developed for ARRI ALEXA camera family, it had the same height and width as a 35mm film frame. Nowadays the ALEV III comes to live in different cameras and shapes: ALEXA 65 uses the A3X version - a 65mm sensor - whereas ALEXA LF and ALEXA Mini LF use A2X, the slightly smaller variant that covers a little bit more than "full frame". Image Processing: A steady look-out for image quality is key to delivering the best possible image through a given pipeline. In this way new developments and ways to shape the DoP's vision on set can be integrated into ARRI cameras via new software releases. ARIRAW footage recorded before such an update benefits as well as it can be re-processed through an updated pipeline. Lens Mounts: Great images derive from great lenses with their individual touch to the image. For this to happen the lens has to sit precisely where it should be, responsible for that is the lens mount. Get to know all ARRI lens mounts and find out what makes ARRI new LPL mount unique. Viewfinders: ARRI viewfinder are specifically designed to meet the needs of professional camera operators by offering an extremely fast image display, high image quality, accurate color reproduction and a number of features inherited from ARRI optical viewfinders, including surround view. Workflow: The concept behind the term "workflow" is the digital film lab. Hence being able to view, edit and "post" footage recorded with ARRI digital cameras. ARRI develop their own Software Development Kit (ARRIRAW SDK) for processing ARRIRAW data to RGB images and talk to 3rd party vendors to ensure support in their tools.

Specifications:-

 Dimensions

 Length: 185 mm/7.3"

 Width: 125 mm/4.9"

 Height: 140 mm/5.5"

 (camera body with PL lens mount)

 Weight 2.3 kg/5 lbs (camera body with titanium PL lens mount)

 Sensor 35 mm format ARRI ALEV III CMOS with Bayer pattern color filter array

 Photo sites (with surround view) 16:9

 HD: 2880x1620 (3168x1772)

 2K: 2868x1612 (3154x1764)

 3.2K: 3200x1800 (3424x1926)

 4K UHD: 3200x1800 (3424x1926)

 4:3

 2K: 2867x2150 (3168x2160)

 Shutter Electronic shutter, 5.0 to 356.0

 Exposure latitude 14+ stops over the entire sensitivity range from EI 160 to EI 3200

 as measured with the ARRI Dynamic Range Test Chart (DRTC-1)

 Exposure index EI 800 base sensitivity

 Filters Built-in motorized ND filters 0.6, 1.2, 2.1

 Lens mounts Titanium PL mount with L-Bus connector and LDS

 Recording media CFast 2.0 memory cards

 Recording formats HD 1920x1080

 2K Cine 16:9 2048x1152

 2K Cine 4:3 2048x1536 *

 3.2K 3200x1800

 4K UHD 3840x2160

 ARRIRAW 2.8K 16:9 2880x1620 *

 ARRIRAW 2.8K 4:3 2880x2160 *

 Recording codec ProRes 4444XQ, 4444, 422 (HQ), 422, 422(LT), ARRIRAW *

 Color output Rec 709, custom look or Log C

Look control Import of custom 3D LUT, ASC CDL parameter (slope, offset, power, saturation)

 Adjustable image parameters Knee, gamma, saturation, black gamma, saturation by hue

 Focus and exposure control Peaking, zebra, false color

 White balance Manual and auto white balance

 Sound level -20 dB(A) at standard frame rates

 Environmental -20 C to +50 C (-4 F to +122 F) @ 95% humidity max, non-condensing

 Splash and dust-proof through sealed electronics

 Viewfinder Multi Viewfinder MVF-1 (OLED and LCD ) with flip-out LCD screen

 military-grade connector to camera

 Control interface Soft buttons and OSD on SDI output, integration of Transvideo StarliteHD touch interface *

 ARRI lens motor control Built-in radio interface for ARRI lens control

 L-Bus motor output for daisy-chainable cforce lens control motors

 Wi-Fi remote control Built-in Wi-Fi interface and web-based remote control from phones, tablets and laptops

 Custom control Optional GPIO interface for integration with custom control interfaces

 Power input Lemo 8-pin, 10.5-34 V DC

 Video outputs 2x HD-SDI out 1.5G

 3G: uncompressed HD video with embedded audio and metadata, SDI-6G interface to external CODEX recorder *

Inputs SDI-Genlock (optional activation through ARRI Service),timecode (in and output)

In the box:-

 Camera & MVF

ARRI ALEXA Mini LF

Large Format LPL Mount 4.5K

Arri (K0.0024311 ) ALEXA Mini LF MVF-2 Set

 Rigging

Arri (K0.0024310 ) ALEXA Mini LF & Lens Mount Set

Arri (K2.0023839 ) Mini Adapter Plate MAP-2A

Arri (K2.0006140 ) Mini Viewfinder Bracket MVB-1

Arri (K2.73002.0 ) Center Camera Handle CCH-2

Arri ( K2.0023546 ) Mini Side Bracket MSB-3

Arri ( K2.0014957 ) Mini Side Bracket MSB-2

Arri ( K2.0014894 ) Compact Bridge Plate CBP-1 19mm

Arri (K2.0023406 ) RAB-1 Clamp 2

Arri (K2.0006186 ) Rod Mounting Bracket RMB-3

Arri ( K2.66255.0 ) 15mm Reduction Insert

Arri (K2.0014530 ) V-Mount Power Splitting Box MklI

Arri ( K2.0015896 ) Bottom Dovetail Plate 300mm/12in

Arri ( K2.75007.0 ) AMIRA Power Cable Straight 2m/6.6in KC-50

Arri (K2.0006334 ) Mini Adapter Plate MAP-1

 Cards

4 x Arri (K2.0024130 ) Codex Compact Drive 1TB (CA08-1024)

Arri (K2.0024134 ) Codex Compact Drive Reader (USB-C)

 Case

Custom Case Design Alexa Mini LF Case
