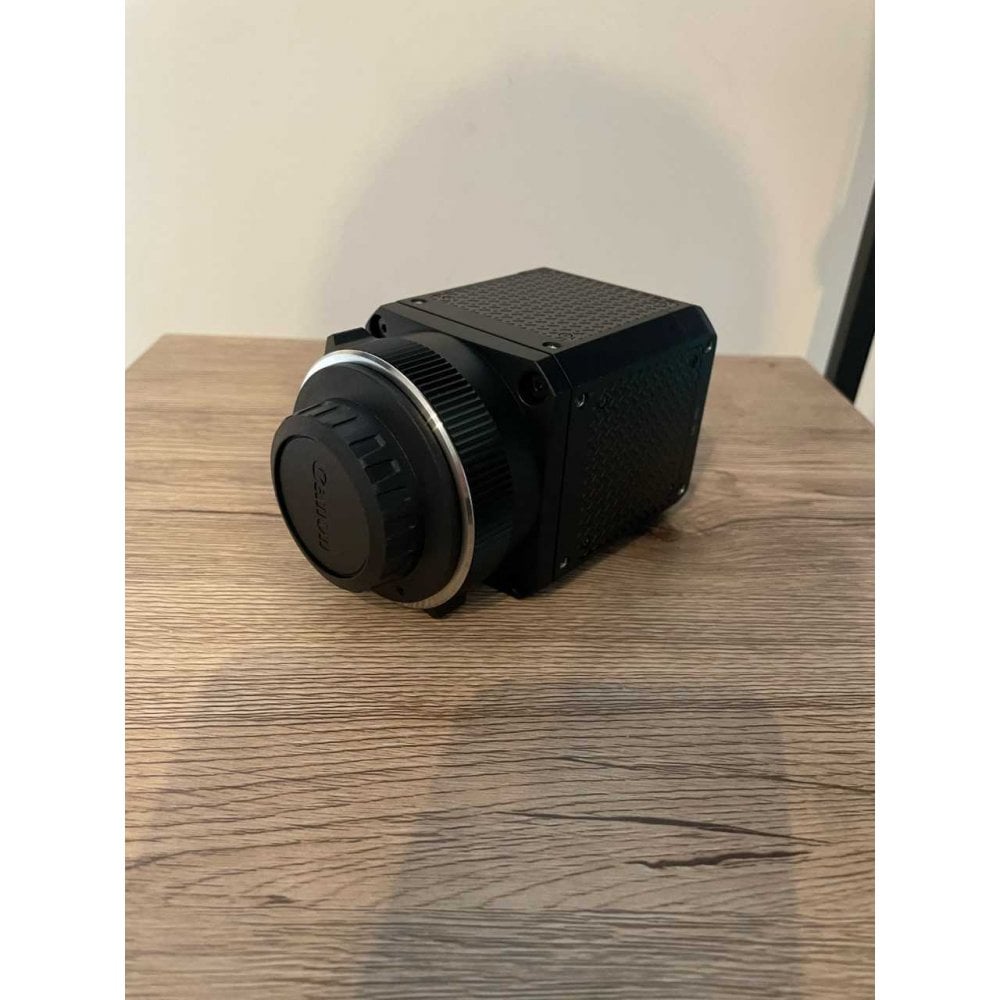

Canon ML-105 EF Multipurpose Camera EF , used

Canon ML-105 EF Multipurpose Camera EF (4843C001), used(FMP60731JPBR)

3 months Warranty, Good Condition

Get exceptional, low-light industrial video performance using the Canon ML-105 EF Multipurpose Camera. Built around a 35mm full-frame CMOS sensor, the highly sensitive ML-105 camera creates top-of-the-line imagery in a reduced form factor. Despite its compact size, this high-end EF-mount camera offers a robust selection of functions and meets MIL-standard equivalents.

Highly Compact Functionality

The ML-105 maintains the sensitivity performance of the ME20F-SH while measuring 50% smaller, around 4 x 3".

It offers a minimum illumination of 0.0005 lux (or less), over 2.7 million pixels, and meets MIL Standard equivalents.

Low-Light, Full-Frame Sensor

The ML-105 EF's 35mm full-frame CMOS sensor uses larger 19μm photosites to obtain optimal performance even with a minimum subject illumination of 0.0005 lux or below (at maximum 75 dB gain).

This sensor has a sensitivity equivalent to a higher than 4,000,000 ISO.

Reduced Form Size

This box-style camera can be easily configured with a wide range of system devices.

Its modularity enables it to be used on multi-sensor optical systems, defense surveillance systems, research and surveying, and more.

3G-SDI BNC Output

The ML-105 EF outputs 8-bit effective, 4:2:2 video at rates up to 1080p 59.94.

It also incorporates a Genlock BNC terminal.

Compatibility

Canon EF Lenses / EF Cinema Lenses (Excluding Cine-Servo)

Shutter Speeds

1/2000 to 1/3 Second

Inputs / Outputs

Video I/O

1x BNC (3G-SDI) Output

Number of Pixels

Total: 3.02 Million

Size: 19 x 19 µm

Full Well Charge: 61,000 e at Gain x 1

Dark Random Noise: 2.2 e rms at Gain x 16 (Room Temperature)

Effective Pixels

Approximate: 2.07 Million

Active Image Size: 36.5 x 20.5 mm

Minimum Illumination

0.0005 Lux or Less (at 75 dB, f/1.2, 30p, 50 IRE)

ISO Sensitivity

Maximum: 4,560,000 (75 dB)

Filter

Low Pass

Other Input/Output

Genlock: 1 x BNC

Remote

Input: 1 x 8-Pin ODU

Focus

Motor-Driven Control

Wireless

Mobile App Compatible

No

Video Resolution

1080p: 59.94/50/29.97/25/23.98

1080i: 59.94/50

720p: 59.94/50/29.97/25/23.98

Power

Power Source

AC Adapter with Power Brick (Not Included)

DC Input Power

10 to 29 VDC

Power Consumption

10.2 W

Cooling

Passive

Environmental

Certifications

MIL-STD, TAA

Operating Temperature

-4 to 122°F / -20 to 50°C

Physical

Color

Black

Dimensions

3.3 x 3 x 3" / 83 x 76 x 76 mm

Weight

1.8 lb / 800 g

In the Box

Canon ML-105 EF Multipurpose Camera (Canon EF), used

Body Cap
