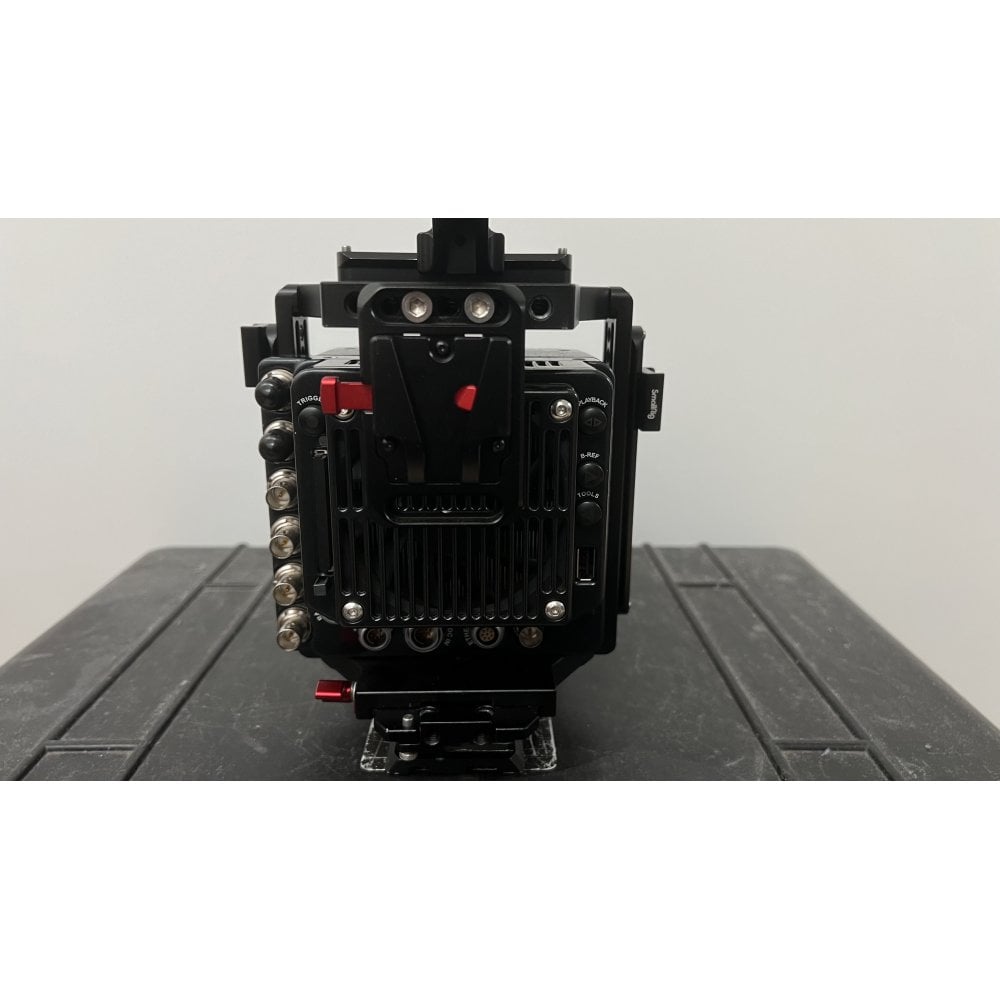

Phantom VEO4K-PL Camera w accessories, used

Phantom VEO4K-PL Camera, w/accessories, used



3 Months Warranty, Good Condition



Description:



The VEO4K 990 is a high-tech camera that brings the advanced imaging capabilities of the Phantom Flex4K to scientific and research applications. It offers a compact body, making it more portable and flexible for use in various settings. With a 9 Gpx throughput, it delivers 4K resolution and low noise, allowing professionals to capture fine details without compromising speed and function.



The VEO4K 990 comes with multiple lens mount options, including Nikon, PL, C, and Canon EF (with electronic control). It also offers two body options, the L and S, both made from milled aluminium and designed to withstand harsh environments. However, the handle and 10Gb Ethernet options are sold separately, providing users with the flexibility to choose the features they need for their specific needs.









Specs:



Resolution FPS

4096 x 2304 938

4096 x 2160 1,000

4096 x 1152 1,850

2048 x 2048 1,050

2048 x 1152 1,850

2048 x 1080 1,970

Throughput/Speed 9 Gpx/second

Max speed at full resolution of 4096 x 2304 is 938 fps

At 4096 x 2160 max speed is 1000 fps

At 2048 x 1080 max speed is 1977 fps

Minimum frame rate of 24 fps

Sensor Specifications CMOS sensor

12-bit pixel depth

4096 x 2304 pixels

6.75 µm pixel size

27.6 mm x 15.5 mm

Super-35mm; 31.7mm diagonal

Super-16mm format at 1920 x 1080

Global Shutter (GS): Base ISO 5000T Mono.

Rolling Shutter (RS): Base ISO 320T Colour; 2000T Monochrome

Recommended Exposure Index range: 1000-1600 Colour;

10,000-20,000 (GS); 4000 - 8000 (RS) Monochrome

Exposure 5 μs minimum exposure.

Global shutter (default).

Exposure Index (E.I.) for controlling apparent ISO

VEO4K also supports rolling shutter mode for increased dynamic range and limited need for black reference.

In rolling shutter mode the scan time is 1-millisecond.

Memory 72 GB high-speed internal RAM

On-board removable CFast 2.0 cards (S-models) up to 256GB

Record Times 6 seconds at maximum frame rate, largest resolution and into maximum internal memory

Special Features 10Gb Ethernet (optional)

Segment memory for up to 63 cines in multi-cine mode

Continuous recording

Programmable I/O

HD-SDI and HDMI video

Event marking

Frame timestamp (IRIG SMPTE or MISP)

IRIG in/out (modulated and unmodulated)

7.5 μs straddle time

Standard Internal mechanical shutter for automatic/remote Current Session Reference (CSR)

One 12 VDC, 12W auxiliary power port

Secondary IP address

Field-based firmware upgrades

Triggering Programmable trigger location (pre/post trigger recording)

Trigger from camera body or via software

Trigger from on-camera controls (S-models)

Hardware trigger BNC

Timing and Synchronization Frame synchronization to internal or external clock (FSYNC)

IRIG in/out (modulated or unmodulated)

SMPTE time code support

Signaling Dedicated Trigger and Timecode In BNCs on camera body

Range Data input on S-model camera body (Fischer)

Programmable I/O ports includes adjustable (assign and define) signals including

F-sync, strobe, event, trigger output, ready and more

Ethernet Connection Control and download connections

Gb Ethernet (standard);

10Gb Ethernet (optional)

Fischer port on S-models; RJ45 port on L-models

Camera Control On-Camera Controls (OCC) on S-model camera

Phantom Camera Control (PCC)

SDK available

Video Out 3G HD-SDI and HDMI on all VEO models.

Additional 3G HD-SDI BNC port on back of S-model.

Supports up to 1080p60.

Lensing Nikon F-mount standard, supports F & G style lenses

Canon EOS mount optional (compatible with Flex4K-style EOS mount).

PL-mount optional (compatible with v-Series PL mount)

C-mount optional (VEO-4K specific)

Video Processing Brightness

Gain

Gamma

Saturation

White Balance

Pedestal

Tone curve

Filters

Colour matrix

Image flip and rotate

Crop

Scale

Data Acquisition National Instruments M- and X-Series DAQ modules with integrated support in PCC

Motion Analysis Basic measurements via Phantom Application:

Distance

Speed

Acceleration

Angles and Angular Speed

Manual and Automatic point collection for target tracking

Compatible with 3rd party solutions

Supported File Formats Cine RAW, Cine Compressed, AVI,

h.264 mp4, Apple ProRes .mov, Multipage TIFF, MXF PAL,

MXF NTSC, Uncompressed QuickTime, Windows BMP, OS/2

BMP, PCX, TGA, TIFF, LEAD, JPEG, JTIF, RAW, DNG, DPX

Power 100 - 240 VAC, 16-32 VDC via primary power input.

80 Watt 24V power supply included

Secondary power input, down to 12V via capture port on S-model cameras

Mechanical Specifications Size (without lens): 5.0 x 5.5 x 6 inches (L x W x H);

12.7 x 14 x 15cm

Weight: 6 lbs (2.5 kg)

Environmental Specifications Operating Temperature: -10°C - +50°C

APIs Phantom SDK

LabView

MatLab

Ships Standard With Power supply

Ethernet cable

SDI DIN Cable

Phantom PCC software

Getting Started Guide

Options Canon EOS lens mount

PL-mount

C-mount

OLPF

Popular Accessories Handle & Cheese plates

V-Lock and Gold-mount side Battery mounts (S-model)

Cameo VEObob for added power outputs and remote port (S-model)

Case with custom foam

In the box:



1 x Phantom VEO4K-PL Camera

1 x 72GB Memory

1 x 10GB Ethernet

1 x PL Mount

1 x Power Supply

1 x Phantom Ethernet Cable

1 x Shim kit

1 x Manual box & paperwork

1 x Gold mount plate

1 x V-Lock Plate

3 x CF Cards 128gb

1 x CF Reader

1 x Run/record switch

1 x PL to B4 mount adaptor

LENS NOT INCLUDED
