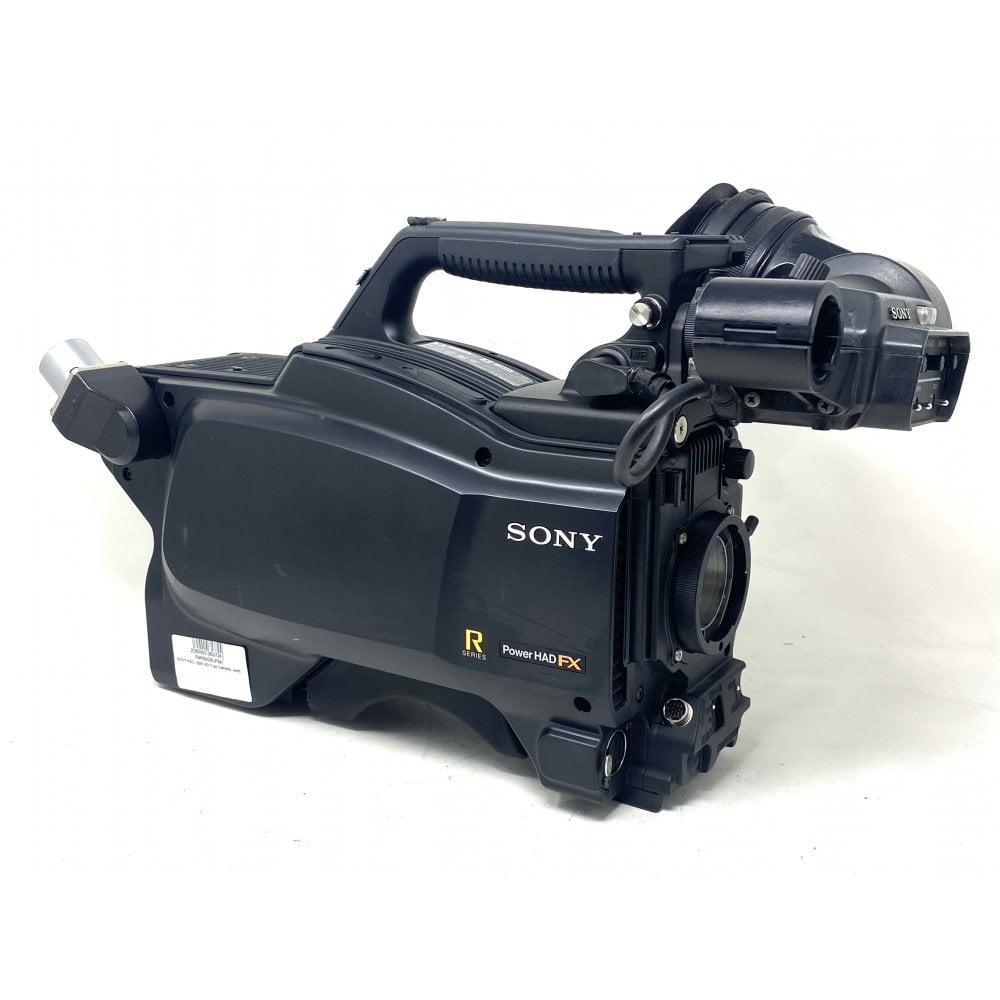

Sony HSC-100R Camera with HDVF-20A viewfinder, Used

Sony HSC-100R, with HDVF-20A viewfinder , used

3 Months Warranty, Good Condition

The Sony HSC-100R Digital Triax Broadcast Camera is an HD/SD camera with a digital triax CCU input. Its triax system integrates seamlessly into existing triax-based infrastructures, allowing easy upgrades, and supports cable runs up to 3,937 ft to an optional CCU. The camera features a 2/3" CCD sensor with F10 sensitivity for 1080i59.94 and F11 for 1080i50, boasting a -60dB signal-to-noise ratio. It records in 720p, 1080PsF, and down-converts to high-quality SD. Optional HZC-PSF3 software is required for 1080/29.97PsF/25PsF recording. The camera is equipped with a Sony Bayonet lens mount and offers a wide range of inputs/outputs, including XLR audio, XLR mic, HD/SD-SDI output, VF signal, return signal, SDI prompter output, genlock input, return input, and XLR intercom. Additionally, it includes an electronic color correction filter and four built-in ND filters.

The camera’s 16-bit A/D converter processes images with high color precision, while the Digital Extender function enlarges the center of the image by a factor of two without decreasing sensitivity. Auto Lens Aberration Compensation 2 reduces chromatic aberration with horizontal and vertical compensation for supported lenses. The camera offers seven standard-gamma and four hyper-gamma tables for contrast adjustment, and the Multi-Matrix function allows for user-specified color adjustments. Adaptive-Matrix improves color conversion under challenging lighting, while Master White Gain enables precise, step-less gain level adjustments. Focus assist options include "Viewfinder Detail" and "Focus Assist Indicator" for easier focusing.

Built for durability, the camera’s chassis is made from magnesium-alloy casting, and the integrated shoulder pad is adjustable without tools. The handle is designed for stability, featuring a protrusion for added support and a non-slip structure for a better grip. Assignable switches are located on the side and rear panels, with additional assignable buttons on the handle.

Key Features:

• HD/SD triax CCU input for broadcast
• Supports existing triax infrastructures
• Triax cable runs up to 3,937 ft
• 2/3" CCD sensor with F10 sensitivity for 1080i59.94 and -60dB signal-to-noise ratio
• Records in 1080i59.94/50, 720p, 1080PsF
• Built-in SD down-converter
• 16-bit A/D converter
• 7 standard-gamma and 4 hyper-gamma tables
• Sony Bayonet lens mount

Specifications:

Sensor:

• 3-chip 2/3" type CCD
• Effective Picture Elements: 1920 x 1080

Signal Format:

• 1080/59.94i/50i, 720/59.94p/50p, 1080/29.97PsF/25PsF (optional HZC-PSF3 software required for 1080/29.97PsF/25PsF)

Optical System:

• Spectrum System: F1.4 prism system
• Lens Mount: Sony bayonet mount

Built-In Filters:

• Electronic color correction
• ND filters: Clear, 1/4 ND, 1/16 ND, 1/64 ND

Sensitivity:

• F10 (59.94 Hz) / F11 (50 Hz) at 2000 lx, 3200 K, 89.9% reflectance

Signal-to-Noise Ratio:

• HD: -60 dB (1080i)

Horizontal Resolution:

• HD: 1,000 TV lines
• SD: 900 TV lines

Shutter Speed Range:

• 59.94i mode: 1/100, 1/125, 1/250, 1/500, 1/1000, 1/2000 (s)
• 50i mode: 1/60, 1/125, 1/250, 1/500, 1/1000, 1/2000 (s)

Modulation Depth:

• HD: 45% at 27.5 MHz (1080i)
• SD: 90% at 5 MHz

Input/Output:

• Audio Input (Ch 1, Ch 2):
  1x XLR 3-pin, female per channel
  For Mic: -60 dBu (selectable to -20 dBu by menu or HSCU operations), balanced
  For Line: 0 dBu, balanced

• Mic 1 Input:
  1x XLR 3-pin, female

• Return Control Input:
  1x 6-pin

• Prompter Output/Genlock Input/Return Input:
  1x SDI, 1 Vp-p, 75 Ω

• DC Input:
  1x XLR 4-pin, DC 10.5 V - 17 V

• DC Output:
  1x 4-pin, DC 10.5 V - 17 V, 0.5 A (max.)
  1x 2-pin, DC 10.5 V - 17 V, 2.5 A (max.)

• Test Output:
  1x BNC

• SDI Output:
  1x BNC

• Earphone Output:
  1x stereo mini jack

• CCU Connection:
  1x Triax

• Tracker:
  1x 10-pin

• Intercom:
  1x XLR 5-pin, female

• Remote:
  1x 8-pin

• Lens:
  1x 12-pin

• Viewfinder:
  1x 20-pin

Power Requirements:

• DC 180 V, 1.0 A (max.), DC 12 V, 7 A (max.)

Operating Temperature:

• -4 to 113°F (-20 to 45°C)

Storage Temperature:

• -4 to 113°F (-20 to 45°C)

Weight:

• 9.9 lb (4.5 kg)

In The Box:

• 1x SONY HSC-100R HD Triax Camera, used (FMP60426LPSH)

  1x Sony HDVF-20A viewfinder
