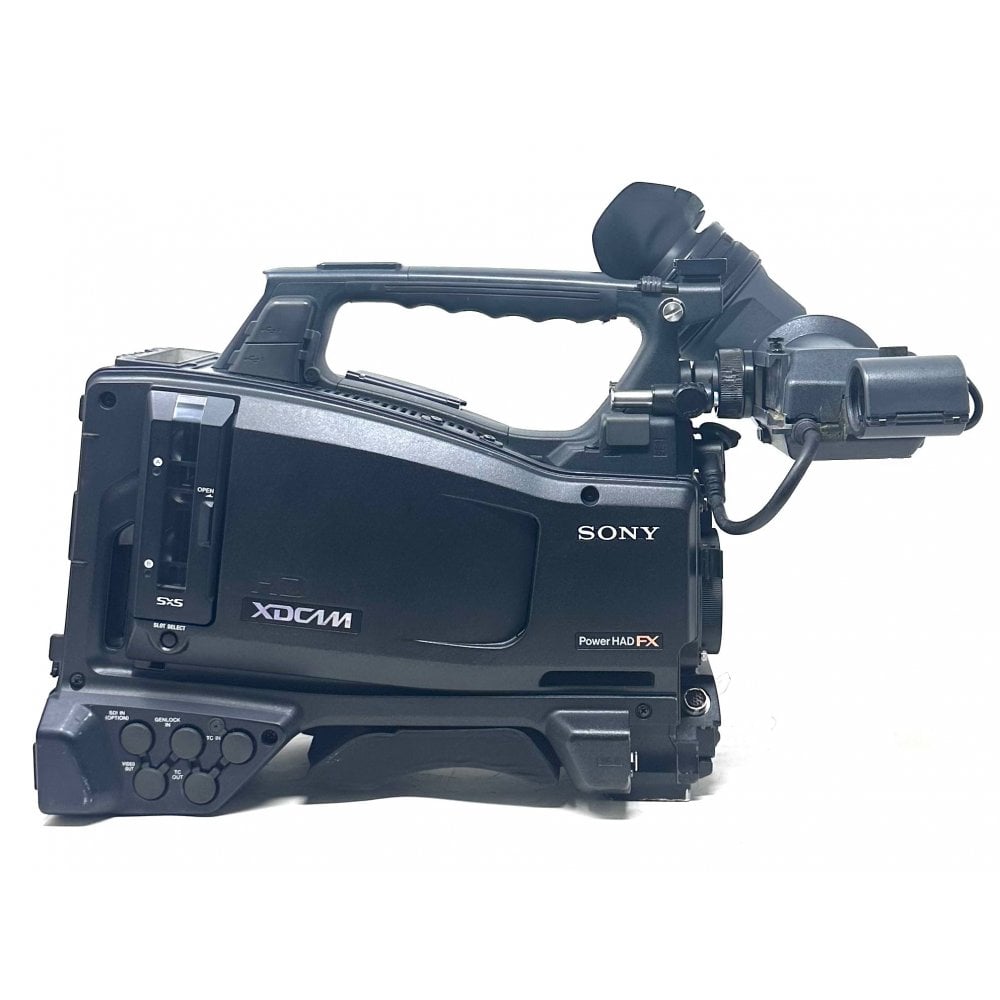

Sony PMW 500 XDCAM Camcorder with HDVF20A viewfinder, used

Sony PMW 500 XDCAM Camcorder with HDVF20A viewfinder, used(FMP60790RHSH)

3 month warranty, Excellent condition

Note - 829 hours used

The PMW-500 is Sony Professional’s first XDCAM HD422 Camcorder with solid state recording. It supports full-HD 422 50-Mbps MXF record and playback based on highly developed MPEG-2 Long GOP compression technology. Uniquely, it can also be switched to record in HD 420 35-Mbps MP4 format which makes for seamless integration when used alongside XDCAM EX models.

Its 2/3-inch type three Power HAD FX CCD sensors deliver the same outstanding picture quality and low-light performance as the acclaimed PDW-700, however it records onto Solid State SxS media rather than optical Professional Disc.

The exceptionally ergonomic chassis is a development of the acclaimed PDW-700/F800, while already class-leading power consumption is further reduced along with weight for superb on-location usability.

Sony’s XDCAM product range sets the benchmark for high speed, exceptionally flexible, file-based workflow. XDCAM Professional Disc products were first introduced in 2004, followed by high-speed memory-based XDCAM EX in 2007. A common technology platform provides a unique hybrid workflow meeting a broad variety of customer application needs.

Mass Approx. 3.4 kg (without lens)

Power Requirements DC 12 V (11 V to 17 V)

Power Consumption Approx. 33 W (with viewfinder, lens and microphone while recording)

Approx. 29 W (body while recording)

Operating Temperature -5°C to +40°C

Storage Temperature -20°C to +60°C

Continuous Operating Time Approx. 170 min with BP-GL95 battery

Dimensions (W x H x D)*1 124 x 269 x 332 mm (excluding protrusions, body only)

Recording Format (Video) MPEG-2 Long GOP:

•  HD 422 mode: CBR, 50 Mbps max., MPEG-2 422P@HL

•  HQ mode: VBR, 35 Mbps max., MPEG-2 MP@HL

•  SP mode: CBR, 25 Mbps, MPEG-2 MP@H-14

•  SD mode (with CBK-MD01): IMX, DVCAM

Recording Format (Audio) UDF

HD 422 50 mode: LPCM 24 bits, 48 kHz, 4 channels

HD 420 HQ mode: LPCM 16 bits, 48 kHz, 4 channels

SD IMX mode (with CBK-MD01): LPCM 16/ 24 bits, 48 kHz, 4 channels

SD DVCAM mode (with CBK-MD01): LPCM 16 bits, 48 kHz, 4 channels

FAT

HD mode: LPCM 16 bits, 48 kHz, 4 channels

SD DVCAM mode (with CBK-MD01): LPCM 16 bits, 48 kHz, 2 channels

Recording/Playback Time (MPEG HD) UDF Mode

HD 422 50/ SD IMX Mode: *2

Approx. 120 min with SBS-64G1A (64 GB) memory card

Approx. 60 min with SBP-32/ SBS-32G1A (32 GB) memory card

Approx. 30 min with SBP-16 (16 GB) memory card

HD 420 HQ Mode:

Approx. 180 min with SBS-64G1A (64 GB) memory card

Approx. 90 min with SBP-32/ SBS-32G1A (32 GB) memory card

Approx. 45 min with SBP-16 (16 GB) memory card

SD DVCAM Mode: (option)

Approx. 220 min with SBS-64G1A (64 GB) memory card

Approx. 110 min with SBP-32/ SBS-32G1A (32 GB) memory card

Approx. 55 min with SBP-16 (16 GB) memory card

Recording/Playback Time (MPEG HD) HD HQ Mode:

Approx. 200 min with SBS-64G1A (64 GB) memory card

Approx. 100 min with SBP-32/ SBS-32G1A (32 GB) memory card

Approx. 50 min with SBP-16 (16 GB) memory card

HD SP Mode:

Approx. 280 min with SBS-64G1A (64 GB) memory card

Approx. 140 min with SBP-32/ SBS-32G1A (32 GB) memory card

Approx. 70 min with SBP-16 (16 GB) memory card

SD DVCAM Mode: (option)

Approx. 260 min with SBS-64G1A (64 GB) memory card

Approx. 130 min with SBP-32/ SBS-32G1A (32 GB) memory card

Approx. 65 min with SBP-16 (16 GB) memory card

Recording Frame Rate UDF

HD 422 50 Mode: MPEG-2 422P@HL, 50 MBps/ CBR

•  1920 x 1080/ 59.94i, 50i, 29.97p, 25p, 23.98p

•  1280 x 720/ 59.94p, 50p, 29.97p, 25p, 23.98pHD 420 HQ Mode: MPEG-2 MP@HL, 35 MBps/ VBR

•  1440 x 1080/ 59.94i, 50i, 29.97p, 25p, 23.98p,

•  1280 x 720/ 59.94p, 50p, 29.97p, 25p, 23.98p (2-3 pull down)

SD IMX Mode (with CBK-MD01)

•  720 x 486/ 59.94i, 29.97PsF

•  720 x 576/ 50i, 25PsF

Recording Frame Rate FAT

HD HQ 1920 Mode: MPEG-2 MP@HL, 35 Mbps/ VBR

•  1920 x 1080/ 59.94i, 50i, 29.97p, 25p, 23.98pHD HQ 1440 Mode: MPEG-2 MP@HL, 35 Mbps/ VBR

 •  1440 x 1080/ 59.94i, 50i, 29.97p, 25p, 23.98pHD HQ 1280 Mode: MPEG-2 MP@HL, 35 Mbps/ VBR

•  1280 x 720/ 59.94p, 50p, 29.97p, 25p, 23.98pHD SP 1440 Mode: MPEG-2 MP@H-14, 25 Mbps/ CBR

•  1440 x 1080/ 59.94i, 50i, 23.98p (2-3 pull down)SD DVCAM Mode (with CBK-MD01 option)

•  720 x 486/ 59.94i, 29.97PsF

•  720 x 576/ 50i, 25PsF

In the Box

SONY PMW 500 Camcorder

SONY HDVF20A Viewfinder

SONY SHOULDER STRAP

MANUALS

ORIGINAL BOX
