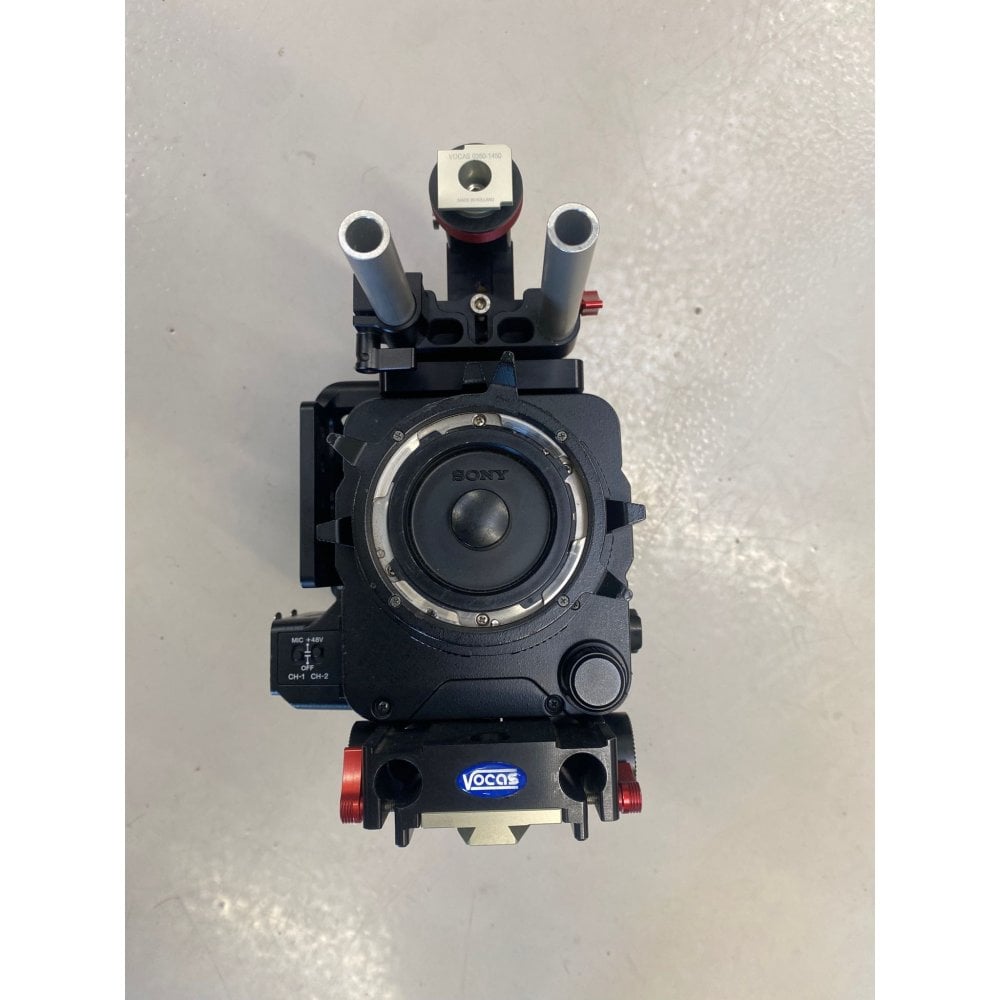

Sony Pmw-F5 Full Hd 4K Camera, Dvf L100 Vf, 4K Raw, 1750 Hours

Sony Pmw-F5 Full Hd 4K Camera, Dvf L100 Vf, 4K Raw, 1750 Hours(FMP59141LPBR)

3 Months Warranty, Excellent Condition

Sony's PMW-F5 CineAlta camera shoots spectacular images with its 8.9 megapixels (effective) Sony 4K image sensor. You get superior, super-sampled pictures with noticeably higher contrast, rich colour reproduction and greater clarity. The camera offers robust built-in recording modes, all with vibrant 4:2:2 colour. Irresistible options include the amazing precision of 16-bit linear RAW 2K/4K recording and high speed shooting at up to 120 fps without cropping.

Multiple recording formats include MPEG-2 HD422, MPEG4 SStP, XAVC 2K/HD and 16-bit RAW 2K/4K**. You can have simultaneous recording on internal high-speed SxS PRO+ memory cards and RAW 2K/4K recording on sleek AXSM™ memory cards using the optional bolt-on AXS-R5 recorder, designed specifically to attach seamlessly to the F55 and F5 cameras. There is also high speed shooting up to120 fps XAVC 2K/HD* internally and 120 fps RAW 2K onto the AXS-R5.

Upgrade Available - AXS-R5

The bolt-on AXS-R5 recorder works with the PMW-F55 and PMW-F5 cameras to record the highest quality 16-bit RAW 2K/4K images. The recorder works with sleek, optional AXSM™ memory cards, which are compatible with an affordable optional USB 3.0 reader, the AXS-CR1 .Once on a PC, the RAW files can be screened using Sony’s free RAW Viewer software. AXSM memory provides a super fast, affordable format for sensational quality recordings.

16-bit RAW 2K/4K recording options for PMW-F55 and PMW-F5 CineAlta cameras

Record RAW at your choice of resolutions: the PMW-F55 and PMW-F5 captures native 4K or beautiful, derived 2K.RAW recording preserves the greatest latitude for colour correction and other post processes. Sony’s 16-bit recording captures more tonal values than the human eye can differentiate.Sony RAW retains 16 times as many Red, Green and Blue gradations as 12-bit RAW and 64 times as many tones per channel as 10-bit recording. Sony 16-bit linear RAW is also the ideal point of entry into the 16-bit linear Academy Color Encoding System (ACES) workflow.

Records onto ASXM™ memory cards

The AXS-R5 recorder works with sleek, high-capacity AXSM™ memory cards, which are compatible with an affordable optional USB 3.0 reader, the AXS-CR1. Once on a PC, the RAW files can be screened using Sony’s free RAW Viewer software. AXSM memory provides a super fast, affordable format for sensational quality recordings.

High speed shooting up to 240 fps 2KRAW with F55 and 120 fps 2K RAW with F5

The AXS-R5 allows you to record up to 240 fps 2K RAW with the F55 and up to 120 fps 2K RAW with the F5, with free planned upgrades, achieving the highest frame rates most productions will need, while retaining exceptional, 16-bit image quality.

Provides simultaneous RAW and on board camera SxS recording

Sony provides a coordinated “off-line, on-line” workflow with simultaneous recording for the F55 and F5 cameras to internal SxS cards and the AXS-R5 Portable Memory Recorder. For seamless conforming in post, you get matching timecode, start frame, stop frame, file names and other metadata.

Real world workflows

Sony understands a fundamental truth: working cameras require practical workflows.That’s why the AXS-R5 is part of a larger production platform that includes affordable media cards, affordable card readers, free RAW Viewer software and compatibility with popular NLEs and finishing tools.

Lightweight modular design to maximise versatility in 2D and 3D

The AXS-R5 is designed to bolt-on seamlessly to the F55 and F5 cameras, allowing the cameras to maintain a sleek, lightweight and ergonomic design. Both recorder and camera chassis are only slightly wider than a typical PL-mount prime lens, perfect for 3D rigs.

Imaging Device (Type): Super 35mm equivalent Single-chip CMOS

Imaging Device (Pixel Count): 11.6 M (total), 8.9 M (effective)

Built-in Filters: Clear, 0.9 (1/8ND), 1.8 (1/64ND)

Sensitivity: (2000 lx, 89.9% reflectance) Video Gamma: T13 @24p (3200K Light source)

ISO Sensitivity: S-Log2 Gamma: ISO 2000 (D55 Light source)

Lens Mount: PL mount (with supplied lens mount adapter)

Flange Focal Length: FZ mount (without supplied lens mount adapter)

Latitude: 14-stop

S/N Ratio: 57dB (Video Gamma, 24p, Noise Suppression OFF)

Shutter Speed: 1/24s to 1/6,000s

Shutter Angle: 4.2to 360(electrical shutter)

Slow Shutter (SLS): 2, 3, 4, 5, 6, 7, and 8-frame accumulation

Slow & Quick Motion Function: XAVC HD/2K: 1-120p (NTSC), 23.98p/29.97p,AVC HD/2K 1-100p (PAL), 25p

White Balance: Preset (3200K, 4300K, 5500K), Memory, ATW

Gain: -3, 0, 3, 6, 9, 12, 18 dB, AGC

Gamma Curve: Standard (x6),HG1, HG2, HG3, HG4, HG7 and HG8,S-Log2 Gamma

Audio Input: CH-1/CH-2: XLR-type 3-pin (female) (x2), Line/Mic/Mic +48V/AES/EBU selectable

Video Output: HD-Y or HD Sync (tri-level) V1.0,Analog Composite (VUP)

Audio Output: Phono jack (CH-1, CH-2)

DC Output: 4-pin (x1), 11 V to 17 V DC (MAX 2.0A) w/ battery adapter

HD-SDI Output: SDI 1/2 Line Output, SDI 3/4 Monitor Output (character on/off)

Timecode Input/Output: TC IN/OUT (x1) switchable

Genlock Input: BNC (x1)

Remote: 8-pin (x1)

HDMI Output: A Type (x1)

USB: USB device, Mini-B (x1),USB host, type-A (x2)

Headphone Output: Stereo mini jack (x1)

Speaker Output: Monaural

Shutter: BNC (x1)

Wi-Fi: USB host, type-A (x1)

Media Type: ExpressCard/34 slot (x2),SD card slot (x1)

Recording Format(Video): MPEG-2 Long GOP,HD 422 mode: CBR, 50 Mbps max, MPEG-2 422P@HL

Recording Format (Audio):Linear PCM (2 ch, 24-bit, 48-kHz),

Recording Frame Rate: XAVC 2K: 2048 x 1920,23.98p/24p/25p/29.97p/50p/59.94p,XAVC HD 1920x1080,8p/25p/29.97p/50p/59.94pMPEG4 SStP: 1920 x 1080, 23.98p/24p/25p/29.97p,MPEG2 HD: 1920x1080, 50i/59.94i/23.98p/25p/29.97p, MPEG2 HD: 1280 x 720, 50p/59.94p

Battery Operating Time: Approx. 160 min with BP-FL75,Approx. 230 min with BP-GL95A

Power Requirements: DC 12 V (11 V to 17.0 V)

Power Consumption: Approx .24 W (while recording XAVC HD 60p, EVF Off, LCD monitor Off, HD-SDI On)

Operating Temperature: 0C to 40C

Storage Temperature: -20C to +60C

Dimensions (WxDxH):15.1 cm x 21.0 cm x 18.9 cm

8.9MP Super 35mm CMOS Image Sensor

Internal 2K and HD Recording

4K/2K RAW Recording to Optional Recorder

2K RAW up to 240fps; 1080p up to 180fps

SStP SR at 4:4:4 Internally

14 Stops of Dynamic Range

Built-in 10-Bit 4:4:4 at 440 Mbps

Native FZ-Mount and PL-Mount Adapter

SxS Pro+ Media Cards

Olivine Lithium Iron Phosphate Batteries

In The Box:-

Sony Pmw-F5 Full Hd 4K Camera, 1750 Hours

Monocular Viewfinder

Vocas Top Handle & Top Mic Attachment

Vocas Shoulder Mount

V-lock Plate

PL Mount Adapter

2x SXS - XQD Card Caddy's
