Used

Sony PXW-x400 Camcorder w/ EL-20 VF, 5000 Hours, used

code: FMP60647RJSH

Now £4,400.00
Secure yours with a deposit of
RRP: £4,500.00
|
|
Save: £100.00 Save 2%

Status | Usually dispatched within 24 hours

Add to Compare

Description
Specification
Included In Box
Reviews
(0)

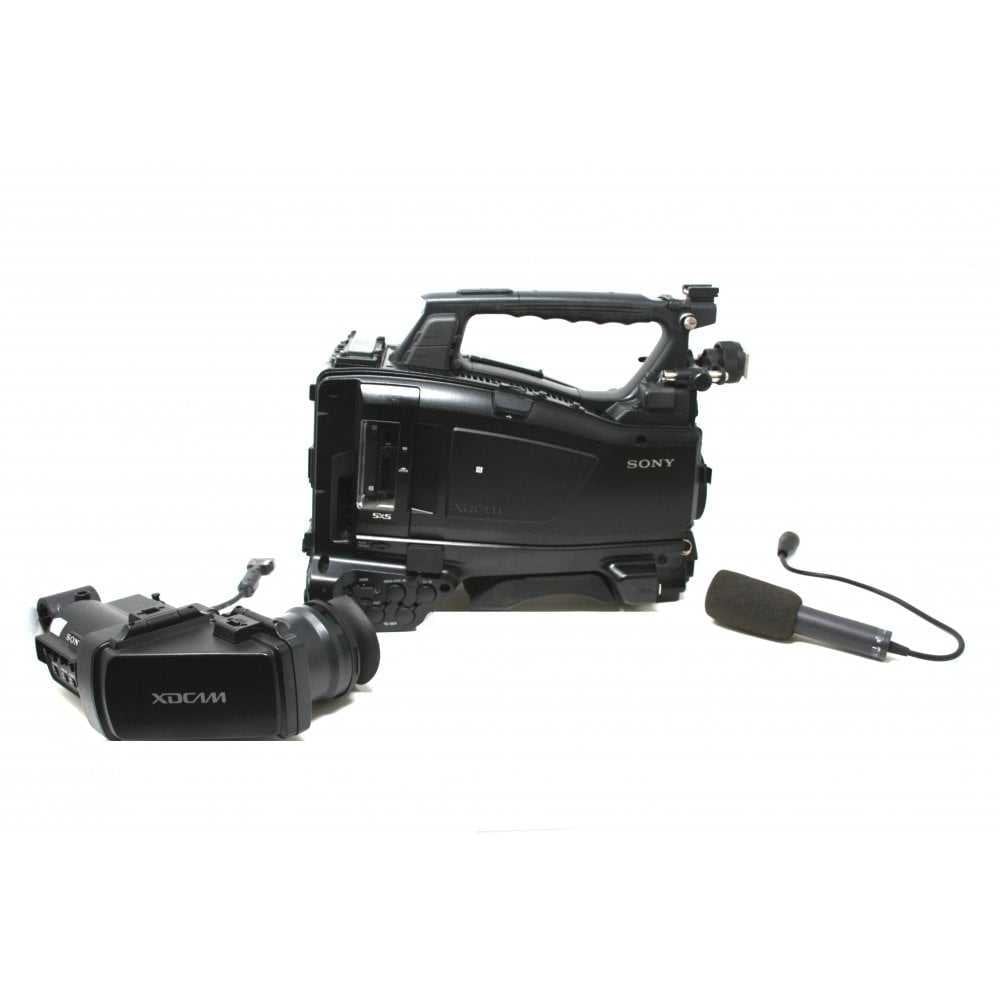

SONY PXW-x400 Camcorder w/ EL-20 VF, 5000 Hours, used(FMP60647RJSH)

Note : Pictures are for illustrative purposes only.

Good Condition, 3 Months warranty

The PXW-X400 is an advanced shoulder camcorder that records a variety of professional broadcast quality formats including XAVC-L at 50p and 59.94p. The camcorder offers exceptional weight balance and low power consumption alongside excellent networking features and high picture quality. The reengineered design dramatically reduces the load on the operator’s right-arm. It supports Sony viewfinders including the QHD LCD CBK-VF02 and optionally available Full HD OLED HDVF-EL30 and HDVF-EL20. The camcorder also offers improved network connectivity, with built-in wireless module, embedded RJ-45 Ethernet 100B-T connector and Near Field Communication (NFC) function** for easy Wi-Fi setup and operation via a mobile or tablet with Sony’s Content Browser Mobile™ application. SD or HD-SDI (up to 1.5G) input supports pool feed recording.

High quality XAVC Long GOP recordings at 50p and 59.94p operations

The PXW-X400 supports a variety of codecs from SD to HD, including MPEG HD 422 50 Mbps in MXF (Material eXchange Format), which is widely accepted by major broadcasters worldwide, and XAVC Intra frame and XAVC Long GOP codecs. XAVC technology is based on the MPEG-4 AVC/H.264 standard, which provides an exceptional performance compression technology. XAVC provides higher picture quality and bit-depth, thus offers extended grading possibilities.

High sensitivity image making

The camcorder’s three 2/3-inch type Exmor CMOS sensors provide superb image quality with sensitivity of F12/F13 and a signal to noise ratio of 62dB. The camcorder’s digital extender offers x2, x3 or x4 operation.

Improved ergonomic design for best-in-class weight-balance

The camcorder has been redesigned to improve the weight and handling capabilities compared to predecessor models. The lighter lens grip resolves any front-heavy issues and dramatically reduces the load on the right-arm. This makes it easier to shoot for long periods and offers more stable images.

Supports Full HD OLED viewfinders*

Embedded RJ-45 connector

An embedded RJ-45 Ethernet 100B-T connector on the right side of the camcorder provides a robust and fast network connection that can be utilised for file transfer, live streaming and camera control from a web browser.

Near Field Communication* (NFC) function

A Near Field Communication (NFC) function allows easy, one-touch wireless LAN connection to a smartphone or tablet device without manual setting of the network parameters.

NFC allows close-range wireless communication between the PXW-X400 and an NFC-equipped smartphone or tablet device. This function will be available in June2016.

Built-in wireless module with Content Browser Mobile™

The camcorder’s built-in wireless module gives you more mobility with no cable needed, enabling proxy recording and file transfer or live streaming. In file transfer mode, high-resolution files and XAVC Proxy files can be transferred over wireless connection to cloud or FTP server thanks to Content Browser Mobile* (CBM) application. In “Push” mode, the CBM application enables users to monitor the currently shot video and to wirelessly control camcorder settings such as focus, zoom, iris, white balance, REC START/STOP, and more. With Content Browser Mobile V2.0 proxy trim, proxy partial clip upload, and logging are available. “In streaming” mode, high quality live streaming is provided by the advanced Sony QoS technology embedded in the camcorder and in the PWS-100RX1 network RX station .Non QoS live streaming is also possible with a third-party receiver or VLC player.

The CBM application can be downloaded from the Google Play Store or App Store.

Dedicated ONLINE button for easy network connection

A dedicated button gives simple on-off control of Network Client Mode, Auto Upload (Proxy) and Live Streaming.

Pool feed (SDI input)

An SD or HD-SDI (up to 1.5G) signal can be recorded by the camcorder, a useful function to record an external feed from another camera.

Lower power consumption

By optimising the design of the hardware, the lightweight PXW-X400 has a low power consumption of 22W (when the wireless function if off, without lens and viewfinder). This enables continuous recording operation for approximately 240 minutes with Sony’s BP-GL95A optional standard-type battery.

Simultaneous Recording on two SxS cards

The PXW-X400 offers a simultaneous recording function for peace-of-mind production. Recording is available on two SxS cards simultaneously as a backup measure within the same codec and operating point* when using the following recording formats; XAVC-Intra, XAVC-Long, MPEG HD422, or MPEG HD420.

Simultaneous recording with proxy file is supported in all combinations with the above formats an SD card.

Flexible camera system operation

The CA-FB70 Optical Fiber Camera Adaptor or the CA-TX70 Digital Triax Camera Adaptor can be attached to the PXW-X400 for live camera operation. The CA-FB70 enables the PXW-X400 to transmit signals via an optical fibre cable up to 250 m between the CA-FB70 and HXCU-FB70 Optical Fibre Camera Control Unit (CCU) with power and signal transmission. The CA-TX70 transmits signals via triax cable up to 600 m* between the CA-TX70 and HXCU-TX70 Digital Triax Camera Control Unit.

Mass Approx. 3.6 kg (body only without lens, VF, Mic)

Approx. 7 lb 15 oz (body only without lens, VF, Mic)

Dimensions (W x H x D) 150 x 269 x 332 mm (excluding protrusions, body only)

6 x 10 5/8 x 13 1/8 inches (excluding protrusions, body only)

Power Requirements DC 12 V (11 V to 17.0 V)

Power Consumption Approx. 22 W (while XAVC recording, colour LCD on)

Approx. 24 W (while XAVC recording, CBK-VF02 viewfinder and colour LCD on)

Operating Temperature 0° C to 40° C

32° F to 104° F

Storage Temperature -20°C to +60°C

-4°F to +140°F

Continuous Operating Time Approx. 200 min with BP-L80S,

Approx. 240 min with BP-GL95A

Recording Format (Video) XAVC Intra:

XAVC-I mode:

MPEG-4 AVC/H.264, CBG, Max.112 Mbps

XAVC Long:

XAVC-L 50 Mode:

MPEG-4 AVC/H.264, VBR, Max. 50 Mbps

XAVC-L 35 Mode:

MPEG-4 AVC/H.264, VBR, Max. 35 Mbps

XAVC-L 25 Mode:

MPEG-4 AVC/H.264, VBR, Max. 25 Mbps

MPEG HD422:

HD422 mode: MPEG-2 422P@HL, CBR, Max.50 Mbps

MPEG HD:

HQ mode: MPEG-2 MP@HL, VBR, Max.35 Mbps

MPEG IMX: *2

MPEG-2 422@ML, CBR, 50 Mbps

DVCAM:

CBR, 25 Mbps

Recording Format (Audio) XAVC Intra: LPCM 24 bits, 48 kHz, 4 channels

XAVC Long: LPCM 24 bits, 48 kHz, 4 channels

MPEG HD422: LPCM 24 bits, 48 kHz, 4 channels

MPEG HD: LPCM 16 bits, 48 kHz, 4 channels

MPEG IMX: LPCM 16/24 bits, 48 kHz, 4 channels *2

DVCAM: LPCM 16 bits, 48 kHz, 4 channels

Recording Format (Proxy Video) XAVC Proxy: AVC/H.264 Main Profile 4:2:0 Long GOP, VBR

1280 × 720, 9 Mbps (Target Rate)

1280 × 720, 6 Mbps (Target Rate)

640 × 360, 3 Mbps (Target Rate)

480 × 270, 1 Mbps, 500 kbps (Target Rate)

Recording Format (Proxy Audio) XAVC Proxy: AAC-LC, 128 kbps, 2 channels

Recording/Playback Time (XAVC Intra, XAVC Long) XAVC-I mode:

Approx. 120 min. with 128 GB SxS card*5

Approx. 60 min. with 64 GB SxS card*5

Approx. 30 min. with 32 GB SxS card*5

XAVC-L 50 mode:

Approx. 240 min. with 128 GB SxS card*5

Approx. 120 min. with 64 GB SxS card*5

Approx. 60 min. with 32 GB SxS card*5

XAVC-L 35 mode:

Approx. 340 min. with 128 GB SxS card*5

Approx. 170 min. with 64 GB SxS card*5

Approx. 85 min. with 32 GB SxS card*5

XAVC-L 25 mode:

Approx. 440 min. with 128 GB SxS card*5

Approx. 220 min. with 64 GB SxS card*5

Approx. 110 min. with 32 GB SxS card*5

Recording/Playback Time (MPEG-2 HD422/HD420) MPEG HD422 mode:

Approx. 240 min. with 128 GB SxS card*5

Approx. 120 min. with 64 GB SxS card*5

Approx. 60 min. with 32 GB SxS card*5

MPEG HD420 HQ mode:

Approx. 360 min. with 128 GB SxS card*5

Approx. 180 min. with 64 GB SxS card*5

Approx. 90 min. with 32 GB SxS card*5

Recording/Playback Time (MPEG IMX 50M) Approx. 240 min. with 128 GB SxS card*2 , *5

Approx. 120 min. with 64 GB SxS card*5

Approx. 60 min. with 32 GB SxS card*5

Recording/Playback Time (DVCAM) Approx. 440 min. with 128 GB SxS card*5

Approx. 220 min. with 64 GB SxS card*5

Approx. 110 min. with 32 GB SxS card*5

Recording Frame Rate XAVC Intra (XAVC-I mode):

1920 × 1080: 59.94i, 50i, 29.97p, 25p, 23.98p

1280 × 720: 59.94p, 50p

XAVC Long (XAVC-L 50 mode):

1920 × 1080: 59.94p, 50p, 59.94i, 50i, 29.97p, 25p, 23.98p

1280 × 720: 59.94p, 50p

XAVC Long (XAVC-L 35 mode):

1920 × 1080: 59.94p, 50p, 59.94i, 50i, 29.97p, 25p, 23.98p

Recording Frame Rate XAVC Long (XAVC-L 25 mode):

1920 × 1080: 59.94i, 50i

MPEG HD422:

1920 × 1080: 59.94i, 50i, 29.97p, 25p, 23.98p

1280 × 720: 59.94p, 50p, 29.97p, 25p, 23.98p

MPEG HD420:

1920 × 1080: 59.94i, 50i, 29.97p, 25p, 23.98p

1440 × 1080: 59.94i, 50i

1280 × 720: 59.94p, 50p

MPEG IMX: *2

720 × 486: 59.94i

720 × 576: 50i

DVCAM:

720 × 480: 59.94i

720 × 576: 50i

Lens:

Lens Mount Sony 2/3-inch type bayonet mount

Zoom Ratio PXW-X400KF Only: 16x (optical), servo/manual

PXW-X400KC Only: 20x (optical), servo/manual

Focal Length PXW-X400KF Only: f = 8 - 128 mm

5mm equivalent: f=31.5 - 503 mm)

PXW-X400KC Only: f = 8.2 - 164 mm

(35mm equivalent: f=32.3 - 645.1 mm)

Iris PXW-X400KF/PXW-X400KC Only: F1.9 to F16 and Close, Auto/Manual selectable

Focus PXW-X400KF Only: AF/MF/Full MF selectable *3

PXW-X400KF Only: 800 mm to ∞ (MACRO OFF)

PXW-X400KF Only: 50 mm to ∞ (MACRO ON, Wide)

PXW-X400KC Only: Full manual focus

PXW-X400KC Only: 900 mm to ∞ (MACRO OFF)

PXW-X400KC Only: 10 mm to ∞ (MACRO ON, Wide)

Filter Diameter M82 mm, pitch 0.75 mm (on lens)

Input/Output:

Genlock Input BNC (x1), 1.0 Vp-p, 75 Ω, unbalanced

Timecode Input BNC (x1), 0.5 V to 18 Vp-p, 10 kΩ

SDI Input SMPTE ST292/ST259 standard compliant, 4-channel audio

1.5G

Poolfeed Recording (upto 1080 59.94i)

Audio Input CH1/CH2: XLR-type 3-pin (female) (x2), Line/Mic/Mic/+48V selectable

LINE: +4, 0, -3 dBu

AES/EBU: AES3 compliant

MIC: -70 dBu to -30 dBu

Mic Input XLR-type 5-pin, female: -70 dBu to -30 dBu

WRR (Wireless Microphone Receiver) D-sub 15-pin

Analog CH1: -40 dBu

Digital CH1/CH2: -40 dBFS

SDI Output Output 1/2: BNC (x2), 0.8 Vp-p,

unbalanced, 3G HD/1.5G HD/SD selectable,

SMPTE ST424/ST425 Level-A/B, ST292/ST259 standard compliant,

4-channel audio

Video Output BNC, SD analog composite/HD-Y selectable

Audio Output XLR-type 5-pin, male, +4/0/-3 dBu (balanced)

Timecode Output BNC, 1.0 Vp-p, 75 Ω

Earphone Output Stereo mini jack (x1)

-11 dBu reference level output, maximum monitor volume, 16 Ω load

Speaker Output Monaural, 300 mW output

DC Input XLR-type 4-pin, male, 11 V to 17 V DC

DC Output Round type 4-pin, 11 V to 17 V DC, 1.8 A maximum rated current

Lens 12-pin, lens power source (11 V to 17 V DC, 1.0 A maximum rated current)

Remote 8-pin

Light 2-pin

Camera Adaptor D-sub, 50-pin (x1)

Ethernet RJ-45 (x1), 100BASE-TX: IEEE 802.3u, 10BASE-T: IEEE 802.3

USB USB 3.0/2.0 4-pin (type A), USB2.0 4-pin (type B), USB2.0 4-pin (type-A)

HDMI A type, 19-pin (x1)

Viewfinder 20-pin IF for HDVF Series Viewfinder, and 26-pin IF for CBK-VF02, HDVF-L750

Audio Performance:

Frequency Response 20 Hz to 20 kHz (±3 dB or less)

Dynamic Range 90 dB (typical)

Distortion 0.08% or lower (-40 dBu input level)

Headroom 20 dB (factory default) (20, 18, 16, 12 dB), EBUL

Camera Section:

Imager 3-chip 2/3-type "Exmor" Full HD CMOS

Effective Picture Elements 1920 (H) x 1080 (V)

Optical System F1.4 prism system

Built-in Optical Filters 1: Clear, 2: 1/4ND, 3: 1/16ND, 4: 1/64ND

Shutter Speed (Time) PXW-X400KF Only: 59.94i/p, 50i/p: 1/60 sec. to 1/2000 sec. + ECS *4

PXW-X400KF Only: 29.97p: 1/40 sec. to 1/2000 sec. + ECS *4

PXW-X400KF Only: 25p: 1/33 sec. to 1/2000 sec. + ECS *4

PXW-X400KF Only: 23.94p: 1/32 sec. to 1/2000 sec. + ECS *4

PXW-X400/PXW-X400KC Only: 59.94i/p, 50i/p: 1/60 sec. to 1/2000 sec. + ECS *3

PXW-X400/PXW-X400KC Only: 29.97p: 1/40 sec. to 1/2000 sec. + ECS *3

PXW-X400/PXW-X400KC Only: 25p: 1/33 sec. to 1/2000 sec. + ECS *3

PXW-X400/PXW-X400KC Only: 23.94p: 1/32 sec. to 1/2000 sec. + ECS *3

Shutter Speed (Slow Shutter (SLS) 2, 3, 4, 5, 6, 7, 8, 16-frame accumulation

Slow & Quick Motion Function 720p: Frame rate selectable from 1 fps to 60 fps

1080p: Frame rate selectable from 1 fps to 60 fps

Sensitivity (2000 lx, 89.9% reflectance) F12 (typical) (1920 x 1080/59.94i mode)

F13 (typical) (1920 x 1080/50i mode)

Minimum Illumination 0.013 lx (F1.4, +42 dB, 16-frame accumulation)

White Balance Preset (3200K), Memory A, Memory B/ATW

Gain Selection -3, 0, 3, 6, 9, 12, 18, 24, 30, 36, 42 dB

S/N Ratio 62 dB (Y) (Noise Suppression On)

Horizontal Resolution 1,000 TV lines or higher (1920 x 1080i mode)

Digital Extender x2, x3, x4

Viewfinder:

Viewfinder PXW-X400KF/PXW-X400KC Only: 3.5-inch *18 type colour

LCD monitor: 960 (H) x 540 (V), Quarter HD Size

Other Equipment:

Built-in LCD Monitor Colour LCD, Screen size: 8.8 cm (3.5 inch) diagonal*18 ,

Aspect ratio: 16:9, Number of pixels: 960 (H) × 540 (V)

for Video display, Audio level, TC, battery and media remaining capacity

Built-in Speaker (x1)

Media SxS Card Slots Form factor: Express Card/34, Number of slots: 2,

Connector: PCMCIA Express Card compliant,

Write rate: 50 Mbps or higher, Read rate: 50 Mbps or higher

Media SD Card Slots Proxy (1), Utility (1)

GPS Yes

Built-in Network Module Yes

NFC Yes

Supported Media:

High Resolution Video/Audio SxS card

XQD card (with XQD ExpressCard Adapter, QDA-EX1)

SDXC card (with XQD ExpressCard Adapter, MEAD-SD02)

Proxy Video/Audio and Utility SDXC/SDHC

In The Box:-

1x SONY PXW-x400 Camcorder w/ EL-20 VF, 5000 Hours

Be the first to review PXW-x400 Camcorder w/ EL-20 VF, 5000 Hours, used. Write a review ›
