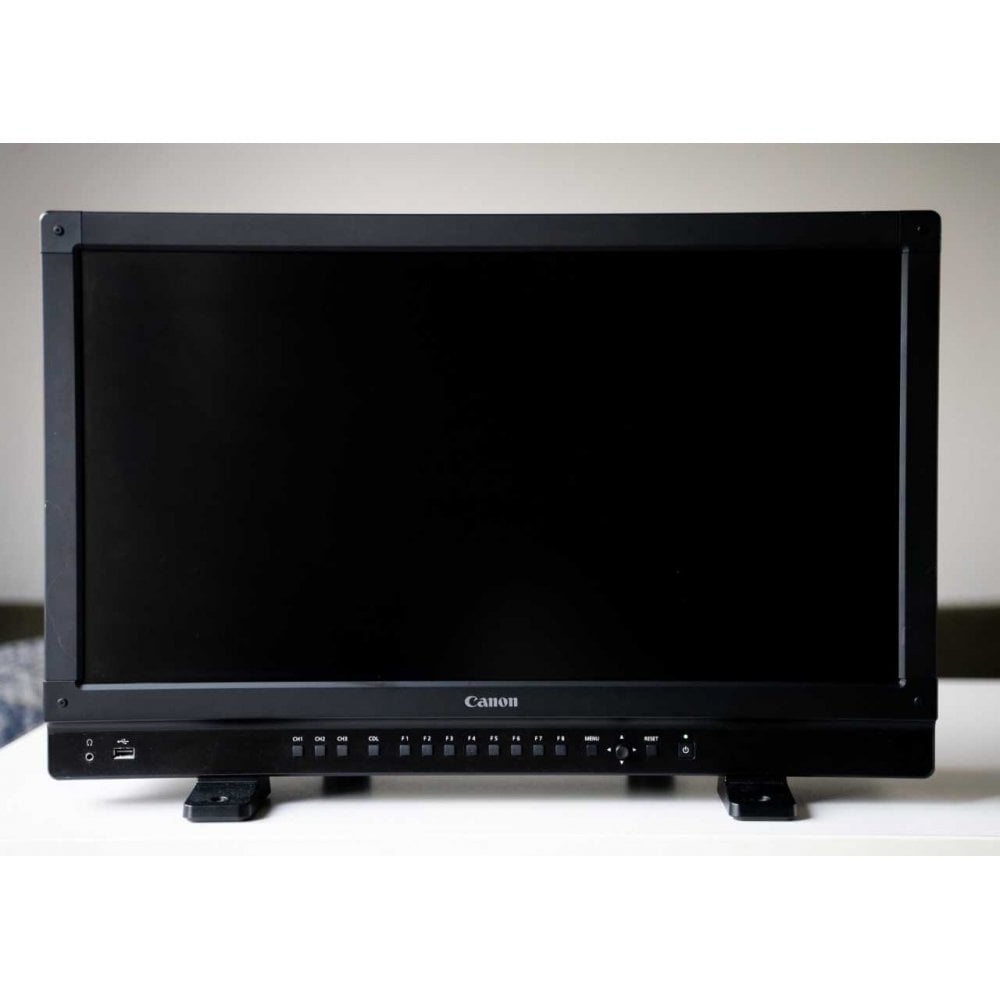

Canon DP-V2420 4K Reference Monitor, used

Canon DP-V2420 4K Reference Monitor, used(FMP60646JPBR)

Good Condition, 3 Months warranty

The Canon DP-V2420 4K Reference Display is Canon's flagship 24" model and can satisfy the High Luminance performance required for HDR workflows. Sharing many of the outstanding features of the DP-V2410 4K Reference Display, the DP-V2420 adds additional versatility and functionality. It qualifies as a Dolby Vision mastering monitor (supporting SMPTE ST 2084's gamma curve) as well as the proposed HLG (Hybrid Log-Gamma) broadcast HDR standards. This display can be ideal for maximum flexibility during any stage of the production and post-production process, and essential for monitoring HDR workflows.

The innovative Canon-designed RGB LED backlight with its 10-bit IPS panel insures a wide-viewing angle, and the anti-glare coating helps improve on-set visibility. It also features a specially developed image-processing engine to help produce uniform brightness. The DP-V2420 utilizes the same high image quality technology found in Canon's other reference displays so you can rely on a consistent look throughout the entire workflow, using any combination from the Canon Display line

As post processes move on-set or near-set, the DP-V2420 works with a variety of workflows, supporting the ability to internally debayer the Canon Cinema EOS 4K RAW signal output from the Cinema EOS C500 and Cinema EOS C300 Mark II cameras for direct display while looping this signal to an external recorder. This provides a flexible companion to your other Canon equipment and allows you to build a simple but sophisticated on-set Canon workflow. Importantly, the DP-V2420 also allows you to verify the looks of the ALEXA SXT cameras made by ARRI as well supporting a linkup to ARRI's image quality settings and other features such as metadata and area markers.

The DP-V2420 features an aluminium frame design, offering rigidity and strength. Thoughtful ergonomic design including an anti-tip stand, function buttons on the front of the main unit, and built-in easy set-up transport handles, means that the DP-V2420 allows for portability and multi-purpose use, whether for on-set live "video village" monitoring; colour grading, for viewing dailies, or for use in post suites or mobile 4K broadcast production-control rooms.

Panel type      IPS LCD panel

Screen size     24 inch（61.1cm）

Aspect Ratio    17:9

Resolution      4096 x 2160

Active display area     Approximately 540.7 x 285.1mm

Pixel Pitch     132μm / 193ppi

Panel driver    1024 gradations 10-bit for each RGB color

IMAGE QUALITY

Brightness      Standard: 100cd/m2

Viewing angle (Up, Down, Left, Right)   89° (contrast ratio 10 : 1 or higher)

Surface treatment       Anti-glare Coating

GENERAL

Backlight type  RGB LED, Matrix Array

Power   Rated Voltage: AC100～240V

Rated Frequency: 50/60Hz

Power Consumption       At maximum load (including change in brightness through aging): Approx. 510 W

At factory shipment: Approx.180 W

Environmental Conditions

Operating

Temperature and humidity: 0 － 40 ℃ (32 － 104 °F) (20 – 85 % no condensation)

Recommended: 15 － 30 ℃ (59 － 86 °F)

Pressure: 700－1060 hPa

Storage/Transporting:   Temperature and humidity: -20 – 40 °C (-4 – 104 °F), （10 – 85 ％ RH no condensation）

41 – 60 ℃ (105 – 140 °F), (10 – 30 ％ RH no condensation）

Pressure: 700 – 1060 hPa

Dimensions (width x height x depth)     With stand: Approx. 593.6 x 398.6 x 235mm

Display unit only: Approx. 593.6 x 377.8 x 195mm

Weight: Approx.19kg

Mounting Hole Pitch     VESA standard200x100mm 6 points

In the box:

1 x Canon DP-V2420 4K Reference Monitor, used
