3 Months Warranty - May look cosmetically poor but it functions as it should, no issues.
Recent years have witnessed expansions in both HD production and the range of program genres. Within this environment the worldwide popularity of the HJ22ex7.6B lens as a flexible multipurpose lens exhibiting high optical performance and ease of operation has grown significantly. The combination of a generous 22x zoom ratio and a wide 7.6mm field of view meets numerous challenging production applications that include dramas, documentaries, sports, news etc.
A newly developed digital drive unit has further streamlined the lens ergonomics to further empower camera operator shooting flexibility. The new drive unit will be identified with an “A” at the end of the model name - such as IRSE A or IASE A.
HJ22ex7.6B IRSE / IASE
Zoom Ratio: 22x
Built-in Extender: 2.0x
Range of Focal Length: 7.6~168mm
(with Extender): 15.2~336mm (2.0x)
Maximum Relative Aperture: 1:1.8 at
7.6~114.1mm
1: 2.65 at 168mm
(with Extender): 1:3.6 at 15.2~228.2mm
1:5.3 at 336mm (2.0x)
Angular Field of View: 4:3 Aspect Ratio 60.1°x46.9° at 7.6mm
(with Extender) (8.8 x 6.6mm) 3.0°x2.25° at
168mm
32.3°x24.5° at 15.2mm
1.5°x1.13° at 336mm (2.0x)
16:9 Aspect Ratio 64.6°x39.1° at 7.6mm
(9.6 x 5.4mm) 3.27°x1.84° at 168mm
35.1°x20.1° at 15.2mm
1.64°x0.92° at 336mm (2.0x)
Minimum Object Distance (M.O.D.): 0.85m (10mm with Macro)
Object Dimensions at M.O.D.: 4:3 Aspect Ratio 92.5x69.4cm at 7.6mm
(with Extender) (8.8 x 6.6mm) 4.25x3.19cm at
168mm
46.3x34.7cm at 15.26mm
2.13x1.6cm at 336mm (2.0x)
16:9 Aspect Ratio 100.6x56.6cm at 7.6mm
(9.6 x 5.4mm) 4.60x2.60cm at 168mm
50.3x28.4cm at 15.2mm
2.30x1.30cm at 336mm (2.0x)
Macro: Yes
Size (W x H x L): 164.7x112.1x221.5mm
Weight (Approx): IRSE A 1.81kg(4.00lbs)
IASE A 1.89kg(4.17lbs)
code:
In the Box

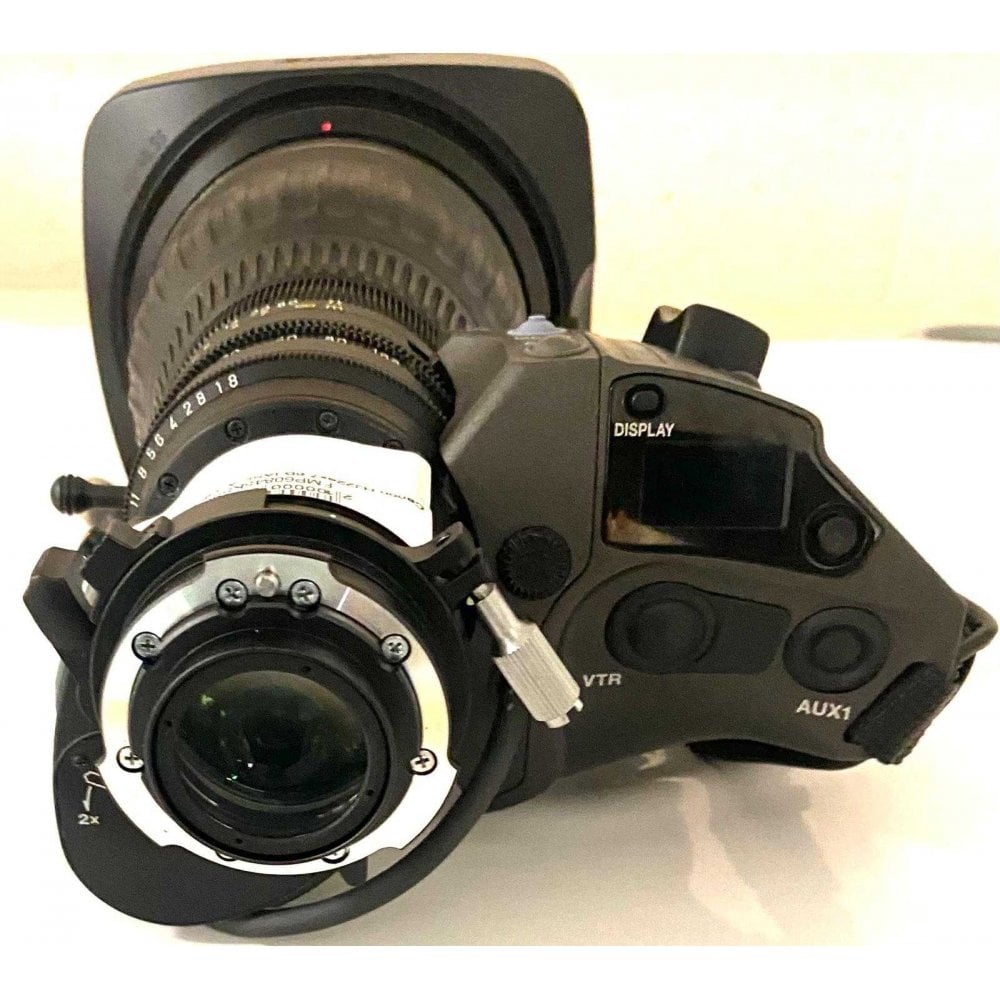

1x Canon HJ22ex7.6b IASE-A HD Tele Zoom Lens, Used
Be the first to review HJ22ex7.6B IASE A, Lens, used. Write a review ›
