Cooke Panchro iClassic Lens Set 18,21,25,75mm, Used

code: FMP60689RPBR

Please login to view our prices

Status | Usually dispatched within 24 hours

Add to Compare

Description
Specification
Included In Box
Reviews
(0)

Cooke Panchro iClassic Lens Set 18,21,25,75mm, Used(FMP60689RPBR)

Excellent Condition-3 month warranty

-The growing demand for vintage Cooke Speed Panchro lenses from the 1920s to 1960s prompted Cooke Optics to introduce a modern redesign of the vintage classic. They are pleased to introduce Cooke Panchro/i Classic, T2.2 to T3.2 Prime lenses.

The new Pancho, that is true to the original look of the now legendary Speed Panchro, recreates the same look and feel of the original with the advantage of modern glass mounted for today’s cameras. And, the new lenses come equipped with /i Technology for frame by frame digital information capture, as do all modern Cooke cine lenses for film and digital capture. The original Cooke Speed Panchro, designed by Horace W. Lee in the 1920s, was a cine prime lens that chromatically enhanced an image when filming under restricted illumination. Cooke Speed Panchros combined a relative aperture as wide as f2.0 with an angular field of view and definition previously impossible with much smaller apertures. They quickly gained a worldwide reputation for quality cinema production and were widely used throughout the 20th century.

Technology

The Cooke Panchro/i Classic lenses are supplied with /i Technology that collect detailed lens data for production, VFX and post-production teams and are designed for all PL mounted professional motion picture film and electronic cameras. The /i Technology provides cinematographers and camera operators with vital information on lens setting, focusing distance, aperture and depth-of-field, hyperfocal distance, serial number, owner data, lens type and focal length in both metric and footage measurements, as well as inertial tracking data, shading and distortion data. For zoom lenses, the zoom position is displayed.

18mm Focal Length Lens

T-Stop Range T2.2-T22

Angular Rotation of Iris Scale 90°

Min. Marked Object Distance 200mm in 8inch

Close Focus from Lens Front 111mm in 4.6inch

Angular Rotation to MOD Endstop 270°

Max. Diagonal Angle of View for Super 35 Format 80°

Length from Front of Lens to Lens Mount 87mm in 3.4inch

Max Front Diameter 110mm in 4.33inch

Total Weight 1.6Kg

25mm Focal Length Lens

T-Stop Range T2.2-T22

Angular Rotation of Iris Scale 90°

Min. Marked Object Distance 200mm in 8inch

Close Focus from Lens Front 106mm 4.2inch

Angular Rotation to MOD Endstop 270°

Max. Diagonal Angle of View for Super 35 Format 60°

Length from Front of Lens to Lens Mount 92 mm 3.6 inch

Max Front Diameter 110mm in 4.33inch

Total Weight 1.5Kg

32mm Focal Length Lens

T-Stop Range T2.2-T22

Angular Rotation of Iris Scale 90°

Min. Marked Object Distance 325mm 12inch

Close Focus from Lens Front 181mm 6.3inch

Angular Rotation to MOD Endstop 270°

Max. Diagonal Angle of View for Super 35 Format 50°

Length from Front of Lens to Lens Mount 92 mm 3.6 inch

Max Front Diameter 110mm in 4.33inch

Total Weight 1.2Kg

40mm Focal Length Lens

T-Stop Range T2.2-T22

Angular Rotation of Iris Scale 90°

Min. Marked Object Distance 450mm 16inch

Close Focus from Lens Front 280mm 11.0inch

Angular Rotation to MOD Endstop 270°

Max. Diagonal Angle of View for Super 35 Format 41°

Length from Front of Lens to Lens Mount 118mm 4.6inch

Max Front Diameter 110mm in 4.33inch

Total Weight 1.4Kg

50mm Focal Length Lens

T-Stop Range T2.2-T22

Angular Rotation of Iris Scale 90°

Min. Marked Object Distance 550mm 20inch

Close Focus from Lens Front 380mm 15inch

Angular Rotation to MOD Endstop 270°

Max. Diagonal Angle of View for Super 35 Format 33°

Length from Front of Lens to Lens Mount 118mm 4.6inch

Max Front Diameter 110mm in 4.33inch

Total Weight 1.5Kg

75mm Focal Length Lens

T-Stop Range T2.2-T22

Angular Rotation of Iris Scale 90°

Min. Marked Object Distance 800mm 30inch

Close Focus from Lens Front 593mm 23.3inch

Angular Rotation to MOD Endstop 270°

Max. Diagonal Angle of View for Super 35 Format 22°

Length from Front of Lens to Lens Mount 155mm 6.1inch

Max Front Diameter 110mm in 4.33inch

Total Weight 1.8Kg

All Focal Length Lenses

Maximum Format Cover 18mm, 21mm, 25mm, 27mm, 32mm, 40mm, 50mm: 31.1mm diameter

(Super 35mm format) / 65mm (MACRO), 75mm, 100mm, 135mm, 152mm: Full Frame

Focus Scales Two opposing focus scales - metric or footage. Scales marked from infinity to MOD

Focus Drive Gear 140 teeth 0.8 metric module x 6.0mm wide x 105mm from image plane

Iris Scales Two opposing linear T-scales - whole and third stops marked

Iris Drive Gear 134 teeth 0.8 metric module x 4.0mm wide 83mm from image plane

Internal Front Fitting Filter Internal thread for filter adapter M105 x 0.75 pitch

In the box

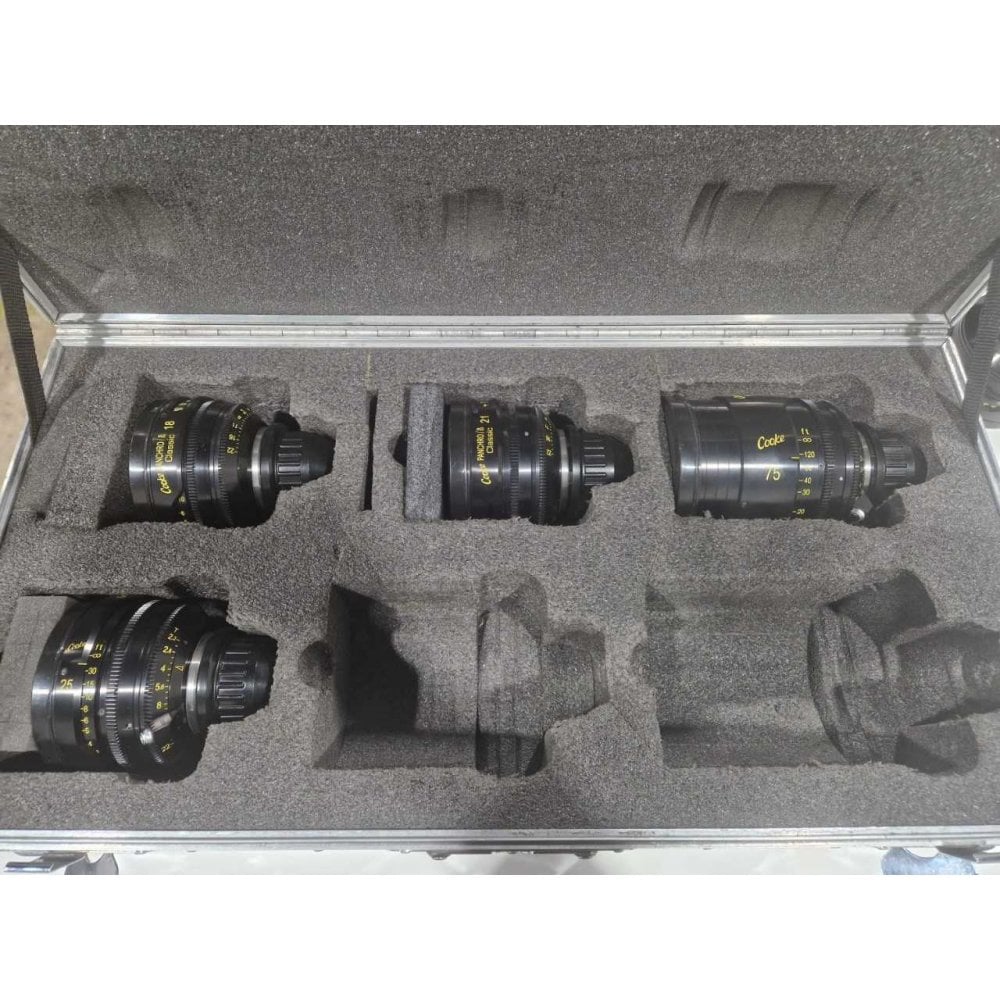

1 x Cooke Panchro iClassic Lens Set 18,21,25,75mm
