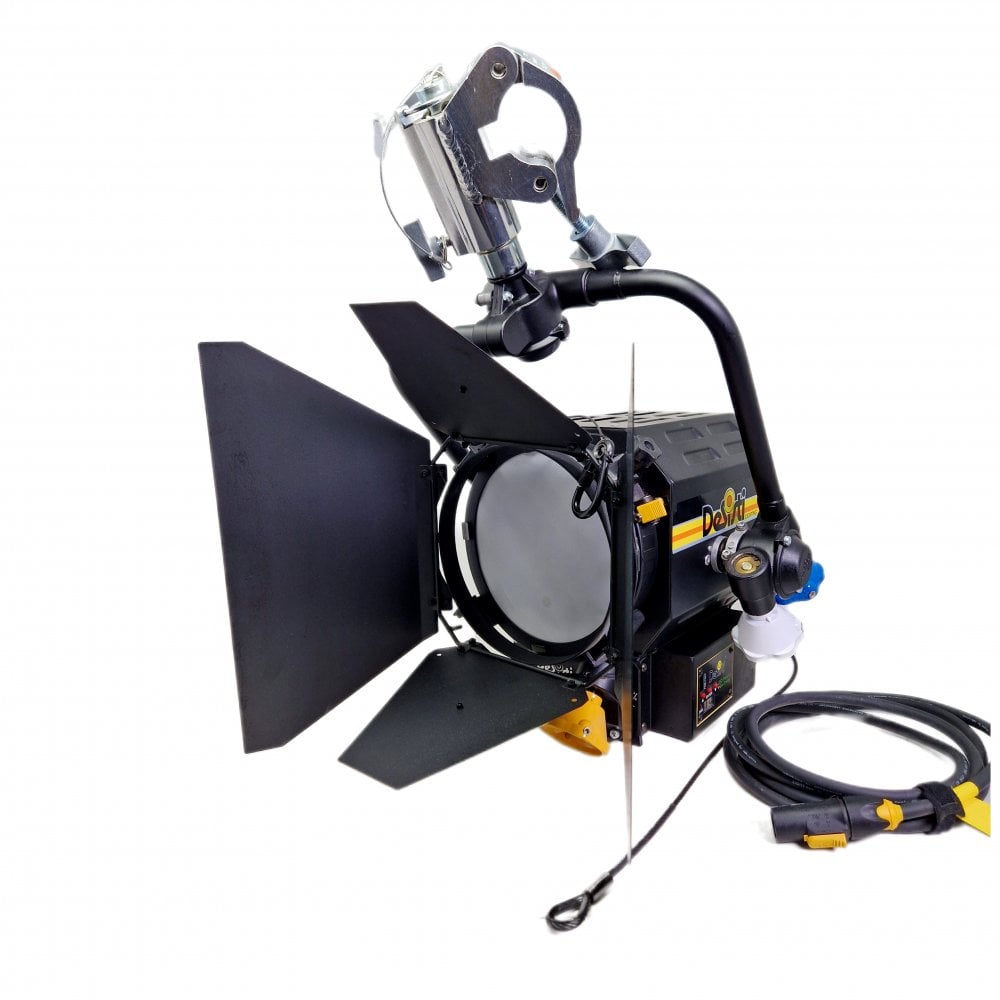

LEONARDO LED 3 10 - Fresnel LED 90w 5600K DESISTI, used

LEONARDO LED 3 10 - Fresnel LED 90w 5600K DESISTI, used

3 Months Warranty, Good Condition

Built on the foundation of their extremely popular Leonardo Fresnel, the DeSisti LED Leonardo 90W Fresnel M.O - Daylight Balanced (120 VAC) offers the same silky controls, system compatibility and sturdy construction but with a twist. This is a 90W cool-running luminaire that provides high output with very low energy consumption in a lightweight form factor.

DeSisti uses Plano Convex and Fresnel optics to give you a 5.9" Fresnel with an impressive 6.0-60 degree beam angle that cuts so cleanly with the included barndoors that you'll find it hard to believe it's not a standard Fresnel. The Leonardo offers both local (manual) and remote DMX dimming that reads out on its digital display. This version of the LED Leonardo 90W is daylight balanced to integrate seamlessly with outdoors on location or with HMI sources. A C-Clamp with Junior receiver is included to hang the light.

Specs:

Light Source

LED

Rating

90W

Color Temperature

Daylight Balanced C.C.T. (Correlated Color Temperature)

Lens

Fresnel and Plano Convex 5.9" (150 mm)

Photometrics

Flood

5,723 lux/532 fc @ 3.3' (1.0 m)

636 lux/59 fc @ 9.8' (3.0 m)

229 lux/21 fc @ 16.4' (5.0 m)

57 lux/5.0 fc @ 32.8' (10 m)

Light beam diameter with beam angle (50% center value): 63°

4.0' (1.23 m) @ 3.3' (1.0 m)

12.1' (3.68 m) @ 9.8' (3.0 m)

20.1' (6.13 m) @ 16.4' (5.0 m)

40.2' (12.26 m) @ 32.8' (10 m)

Light beam diameter with beam angle (10% center value): 74°

4.9' (1.51 m) @ 3.3' (1.0 m)

14.8' (4.52 m) @ 9.8' (3.0 m)

24.7' (7.54 m) @ 16.4' (5.0 m)

49.4' (15.07 m) @ 32.8' (10 m)

Spot

41,202 lux/3,828 fc @ 3.3' (1.0 m)

4,578 lux/425 fc @ 9.8' (3.0 m)

1,648 lux/153 fc @ 16.4' (5.0 m)

412 lux/38 fc @ 32.8' (10 m)

Light beam diameter with beam angle (50% center value): 11°

0.6' (0.19 m) @ 3.3' (1.0 m)

1.9' (0.58 m) @ 9.8' (3.0 m)

3.2' (0.96 m) @ 16.4' (5.0 m)

6.3' (1.93 m) @ 32.8' (10 m)

Light beam diameter with beam angle (10% center value): 19°

1.1' (0.33 m) @ 3.3' (1.0 m)

3.3' (1.0 m) @ 9.8' (3.0 m)

5.5' (1.67 m) @ 16.4' (5.0 m)

11' (3.35 m) @ 32.8' (10 m)

Mounting

1 1/8" (28 mm) stud

DMX 512 Connectors

Yes

Dimming

Manually or via DMX

Beam Angle

6.0 - 60 degrees

Power Requirements

120 VAC

Dimensions

15.5 x 11.4 x 11.4" (39.5 x 29 x 29 cm) without stud

Weight

17 lb (7.8 kg)

In The Box:

1x Leonardo LED 3 10 - Fresnel LED 90w 5600K DESISTI, used
