Leonardo LED 3 70 Fresnel LED 120w DeSisti, used

Leonardo LED 3 70 Fresnel LED 120W DeSisti - Used

Condition: Good, with 3 months warranty.

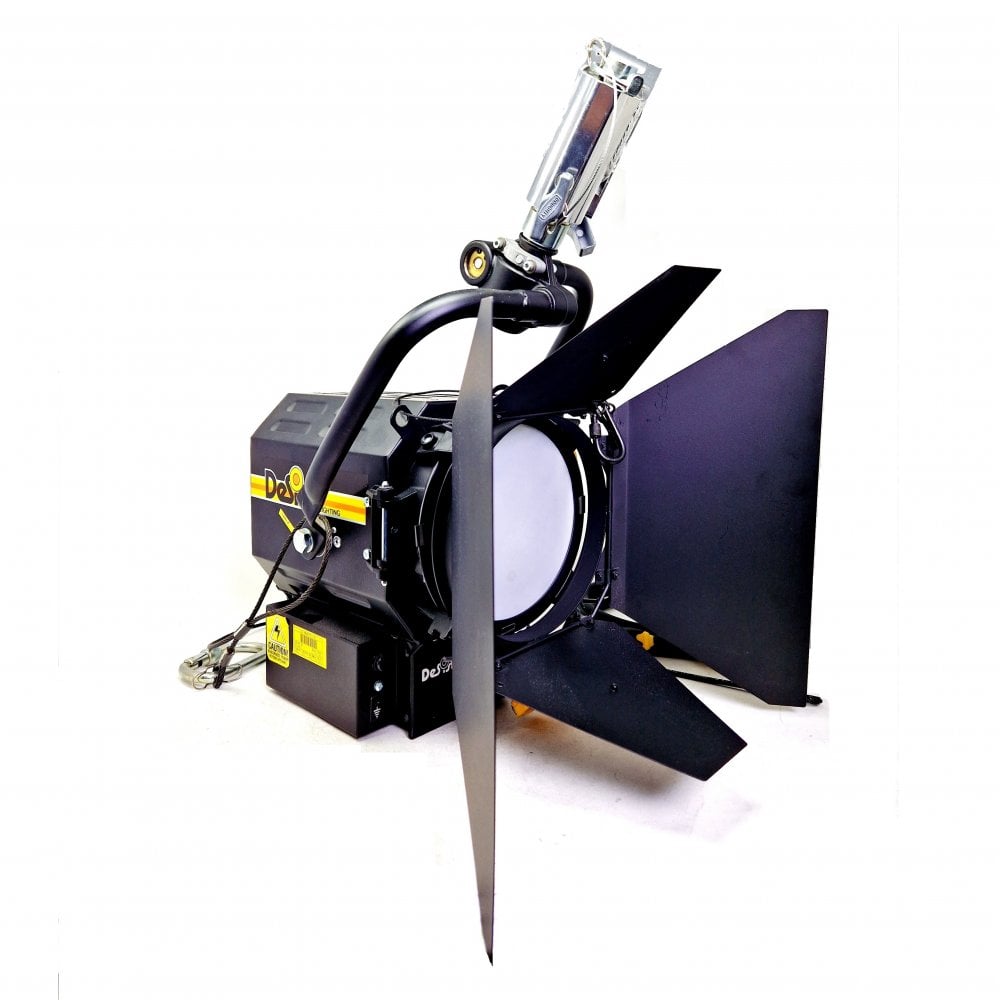

The DeSisti Leonardo Piccolo 120W Spotlight is equipped with a 150mm Fresnel lens, engineered for high efficiency. It utilizes an LED array combined with a sophisticated optical system to maximize light performance.

This compact fixture offers DMX control from 0 to 100%, with minimal color temperature variation. Locally adjustable parameters allow for enhanced flexibility. The light features a Daylight-balanced CCT, offering performance slightly below a 575W HMI Fresnel. It also provides classic spot/flood beam control, along with barn door cutting. The unit comes with a C-Clamp and Junior receiver for easy mounting.

Key Features:

• 150mm high-quality, shock-resistant Borosilicate Fresnel lens mounted on spring supports.
• Durable and lightweight carbon steel housing with a low-glare black epoxy powder coating, reinforced by internal double walls.
• High-Efficiency Active Cooling: Thermal stabilization of the LED operating temperature is automatically managed by an internal sensor and CPU, with a variable speed fan ensuring silent operation. The heat sink keeps the LED temperature stable at a maximum of 149°F (65°C).
• LED-Specific Optics: The steel cable-driven focus mechanism uses Teflon bushings on two guide rods for smooth focusing in any tilt position. The bushings also help clean the guide rails during operation.
• Focusing Flexibility: The fixture’s focus mechanism can be activated from both the front and rear, offering full spot-to-flood adjustment with just 1.5 turns of the knob.
• Accessory Mounting: The unit includes a hinged lens door with a wire guard, as well as brackets for accessories. One bracket features a locking knob and is spring-loaded for secure accessory attachment or fast changes. A second safety bracket with a spring-loaded catch (sold separately) can be added for additional security.
• Secure Installation: Accessories are securely held in place regardless of fixture orientation, allowing for one-handed installation.
• Manual Yoke: The fixture comes with a positive lock manual yoke for easy handling and positioning.
• Power and DMX Daisy Chaining: The unit is equipped with 5-pin XLR DMX input and output (DMX In/Out) connectors, along with 20A Powercon connectors (Power In and Power Out) for the main power supply.

Specifications:

Power LED

• 120 W (DC Current to the LED with no flicker)

Power Supply

• Integrated universal power supply: 160 VAC, 120 V, 50 to 60 Hz

DMX Control

• DMX Data Link: Uses 5-pin XLR for DMX input & output (USITT DMX512-A)
• DMX Channels:
  • 1 channel at 8-bit: Dimmer
  • 2 channels at 16-bit: Dimmer

LED Array

• Lifetime: 50,000 hours with 70% lumen maintenance

Lens Diameter

• 150 mm

Photometrics:

Full Flood:

• Beam Diameter (50% of center value) at:
  • 10.7' (3.2 m): 57°
  • 17.8' (5.4 m): 57°
  • 35.6' (10.8 m): 57°
• Beam Diameter (10% of center value) at:
  • 13.3' (4.0 m): 68°
  • 22.1' (6.7 m): 68°
  • 44.3' (13.4 m): 68°

Full Spot:

• Beam Diameter (50% of center value) at:
  • 2.1' (0.6 m): 12°
  • 3.4' (1.0 m): 12°
  • 6.9' (2.1 m): 12°
• Beam Diameter (10% of center value) at:
  • 3.6' (1.1 m): 21°
  • 6.1' (1.8 m): 21°
  • 12.2' (3.7 m): 21°

Illumination:

Full Flood:

• At 10.7' (3.2 m) and 13.3' (4.0 m): 878 lux, 82 FC
• At 17.8' (5.4 m) and 22.1' (6.7 m): 316 lux, 21 FC
• At 35.6' (10.8 m) and 44.3' (13.4 m): 79 lux, 7 FC

Full Spot:

• At 2.1' (0.6 m) and 3.6' (1.1 m): 5,880 lux, 546 FC
• At 3.4' (1.0 m) and 6.1' (1.8 m): 2,117 lux, 197 FC
• At 6.9' (2.1 m) and 12.2' (3.7 m): 529 lux, 49 FC

Protection

• IP 22 rating

Temperature

• Max Housing Surface Temperature: 158°F (70°C)

Size:

Barndoor:

• Seat Diameter: 7.5" (192.0 mm)
• Ring Diameter: 7.5" (190.5 mm)

Scrims & Color Frame:

• Seat Diameter: 7.3" (187.0 mm)
• Accessory Diameter: 7.25" (184.15 mm)

Dimensions

• 10.9 x 11.3 x 19.0" (276.8 x 287.0 x 482.6 mm)

Weight:

• Fixture: 18.51 lb (8.40 kg)
• Barndoor (4-leaf): 1.38 lb (0.63 kg)
• Color Frame: 2.88 lb (0.13 kg)

In The Box:

• 1x Leonardo LED 3 70 Fresnel LED 120w DeSisti, used
