TV-Logic LVM-074W 7-inch HD LCD Monitor with case, used

TV-Logic LVM-074W 7-inch HD LCD Monitor with case, used(FMP61752RHSH)

3 Months warranty, Excellent condition

The LVM-074W features a high-resolution (1024x600) 7” LED backlit LCD panel housed in lightweight (600 grams) yet durable magnesium alloy case.

An ideal monitor for the latest compact cinema cameras, the LVM-074W offers a wide range of professional features including: Waveform/Vectorscope, built-in HDMI to HD-SDI conversion output, Horizontal and Vertical Image Flip, Focus Assist, Audio Level Meter and more.

A feature unique to the LVM-074W is TVLogic’s new user selectable Temperature Adaptive Color function that measures LCD panel temperature and automatically compensate the white balance drift caused by a cold or hot weather.

?  LCD Size

7 inch

Resolution

1024 x 600 (16 : 9)

Pixel Pitch

0.15 mm

Colour Depth

16.7M (True 8-bit)

Viewing Angle (Typ.)

170?(H) / 170?(V)

Luminance (Max.)

400cd/m2 (center)

Contrast Ratio

800:1

Display Area

154(H) x 90(V) mm

Input

1 x HDMI: HDMI Input

3 x RCA: Analogue Video Input

2 x BNC: SDI 2 Channel Input

Output

1 x BNC: SDI Channel Output (Active Loop Through)

1 x HDMI: HDMI - HDMI, HDMI - SDI (Conversion)

Input Signal

Analogue: CVBS / S-Video / Component Video/ RGB

3G-SDI: 2.97 Gbps

HD-SDI: 1.485Gbps

SD-SDI: 270Mbps

HDMI: 480i / 480p / 720p / 1080i / 1080p

Analogue Input Spec

CVBS: 1.0Vpp (With Sync)

S-Video: 1.0Vpp (Y With Sync), 0.286Vpp (C)

Component Video: 1.0Vpp (Y With Sync), 0.7Vpp (Pb,Pr)

SDI Input Signal Formats

SMPTE-425M-A/B: 1080p (60/59.94/50/30/29.97/25/24/23.98/30sF/29.97sF/25sF/24sF/23.98sF) / 1080i(60/59.94/50)

SMPTE-274M: 1080i (60/59.94/50), 1080p (30/29.97/25/24/24sF/23.98/23.98sF)

SMPTE-296M: 720p (60/59.94/50)

SMPTE-260M: 1035i (60/59.94)

SMPTE-125M: 480i (59.94)

ITU-R BT.656: 576i (50)

Audio In

Embedded Audio / Analog stereo (Phone Jack)

Audio Out

Analogue stereo (Phone Jack) / Internal Speaker (Mixed Mono)

Power

DC 12V

Operating Temperature

0 ?C to 40 ?C

Storage Temperature

-20 ?C to 60 ?

Dimensions without Stand (WxDxH)

20.3 cm x 3.4 cm x 13.1 cm

Dimensions with Stand (WxDxH)

21.7 cm x 6.9 cm x 14.3 cm

Weight

0.6 kg

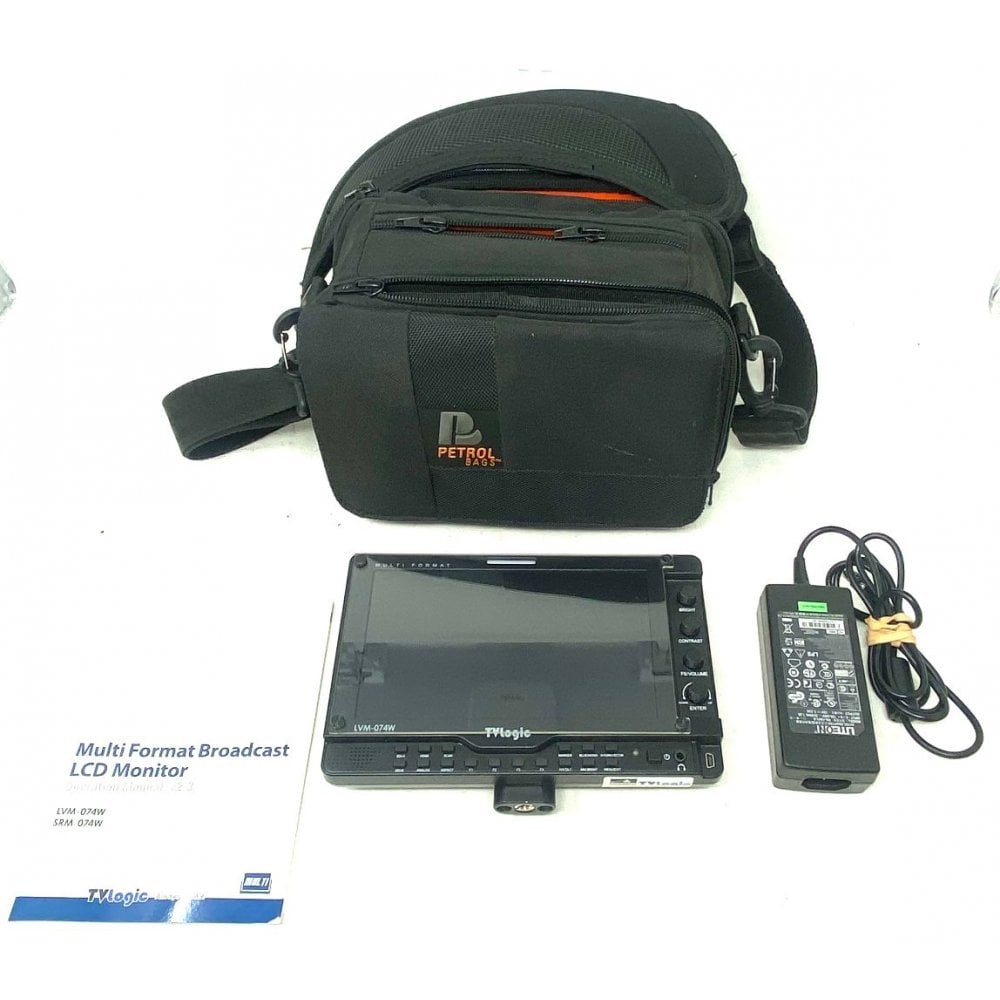

In the box:

TV- Logic LVM-074W 7-inch HD LCD Monitor

Power Adaptor

Manual

Petrol Soft Case
