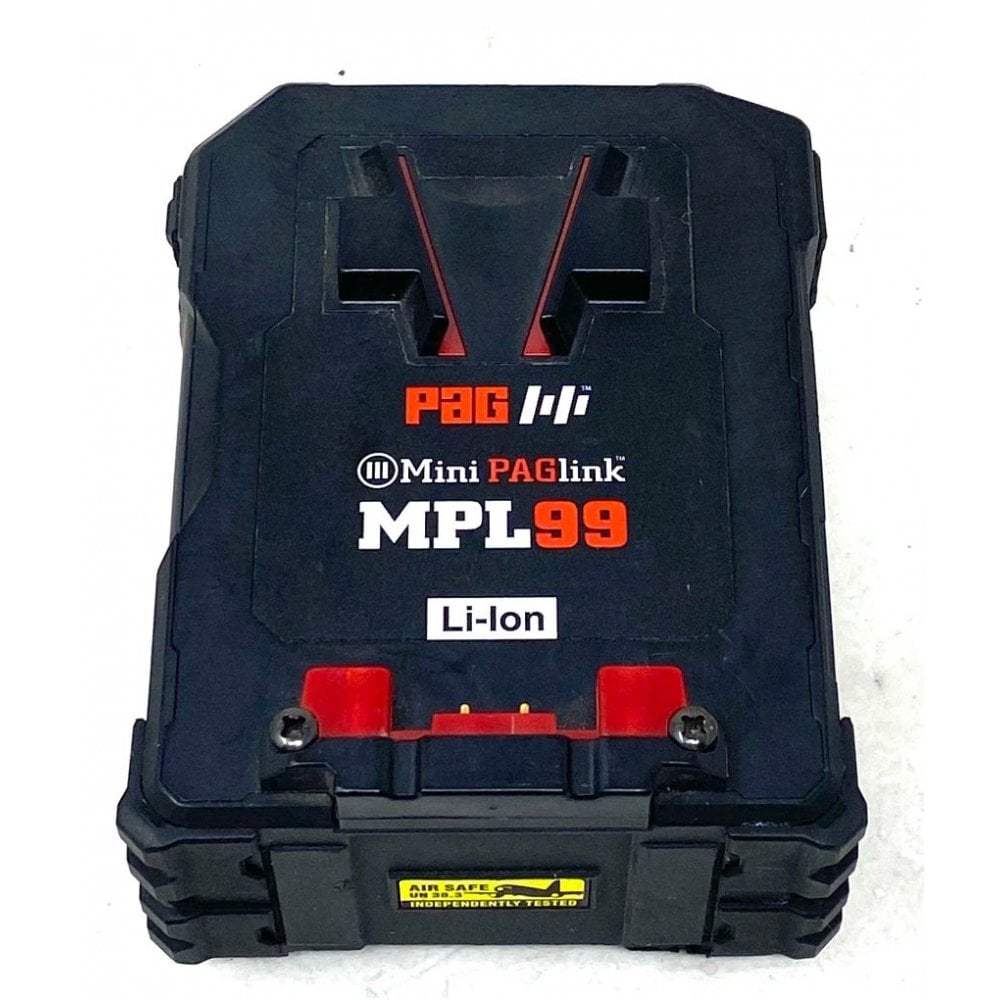

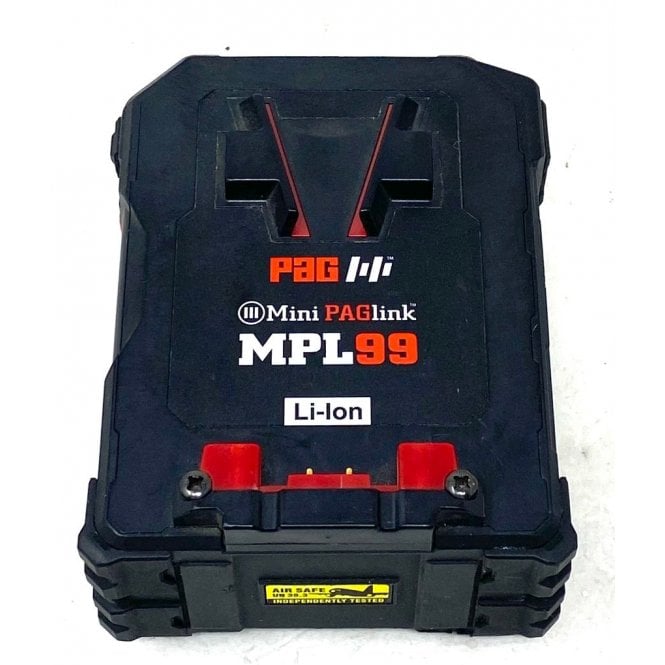

Pag Mini link MPL99 V-Mount Li-Ion Battery 99Wh 14.8V & 6.7Ah, used

PAG Mini PAGlink MPL99 V-Mount Li-Ion Battery 99Wh 14.8V & 6.7Ah, used(FMP61750RHSH)

3 Months warranty, excellent condition

We also sell the micro charger in used which is compatible with these batteries, see below:

https://www.digibroadcast.com/used-equipment-c211/pag-paglink-micro-charger-for-v-mount-batteries-used-p50528

The MPL99V is a 99Wh battery designed for powering smaller 4K cameras and accessories simultaneously. It features intelligent linking technology that allows capacities to be combined, and has a current draw capability of 12A when linked and 10A individually. The battery also has hot-swap capabilities and 2 built-in D-Tap outputs, making it ideal for continuous power on set.

The MPL99V uses the best Li-Ion cells approved by NASA for their mission to Europa, and has a durable design with a 2-year guarantee. It is compatible with various V-Mount chargers and camera data systems, and has a unique display for run-time, capacity, and data. The battery can also be linked with up to 10 Mini PAGlink V-Mount batteries for increased capacity and can be externally updated for firmware.

Connector

V-Mount

Numeric Display

Capacity/state of charge as a percentage, in 1% increments. Run-time, on-load, expressed in hours and minutes, in 1 minute increments. Battery data: voltage, temperature, number of charge/discharge cycles and software version.

Construction

ABS injection mouldings designed to protect the cells from impact damage.

Modular Design

The internal modules, including the cell-pack, can be replaced by an authorised service facility.

Replaceable Contact Assemblies

The front and rear contact assemblies are external to the battery case and can be replaced if damaged.

Cells

Premium-grade, high-current, sealed Lithium-Ion rechargeable cylindrical cells.

Voltage

14.8V nominal. 8 cells connected in series/parallel. Each cell has a nominal voltage of 3.7V.

Capacity

99 Watt-hours, nominal 6.7 Ampere-hours.

Output Current

Rated maximum continuous output current 10 Amperes. For 2 or more linked batteries 12 Amperes.

Charge Voltage

16.8V.

Protection System

The multi-level electronic protection system is fail-safe and guards against conditions that reduce battery life. The circuit is coated for protection and to ensure operation of the safety systems in the event of damage to the battery.

Temperature Range

Charging

0?C to +40?C (Optimum +10?C to +30?C).

+32?F to +104?F (Optimum +50?F to +86?F).

Discharging

-20?C to +50?C (Optimum +5?C to +40?C).

-4?F to +122?F (Optimum +41?F to +104?F).

Storage

+10?C to +30?C (+50?F to +86?F).

Dimensions

Length: 109mm (4.3”).

Width: 85.5mm (3.4”).

Height: 50mm (2.0”).

Weight

590g (21oz)

In the box:

PAG Mini PAGlink MPL99 V-Mount Li-Ion Battery 99Wh
