Sony CBK-WA02 5GHz/2.4GHz Wireless LAN Adapter

CBK-WA02 5GHz/2.4GHz Wireless LAN Adapter

Excellent Condition- 3 month peace of mind warranty

The CBK-NA1E Network Module Extension Adapter is a wireless network adapter that operates on dual bands at 2.4 or 5 GHz. This allows for easy switching between frequencies for better signal transmission. The adapter is specifically designed for use with camcorders such as the PXW-X500, PXW-X200, and PXW-X180, and is attached using a 1/4-inch accessory shoe.

For even better signal transmission, the CBK-WA02 Wireless LAN adapter can be used in conjunction with the CBK-NA1E adapter. This kit consists of two units - the wireless LAN adapter and the modem attachment for 3G/4G/LTE communication. It is compatible with camcorders that support wireless LAN network operation and have the appropriate firmware, as well as with other wireless adapters with V2.0 or greater firmware installed.

The CBK-WA02 Wireless LAN adapter enables wireless data transfer from specified Sony camcorders to other devices on the same network.

The kit consists of two units: the CBK-WA02 Wireless LAN Adapter and CBK-NA1E - modem attachment for 3G/4G/LTE communication

 This kit is designed for use with camcorders such as PXW-X500, PXW-X200 and PXW-X180 that are compatible with wireless LAN network operation and have appropriate firmware.

 CBK-WA02 is also compatible with wireless adapters CBK-WA100 and CBK-WA101 with V2.0 or greater firmware installed.

Weight  Approx. 20 g

Dimensions (WxHxD)     25.5 x 11.0 x 81.0 mm

Power Requirements      DC 5 V

Power Consumption       2.5W

Operating Temp 0 to +40 ℃

+32 to +104 °F

Operating Humidity        20% to 90%

Standards Compliance   IEEE 802.11a/b/g/n/ac

Security              64/128 bit: WEP, WPA/WPA2

Frequency          2.400 GHz – 2.483 GHz, 5.150 GHz – 5.350 GHz,

5.470 GHz – 5.725 GHz, 5.730 GHz – 5.850 GHz

Data Rate (Standard Value)         Max. 866 Mbps (IEEE802.11ac)

Max. 300 Mbps (IEEE802.11n)

Max. 54 Mbps (IEEE802.11a, IEEE802.11g) Max. 11 Mbps (IEEE802.11b)

Host Interface    USB 2.0 Type A

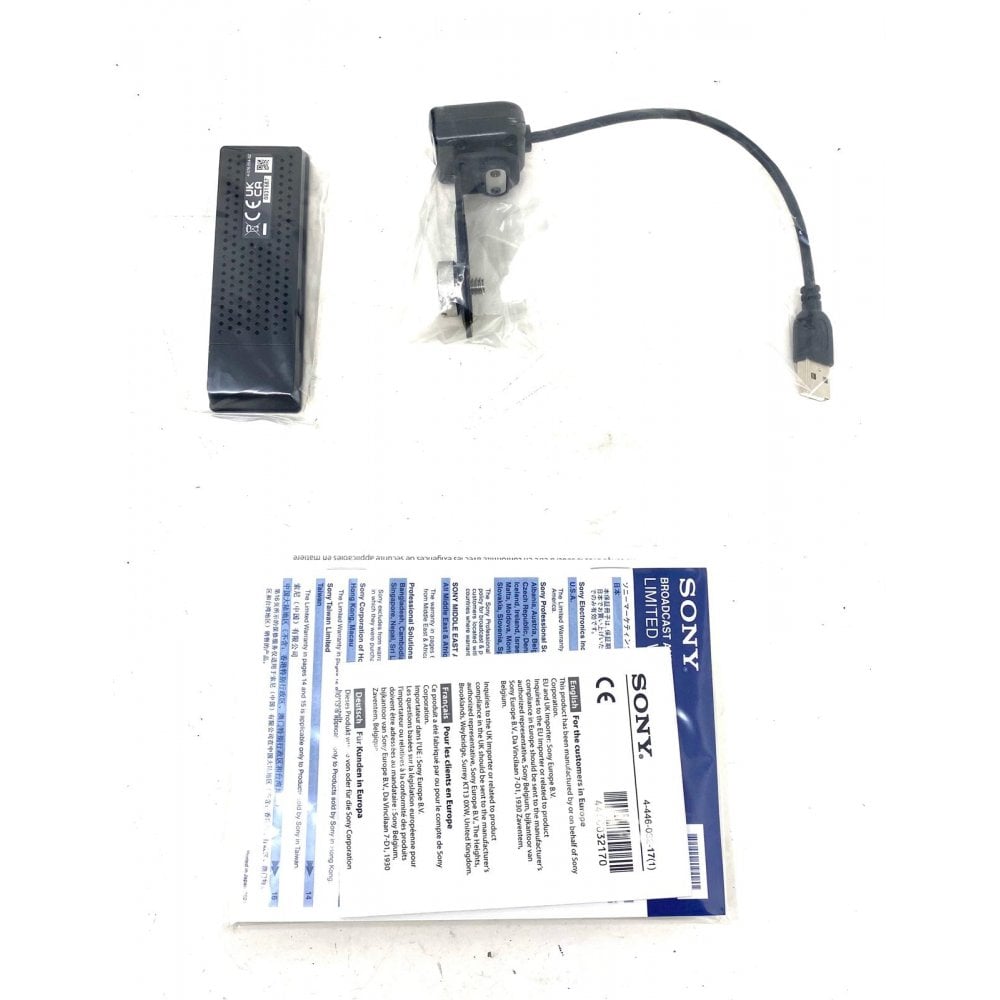

In the box:

CBK-WA02

CBK-NA1E

Network Module Extension Adapter CBK-NA1E

Installation Manual

WEEE Directive paper

RoHS Directive paper
