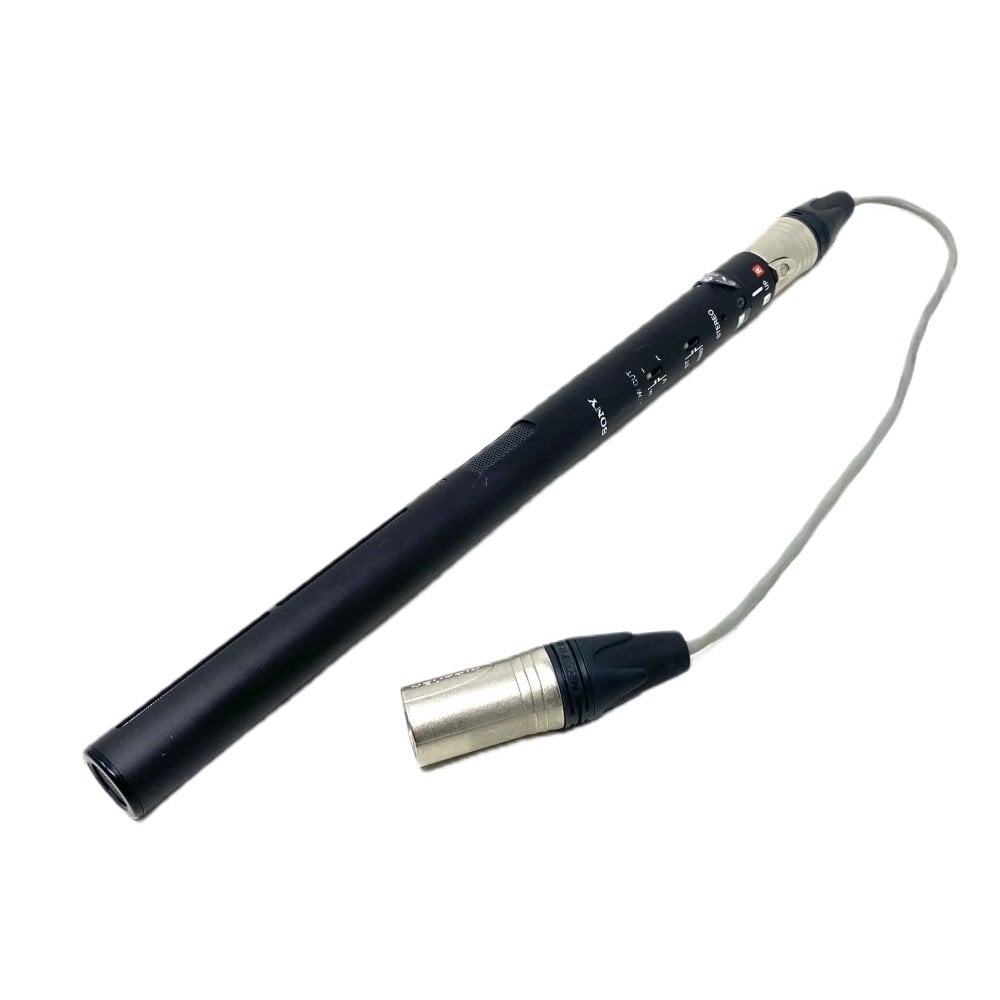

Sony ECM-680S Electret Condenser M/S Stereo Shotgun, used

Sony ECM-680S MS Stereo Shotgun Electret Condenser Microphone, Used

3 Months Warranty, Good condition

Description:

The Sony ECM-680S is an MS stereo* shotgun, electret condenser microphone designed for a wide range of field production and broadcast studio applications. It incorporates newly developed microphone capsules that offer excellent sensitivity, low inherent noise, and a flat, wide frequency response. The ECM-680S features switchable operation between monaural and stereo modes. In monaural mode, the microphone provides highly directional sound pickup, while stereo mode delivers natural, spatial sound, making it ideal for capturing a range of audio environments.

Compact and lightweight, the ECM-680S is compatible with Sony professional camcorders and can also be mounted on a boom pole for added versatility. The microphone comes with PrimeSupport, providing fast, hassle-free repairs and expert technical advice, giving you peace of mind.

*MS microphone signal of the ECM-680S is internally decoded to L and R (stereo) outputs.

Specifications:

• Capsule Type: Electret condenser
• Stereo Type: MS (Mid-Side) stereo microphone
• Directivity: Uni-directional
• Frequency Response:
  • Stereo: 50 Hz to 20 kHz
  • Monaural: 40 Hz to 20 kHz
• Sensitivity (at 1 kHz):Output Impedance (at 1 kHz): 100 ohms ±20%
  • Stereo: -28 dB ±3 dB
  • Monaural: -32 dB ±3 dB
• Dynamic Range:
  • Stereo: 104 dB or more
  • Monaural: 106 dB or more
• Signal-to-Noise Ratio (IEC179 A-weighted, 1 kHz, 1Pa):Inherent Noise: 20 dB SPL or less
  • Stereo: 74 dB or more
  • Monaural: 76 dB or more
• Wind Noise:Induction Noise from External Magnetic Field: 0 dB SPL or less
  • 60 dB SPL or less (with windscreen)
  • 55 dB SPL (without windscreen)
• Maximum Input Sound Pressure Level: 124 dB SPL
• Power Requirements: DC 40 to 52 V
• Power Consumption:Mass: Approx. 140 g (4.9 oz)
  • Stereo: 4 mA or less x 2 channels
  • Monaural: 4 mA or less
• Dimensions: 20 mm diameter x 250 mm length

In the box;

1 x Sony ECM-680S Electret Condenser M/S Stereo Shotgun, used
