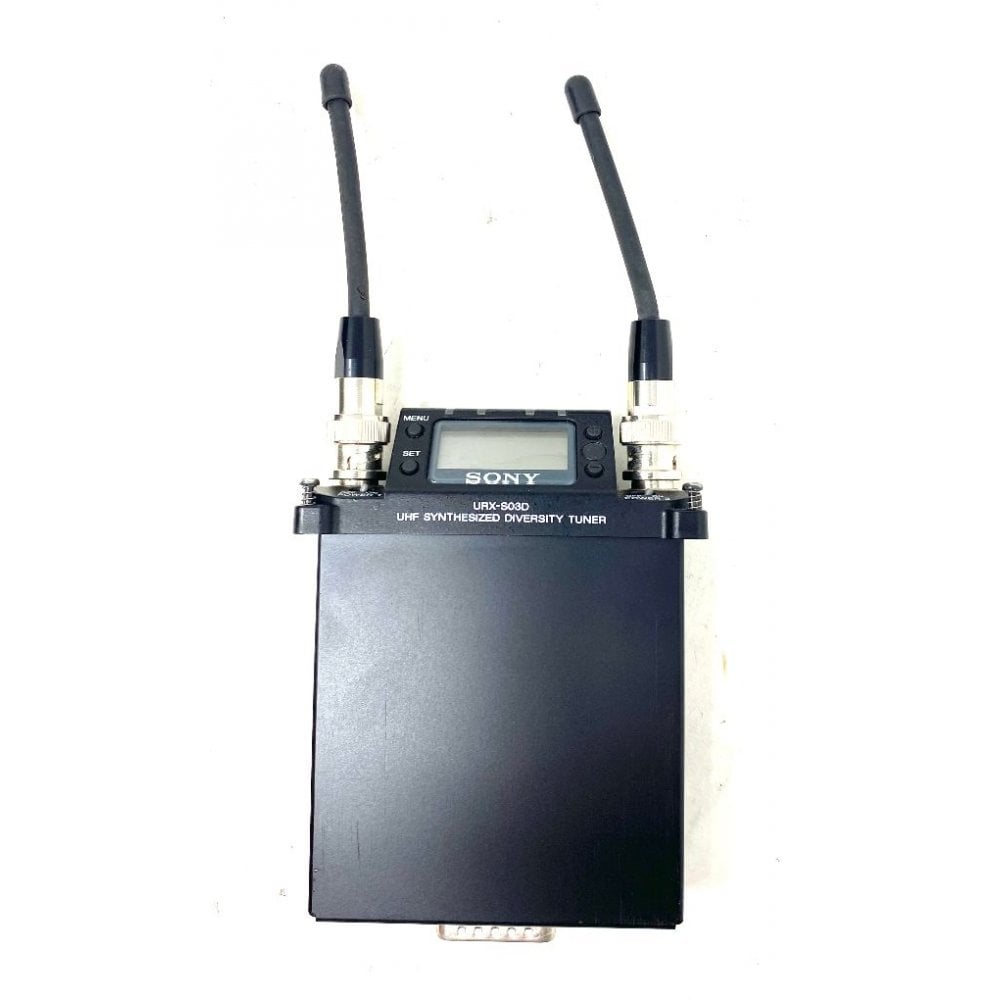

Sony URX-S03D/K33 UWP-D Portable Two-Channel Wireless Receiver, used

Sony URX-S03D/K33 UWP-D Portable Two-Channel Wireless Receiver, used(FMP61740RHSH)

3 months warranty, Excellent condition

Frequency: 566.025 MHz to 630.000 MHz

(UHF- TV channels 33 to 40)

Sony URX-S03D/K33 (URX-S03D-K33, URX/S03D/K33, URX_S03D_K33, URXS03DK33, urx-s03d/k33) UWP-D Portable Two-Channel Wireless Receiver

Digital Audio Processing for high quality sound

The URX-S03D is the first two-channel portable receiver in the UWP-D Series that fits directly in the slot of Sony XDCAM and HDCAM camcorders. Working with the UTX-B03HR belt-pack transmitter, the system features easy channel setting functions, advanced functionality for stable RF transmission and Digital Audio Processing technology ensures high-quality sound. With advanced usability with Sony XDCAM and HDCAM camcorders, it also works seamlessly with Sony 800 and UWP Series transmitters.

Digital Audio Processing for high quality sound

Improves transient response performance between the UWP-D transmitter and receiver, providing impressive natural sound quality compared to conventional analogue wireless systems.

Stable RF transmission

True diversity reception system achieves highly stable reception from two adjustable receiving antennas, each with its own RF circuits.

Great usability with Sony XDCAM and HDCAM camcorders

The URX-S03D fits in the slot of Sony’s XDCAM camcorder with 2-channel digital audio connections directly from the DSP. It can also be matched with the slot of an HDCAM camcorder with single channel audio connection.

Easy to use features

Automatic channel setting function*, headphone output, USB connection for power supply and line input availability.

*For customers in North and Latin America, when a /25 version of either transmitter or receiver is used with /14, /30 or /30A version of receiver or transmitter, AUTO SET (auto channel setting) function or frequency transferring function with IR sync cannot be used. Manual setting of matching frequencies is still available.

Wide frequency coverage with choice of channels available

The extra wide switching bandwidth covers a wide area, with a wide choice of channels available across multiple models – please refer to product specifications for more information.

14UC: 470.125 MHz to 541.875 MHz (UHF-TV channels 14 to 25) (not available in Brazil)

25UC: 536.125 MHz to 607.875 MHz (UHF-TV channels 25-36)

42LA: 638.125 MHz to 697.875 MHz (UHF-TV channels 42-51) (not available in US or Canada)

Robust metal body

The URX-P03 portable receiver is made of strong, durable metal. Metal construction supports reliable use in rough operating conditions.

Weatherproof structure

Waterproof structure of the URX-S03D makes it safe to use in extreme conditions

Selectable squelch

The squelch can be easily turned on or off in the menu.

Compatible with a wide range of Sony camcorders

PXW-X320, PXW-X400, PDW-850/750, PXW-X500, PMW-400/580, PDW-510/510P, PDW-530/530P, PDW-700/740/F800,PMW-TD300, PMW-500/350, PMW-320, (PMW-F5/F55 with CBK-55BK), HDW-F900R, HDW-650/680/800P, MSW-930P, DSR-400/400P, DSR-450WS/450WSP

Oscillator Type: Crystal-controlled PLL Synthesizer

Reception Type: True diversity

Antenna Type: Detachable

Carrier Frequencies: Europe, UAE, South Africa, Australia, Malaysia, Vietnam, New Zealand:

CE21: 470.025 MHz to 542.000 (not available in Australia, Malaysia, Vietnam or New Zealand)

Frequency Response: 23Hz to 18kHz (typical)

Signal-to-Noise Ratio: 96dB (max deviation, A-weighted)

Distortion (T.H.D): 0.9% or less (-60dBV, 1kHz input)

Audio Delay: Approx. 0.375 msec

Analog Output: D-sub 15pin, unbalanced

Analog Output Level*: -40dBu (at ±5kHz deviation)

Pilot Tone Signal: 32 kHz/ 32.382 kHz/ 32.768 kHz

Display: LCD

Power Requirements: DC 7.0 V

Operating Temperature:

0°C to 50°C

32°F to 122°F

Storage/Transport Temperature:

-20°C to +55°C

-4°F to +131°F

Dimensions: 88 x 116.2 x 31.2mm (3 1/2 × 4 5/8 × 1 1/4 in.) (excluding the antennas) (W x H x D)

Mass: Approx. 303g (10.7 oz.) (with supplied antennas attached)

In the box

Sony URX-S03D/K33 UWP-D Portable Two-Channel Wireless Receiver
