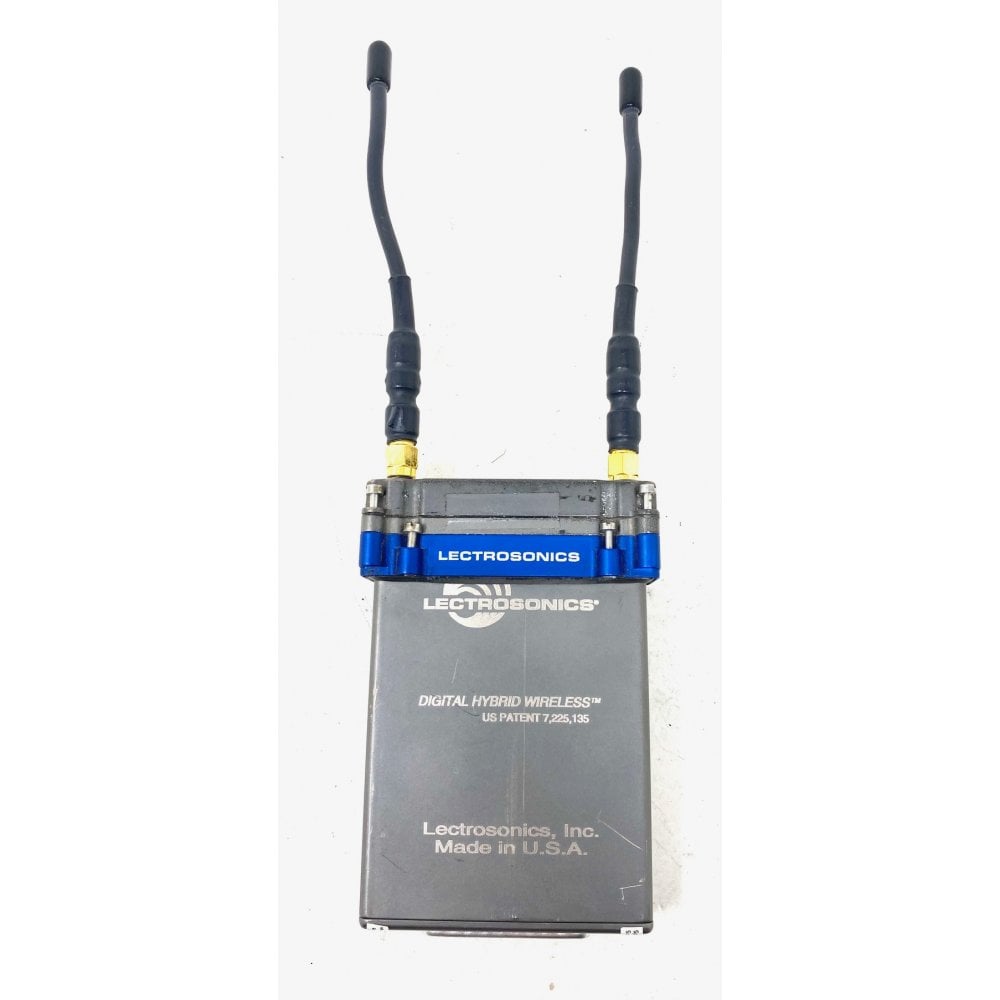

Lectrosonics Lectronics SRc Slot Mount Receiver, 606 -631 mHz, used

Lectronics SRc Slot Mount Receiver, used

Frequency 606 -631 mHz

The SRc Dual-Channel Slot-Mount ENG Receiver from Lectrosonics consist of two separate receivers built into a single, ultra-compact housing with adapters for video-camera-receiver slots and for stand-alone use. They can be used when paired with a transmitter & microphone (sold separately) in various environments for ENG (Electronic News Gathering), EFP (Electronic Field Productions) and other audio applications.

Each receiver features Digital Hybrid Wireless technology that provides compandor-free audio quality and compatibility with other wireless systems.

The RF performance is stable over a wide temperature range, making the receiver perfectly suited in rough environmental conditions.

The front panel has a menu-driven LCD interface and four membrane switches which are used to view and alter settings. In addition, the LCD window displays the pilot-tone indicator, diversity activity, RF level, audio level, and transmitter battery status for both receivers.

Furthermore, a built-in spectrum analyzer scans across the tuning range of the receiver and displays a histogram of RF activity across

the band. Areas of RF activity are easily recognizable. The two internal receivers can be operated separately and both have switching, antenna-combining diversity, or in tandem with ratio-diversity reception.

Finally, a variety of output adapters and mounting options are available for camera-slot operation. The receivers are powered from an external 7 to 18 VDC source.

Fits camera "slots," Lectrosonics Duopack adapter and Octopack multicoupler, and operates stand-alone with various adapters Dual-receiver design for two channels with phase switched diversity or single channel with ratio diversity operation Digital Hybrid Wireless with compatibility modes for use with other transmitters Tracking front-end filters for high performance in tough RF environments LCD with RF spectrum scanning SmartSquelch DSP-controlled, noise-based filtering and squelch DSP-based pilot tone for squelch control IR sync port for quick transmitter setup (LMb, LT, HHa, HMa, & SSM) SmartTune operation for quick and confident frequency selection

Wireless Technology

Digital UHF

Diversity

Yes

Max Operating Range

Not Specified by Manufacturer

Receiver Type

1x Camera-Mount

Number of Audio Channels

2

Included Transmitters

No Transmitters Included

Microphone Type

No Microphone Included

Included Charging Case

No

System

Wireless Technology

Digital UHF

Diversity

Yes

RF Frequency Band

Number of RF Channel Frequencies

3072

Max Operating Range

Not Specified by Manufacturer

Encryption

No

Built-In Recorder

No

Timecode Support

No

Mobile App Compatible

No

Receiver

Receiver Type

1x Camera-Mount

Mounting Options

Shoe-Mount (with Non-Included Hardware)

Antenna

1x Internal

Number of Audio Channels

2

Audio I/O

2x TA3M/Mini-XLR 3-Pin Balanced Output

Slot-Mount I/O Adapters

Available Separately:

DB-25 (Uni/SuperSlot), DE-15/DB-15 (Sony Type), TA3/Mini XLR, TA5/Mini XLR

Network I/O

No

USB/Lightning Connectivity

No

Gain Range

20 to 60 dB

Frequency Response

32 Hz to 20 kHz ±1 dB

Display

Backlit LCD

Power Requirements

AC/DC Power Adapter, Battery, DC Input

Transmitters

Included Transmitters

No Transmitters Included

Microphones

Microphone Type

No Microphone Included

Power

Receiver Battery Type

1x NP-F / L-Series (Not Included)

Receiver Battery Life

11 Hours

Included Charging Case

No

AC/DC Power Adapter

12 VDC at 3 A (Not Included)

Input Power

100 to 240 VAC, 50 / 60 Hz

Physical

Dimensions

0.2 x 0.1 x 0" / 4.9 x 2.9 x 1.2 mm (Antenna)

Weight

7.9 oz / 225 g (with Mounting Hardware)

In the box:

Lectronics SRc Slot Mount Receiver, 606 -631 mHz, used
