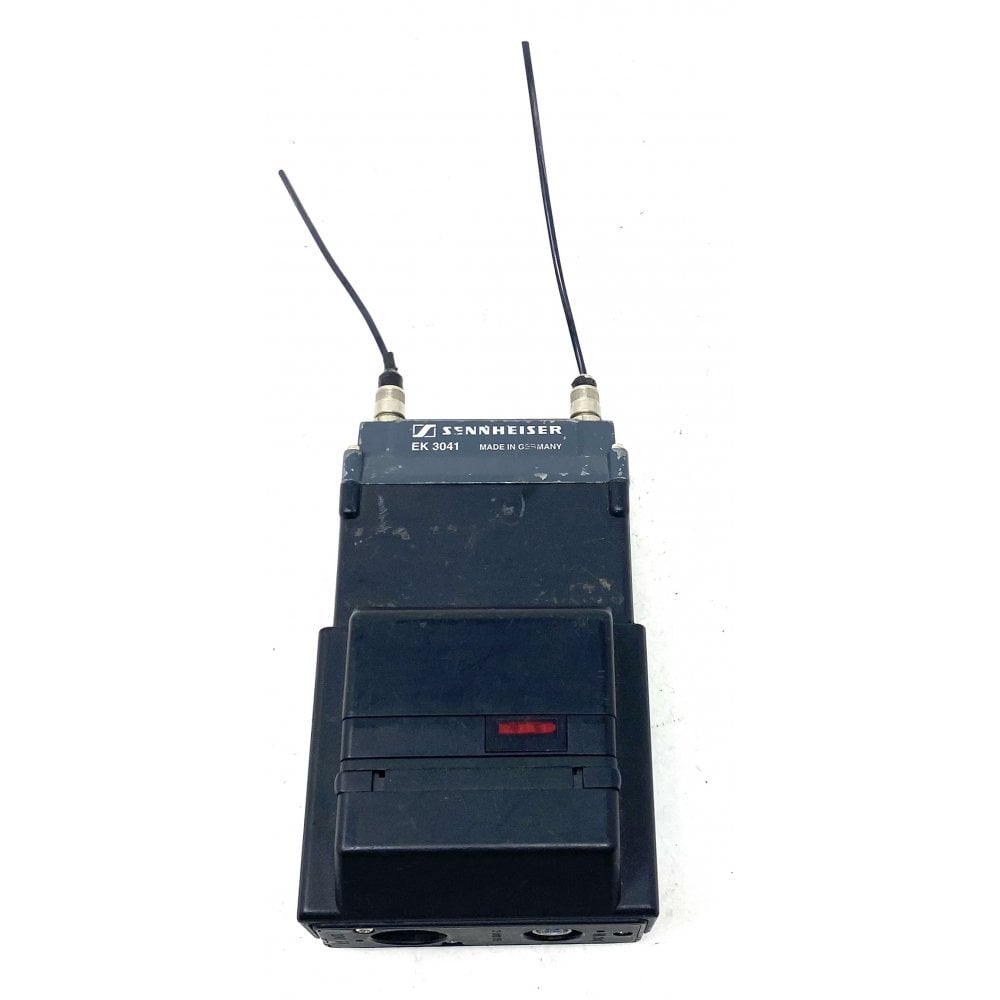

Sennheiser EK3041-U Diversity Camera receiver 838-862MHz, Used

Sennheiser EK3041-U Diversity Camera receiver 838-862MHz, Used

Fair condition

3 months warranty

The EK 3041-U is a miniature true diversity radio microphone receiver designed for use with digital ENG camcorders. It can be inserted into the slot-in facility of the Philips LDK 120, Ikegami, Panasonic or Sony SX camcorders without any additional connecting cables being required. 32 switchable UHF receiving frequencies ensure flexible operation.

Receiving frequencies

• max. 32, switchable

Frequency range

• 450–960 MHz

Switching bandwidth

• 24 MHz

Modulation

• wideband FM

Nominal/peak deviation

• ± 40 kHz / ± 56 kHz

Sensitivity

• < 2 µV

Noise reduction system

• HiDyn plus™

AF frequency response

• 50–20,000 Hz

AF output

• max. +9 dBu, balanced

Max. signal-to-noise ratio

• 114 dB(A)

THD

• < 0.5 %

Connection

• via adaptor

Power supply

• 10.5–18 V DC/32 mA, (via camcorder or GA 3041-B) 1.8–4.5 V DC/150 mA 5–9 V DC/70 mA

Dimensions

• approx. 120 x 74 x 28 mm

Weight

• approx. 200 g

In compliance with

• ETS 300 422

In the box:

• Sennheiser EK3041-U Diversity Camera receiver 838-862MHz, Used
