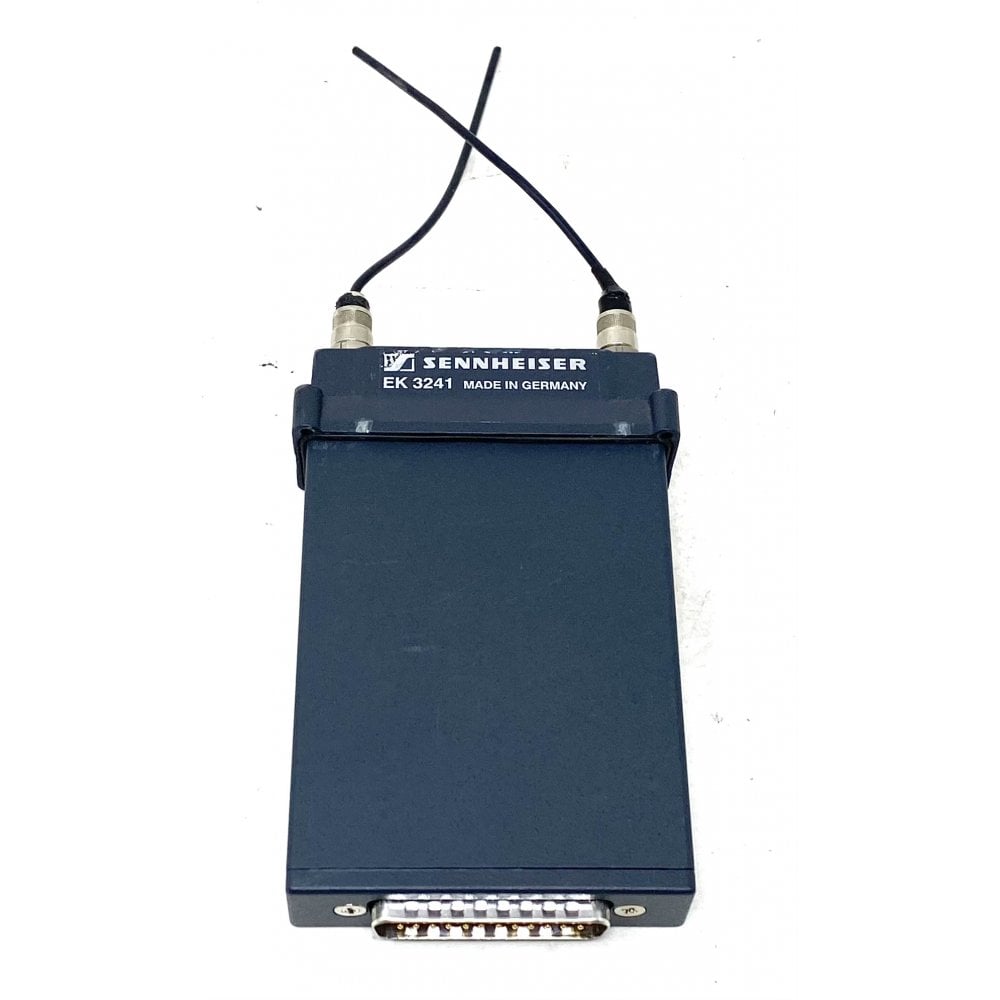

Sennheiser EK3241-B Diversity Camera Receiver 606-642MHz,Used

Sennheiser EK3241-B Diversity Camera Receiver 606-642MHz,Used

Good condition

3 months warranty

The new EK 3241 has a switching bandwidth of 36 MHz and frequencies that can be tuned in steps of 5 kHz, making the true-diversity receiver the perfect partner for Sennheiser’s current transmitter models SKM 5200 and SK 5212. Frequency-agile products are in greater demand than ever as frequency resources become increasingly scarce. We have therefore developed a new tuner module for this true-diversity camera receiver and given the lightweight EK 3241 (200 g) the capacity for reliable, flexible RF wireless transmission: 32 custom frequencies have already been programmed within the switching bandwidth of 36 MHz; in addition the user is free to program and store another 20 frequencies in steps of 5 kHz into the user bank. The receiver can be easily and intuitively operated with a completely new user interface, which is similar to that of the SK 5212 bodypack transmitter. For a high operational reliability the EK 3241 displays the battery status of the transmitter in detail. The receiver is extremely reliable; its full-metal case is weatherproof and robust.

Receiving frequencies

• 1 channel bank “F” with up to 32 factory-preset frequencies 1 channel bank “U” with up to 20 freely selectable frequencies (tuneable in steps of 5 kHz)

Switching bandwidth

• 36 MHz

Modulation

• wideband FM

Frequency range

• 450 – 960 MHz

Nominal/peak deviation

• ± 40 kHz/± 56 kHz

Squelch threshold

• 0 to 100 μV, adjustable in steps of 5 dB

Max. signal-to-noise ratio

• 100 dB(A)

THD

•  1 %, %, typ. 0.8 %

Sensitivity as per 121 TR 9-5

• typ. 10 μV for 90 dBAeff S/N

Intermodulation attenuation

• 70 dB

Antenna inputs/Impedance

• 2 sockets/50 O

Noise reduction system

• Sennheiser HiDyn plus™

In the box:

• Sennheiser EK3241-B Receiver 606/642MHz
