Sennheiser SK6000 TX A5-A8 550-638MHz, BA61 & ECM-77BPT, Used

ennheiser SK6000 TX A5-A8 550-638MHz, BA61 & ECM-77BPT, Used

Good Condition

3 months warranty

The SK 6000 pocket transmitter from Sennheiser offers three frequency variations (470-558 MHz, 550-638 MHz, 630-718 MHz) and a 3-pin connector for connecting to a variety of microphones or instruments. It also features highly effective intermodulation protection and AES 256 encryption for secure transmissions. The transmitter is compatible with EK 6042 and EM 9046 in Long Range mode and has a run time of 6.5 hours with Li-ion battery packs. Its magnesium housing provides durability and protection against moisture.

The SK 6000 is intermodulation-free, allowing for maximum spectral efficiency and signal stability. It also features the legendary Sennheiser Digital Audio Codec for clear, artifact-free sound. This high-end transmitter is suitable for use with guitar/bass or Sennheiser clip-on microphones, headsets, and headmics. Its compact size, robust design, and low weight make it inconspicuous and easy to use. The optional lithium-ion battery pack ensures long operation time, and it can also be used with batteries using the battery set B 61.

The pocket transmitter SK 6000 is intermodulation-free, which allows operation in an equidistant frequency grid. The transmission concept thereby permits, even in the toughest frequency ranges, maximum spectral efficiency.

In short: more channels, maximum transmission performance at all times and hence outstanding signal stability. The legendary Sennheiser Digital Audio Codec (SeDAC) guarantees clear, artifact-free sound and optimum dynamics. In Link Density mode up to 5 links per 1 MHz bandwidth are possible.

The SK 6000 is the high-end solution for guitar/bass or as a transmitter for the Sennheiser clip-on microphones MKE 1, MKE 2 and MKE 40, headsets HSP 2,HSP 4 and SL Headmic.

The magnesium housing combines the benefits of being inconspicuous in size,a robust design and low weight, while offering reliable protection against moisture.

The lithium-ion battery pack BA 61 ensures up to 6.5 hours of operation; there is also the option of operation with batteries using the battery set B61.

The transmitter is likewise compatible with the EK 6042 and the EM 9046 in Long Range mode.

Dimensions      76 x 62 x 20 mm (with BA 61 battery pack)

Audio codec     SePAC (Sennheiser Performance Audio Codec)

SeDAC (Sennheiser Digital Audio Codec)

Modulation scheme       Digital modulation Link Density Mode

Weight  Approx. 147 g (with BA 61 battery pack and belt clip)

Audio input     3-pin audio socket

Power consumption       Max. 960 mW

RF output power 25 mW rms, 50 mW peak

Switching bandwidth     88 MHz

Operating time  6.5 h (with BA 61 battery pack)

Modulation      Digital modulation long range mode

Gain    Mic: adjustable in 3 dB steps from 0 dB to +42 dB

Line: adjustable in 3 dB steps from -6 dB to +42 dB

Frequency range 470 to 718 MHz, subdivided into 3 ranges:

SK 6000 A1 - A4: 470 - 558 MHz

SK 6000 A5 - A8: 550 - 638 MHz

SK 6000 B1 - B4: 630 - 718 MHz

Input impedance Mic: 22kΩ

Line: 1 MΩ

AF frequency response   Line: 30 Hz - 20 kHz (3 dB)

Mic: 30 Hz - 20 kHz (3 dB)

Frequency stability     < 5 ppm

Tunability      25 kHz steps

Lower cut-off-frequency Mic: adjustable, 30 Hz, 60 Hz, 80 Hz, 100 Hz, 120 Hz

Line: 30 Hz, 60 Hz, 80 Hz, 100 Hz, 120 Hz

Instrument cable emulation      Adjustable cable length with 3 steps

Encryption      AES 256 and Digital 9000 encryption

In the box:

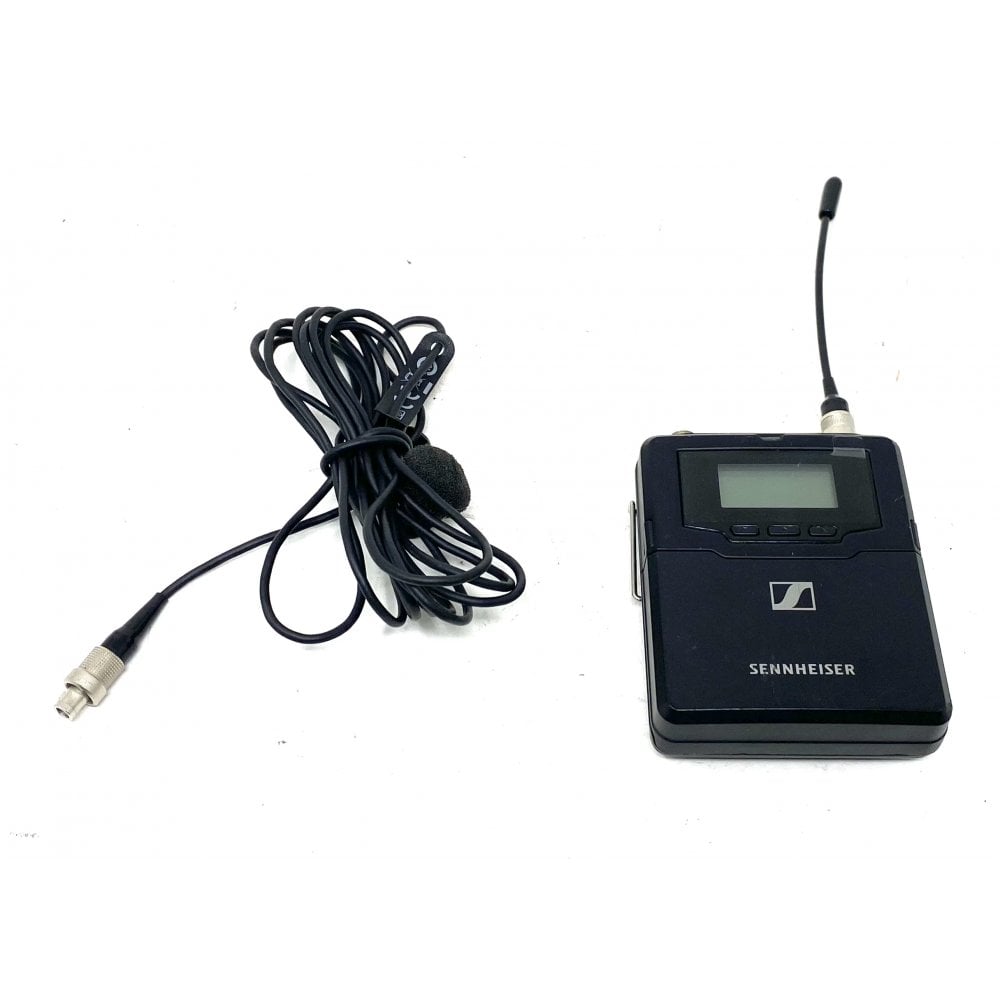

• Sennheiser SK6000 Bodypack Transmitter A5-A8 550-638Mhz
• Sennheiser BA61 Rechargeable Battery
• Beltclip
• Sony ECM-77BPT Miniature Lavalier Microphone
