Sennheiser SKM3072-U-X Wireless Handheld Microphone 607-639MHz,Used

Sennheiser SKM3072-U-X Wireless Handheld Microphone 607-639MHz,Used

Good condition

3 months warranty

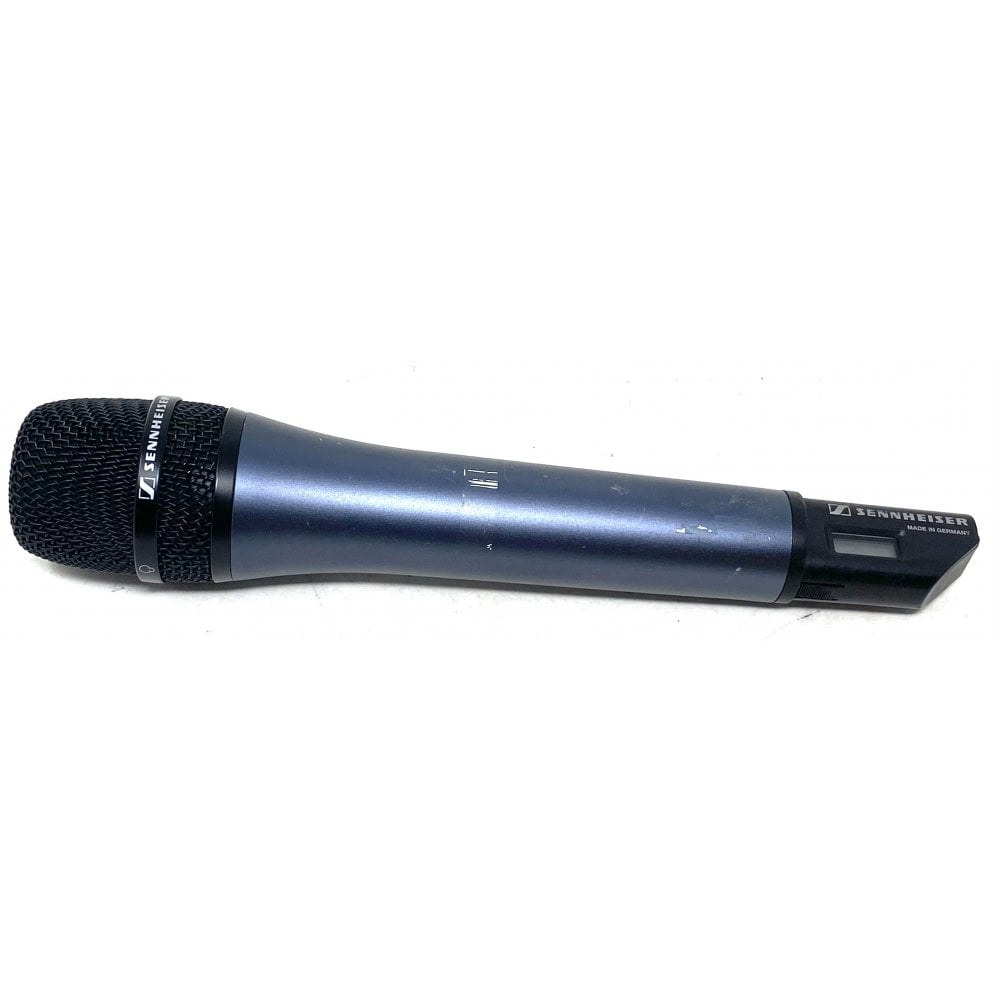

The SKM 3072-U is a hand-held transmitter with super-cardioid condenser microphone head, suitable for both vocal and speech transmission. Up to 32 switchable transmission frequencies in the UHF band.

Features

• Interchangeable microphone heads for adapting the radiomicrophone to a wide variety of applications
•  Sophisticated design, rugged metal casing
• Powered by a 9 V PP3 battery
• HiDyn plus™ noise reduction with 117 dB(A) signal-to-noise ratio
• input sensitivity switchable in 4 steps  Special “lock mode” function to prevent accidental switching off
• LC display for frequency/channel, sensitivity, battery status and lock mode
• Battery status transmitted to suitable receivers
• UHF band, 470–960 MHz
• With ME 3005 e/ME 3005 microphone head (condenser, super-cardioid) for vocals/close miking

Technical Data SKM 3072-U-X

RF output power

• typ. 30 mW

Transmission frequencies

• 1–32

Frequency range

• 470–960 MHz

Switching bandwidth

• max. 32 MHz

Modulation/pre-emphasis

• wideband FM/50µs

Nom./peak deviation (1 kHz)

• ± 40 kHz / ± 56 kHz

Noise reduction system

• HiDyn plus™

AF frequency response

• 80–18,000 Hz

Signal-to-noise ratio

• 117 dB(A)

THD (1 kHz/nom. dev.)

• 0.3 %

Sensitivity

• adjustable in 4 steps of 10 dB

Max. sound pressure level 1

• 54 dB SPL (ME 3005 e) 144 dB SPL (ME 3005)

Power supply

• 9 V alkaline, IEC 6 LR 61 or rechargeable battery

Power consumption at nominal voltage

• appx. 50 mA

Operating time - with alkaline battery

• appx. 8 hrs - with rechargeable battery appx. 2 hrs

Dimensions in mm

• 255 x 50 mm (10.04˝ x 1.97˝)

Weight incl. battery

• appx. 350 g (12.

Technical Data ME 3005

Microphone head

• Condenser

Pick-up pattern

• Super-cardioid

AF frequency response

• 40–20,000 Hz (± 2.5 dB)

Sensitivity (free field, no load)

• 1.25 mV/Pa (= –58 dBV/Pa)

Equivalent noise level

• 34 dB (DIN IEC 651) 46 dB (CCIR 468-3)

Max. SPL at THD = 3 %

• 144 dB (1 kHz

In the box:

• Sennheiser SKM3072-U-X Handheld Transmitter 607-639MHz
• Sennheiser ME 3005 Microphone Head
