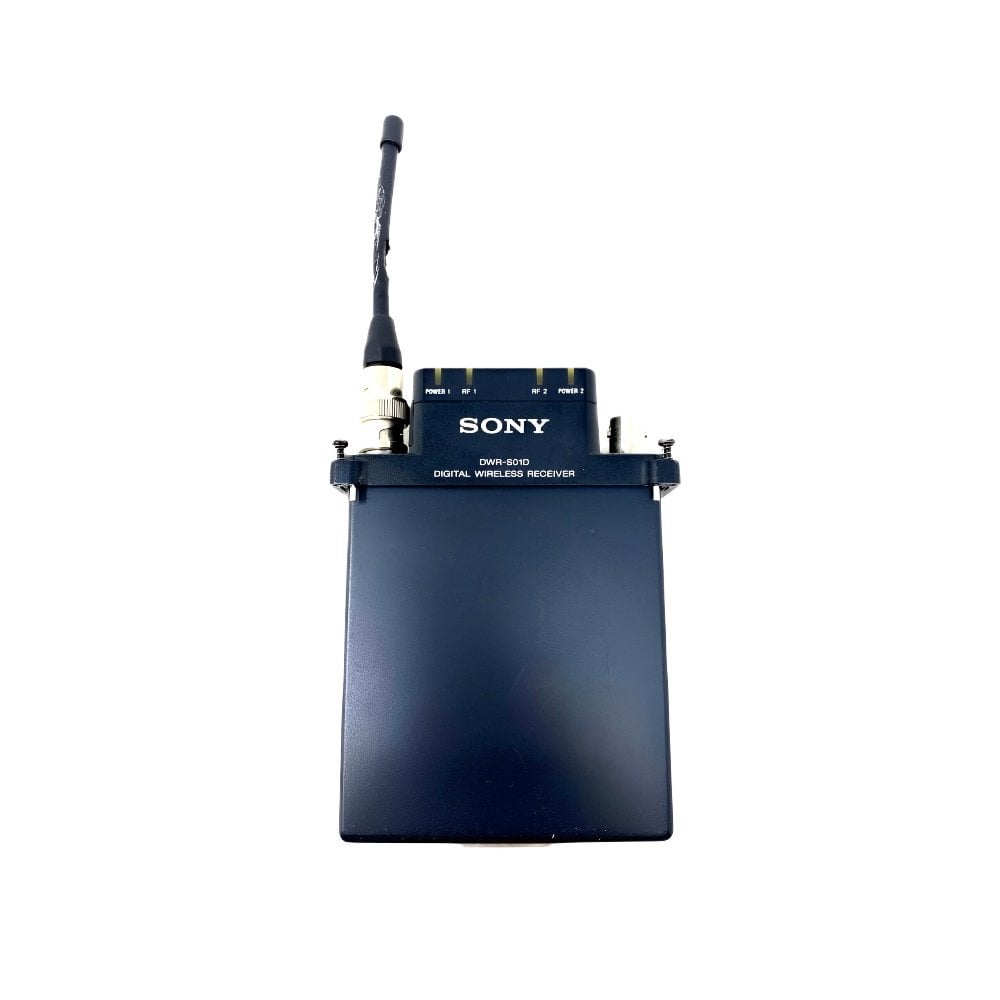

Sony DWR-S01D Digital Wireless Receiver, used

Sony DWR-S01D Digital Wireless Receiver, used

3 Months Warranty, Excellent Condition

Sony proudly introduces its digital wireless microphone system, designed for high-quality digital performance and superior system functionality—ideal for advanced ENG/EFP applications.

This system, comprising the DWT-B01 beltpack transmitter and the DWR-S01D dual portable tuner, provides exceptional wireless transmission of 24-bit/48-kHz digital audio. With Sony's original codec, it offers low-latency, secure, and reliable operation. Additionally, the system supports up to a 60% increase in the number of simultaneous multi-channel operations* compared to conventional analog systems, offering greater flexibility for users.

With its outstanding audio quality and operational adaptability, the Sony digital wireless microphone system unlocks new possibilities for audio applications.

The slot-in receiver can be directly mounted into PDW-700 XDCAM HD 422 camcorders, enabling two-channel wireless operation with a unique wireless remote control feature from the camera's viewfinder. The DWR-S01D can also be mounted on existing cameras or operated within a mixer bag via the DWA-01D adapter, supporting both AES3 digital audio or analog audio outputs. To simplify setup, the receiver includes clear channel and active channel scan functions.

Dual Channel Slot-in Receiver for Camcorders

The DWR-S01D incorporates two tuners in a single body, improving space and weight efficiency compared to analog systems. This dual-channel slot-in receiver is compatible with XDCAM HD 422 and newer camcorders, and can easily be mounted on HDCAM™, XDCAM®, Digital Betacam®, and MPEG IMX® camcorders using the DWA-01D adapter.

Meta-Data Transport

This system supports meta-data transport from the transmitter and receiver to the camcorder's viewfinder, allowing for monitoring of RF and AF conditions, delay management, and more.

Supports Analog or AES3 Digital Audio Output

The DWR-S01D provides both digital and two-channel unbalanced analog audio interface options.

Weatherproof Design

When mounted on a camera or used with the optional DWA-01D wireless adapter and two antennas, the DWR-S01D offers a weatherproof setup.

Versatile OLED Display

The system's organic LED display offers clear, at-a-glance information such as reception channel, audio and RF signal status, user name, user group, and lock status.

Wireless Remote Control

A duplex wireless remote control feature allows the DWR-S01D to control the transmitter remotely. Changes made on the receiver are automatically transmitted to the paired transmitter.

Wide Operating Frequency Range

The DWR-S01D supports operation over a 24 MHz frequency band (equivalent to three TV channels).

Superior Quality Wireless Transmission & Reception

This system delivers high-quality 24-bit/48-kHz digital audio transmission within specific frequency bandwidths that meet the Wireless Communication Regulations of each country. Powered by Sony's original codec, the system provides a dynamic range exceeding 106 dB, a wide frequency response of 20 Hz to 20 kHz, and excellent transient response.

Stable and Secure Transmission

Featuring a newly developed digital modulator, this system enables highly stable wireless transmission, resistant to interference. The transmission and reception of digitally modulated, encrypted data also ensures secure communication and reduces the risk of interception.

Simultaneous Multi-Channel Operation

The system supports large-scale, multi-channel operations with intermodulation-free, equally spaced channel allocation. Thanks to the digital wireless transmission technology, it significantly increases the number of simultaneous channels compared to current analog systems. For instance, up to 16 channels can operate simultaneously within an 8-MHz frequency band.

Antenna Connector:

• Type: BNC-R

Power Requirement:

• DC 7.0 V (supplied from camera interface or DWA-01D)

Dimensions (W x H x D):

• 88 x 117.8 x 31.3 mm

Audio Specifications:

• Sampling Frequency: 48 kHz
• Quantization Bit Length: 24 bit
• Channel Step: 125 kHz

Output Levels:

• Reference Output Level (DWA-01D adaptor, analogue output): -58 dBu
• Maximum Output Level:
  • DWA-01D adaptor (analogue output): -22 dBu
  • DWA-01D adaptor (AES/EBU output): 0 dBFS

Frequency Response:

• 20 Hz to 20 kHz ±1 dB

Signal-to-Noise Ratio:

• 70 dB (typical, A-weighted at reference input level)

Total System Audio Delay:

• Less than 4 msec

In the box:

• 1 x Sony DWR-S01D Digital Wireless Receiver, used
