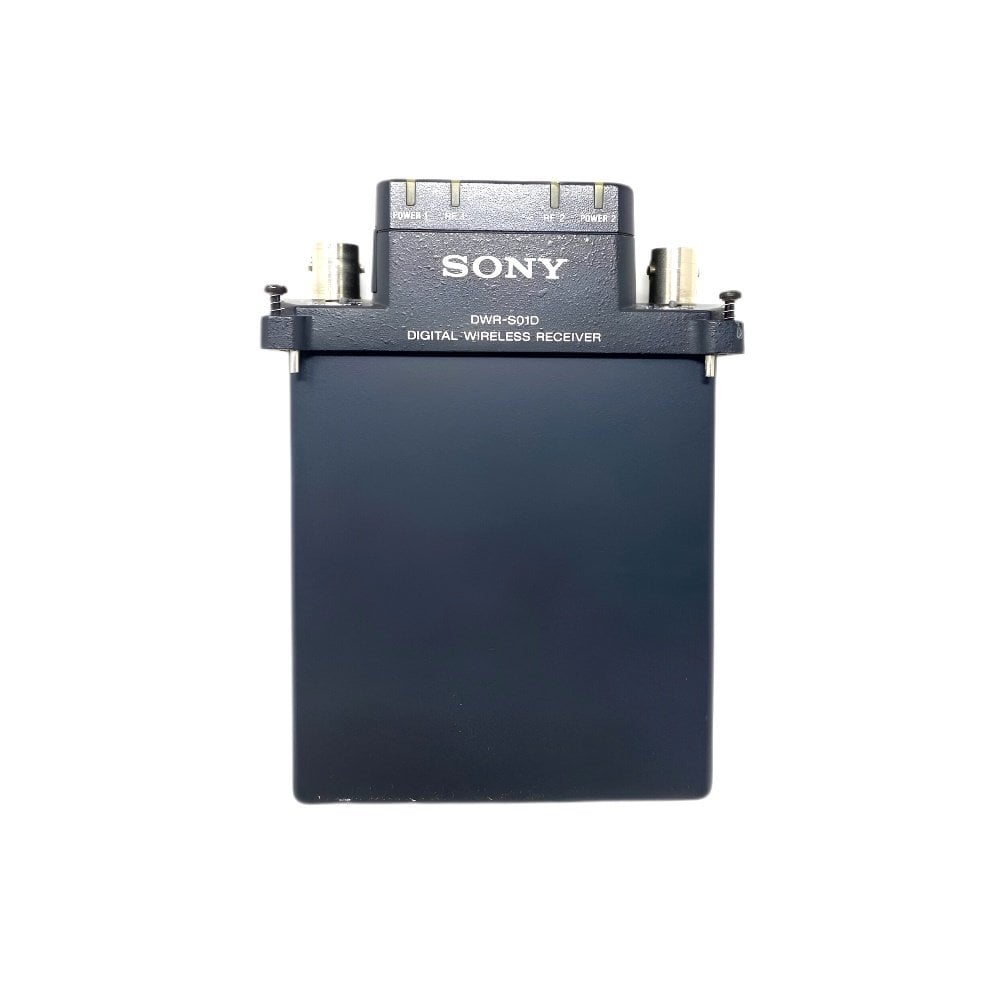

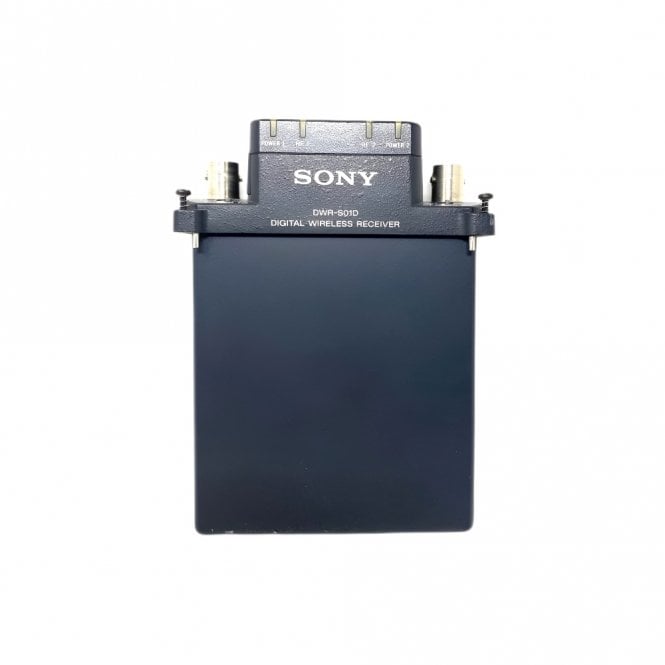

Sony DWR-S01D Digital Wireless Receiver, used

Sony DWR-S01D Digital Wireless Receiver, used

3 Months Warranty, Excellent Condition

Sony proudly presents its digital wireless microphone system, crafted for superior digital performance and advanced system functionality—ideal for ENG/EFP applications.

This system, which includes the DWT-B01 beltpack transmitter and the DWR-S01D dual portable receiver, ensures exceptional wireless transmission of 24-bit/48-kHz digital audio. Powered by Sony's proprietary codec, it delivers low-latency, secure, and reliable operation. The system also supports up to 60% more simultaneous multi-channel operations* compared to conventional analog systems, offering users increased flexibility.

With outstanding audio quality and operational versatility, Sony’s digital wireless microphone system unlocks new possibilities for professional audio applications.

Slot-In Receiver for Camcorders

The DWR-S01D can be directly mounted into PDW-700 XDCAM HD 422 camcorders, enabling two-channel wireless operation with a unique remote control feature via the camera’s viewfinder. It can also be used with other cameras or operated in a mixer bag using the DWA-01D adapter, supporting both AES3 digital audio and analog audio outputs. For easy setup, the receiver includes clear channel and active channel scan functions.

Dual-Channel Slot-in Receiver

The DWR-S01D features two tuners in one unit, improving space and weight efficiency compared to analog systems. It is compatible with XDCAM HD 422 and newer camcorders, and can be mounted on HDCAM™, XDCAM®, Digital Betacam®, and MPEG IMX® camcorders using the DWA-01D adapter.

Meta-Data Transport

The system supports meta-data transport from the transmitter to the camcorder’s viewfinder, allowing monitoring of RF and AF conditions, delay management, and more.

Analog and AES3 Digital Audio Output

The DWR-S01D offers both digital and two-channel unbalanced analog audio output options.

Weatherproof Design

When used with the optional DWA-01D adapter and two antennas, the DWR-S01D ensures a weatherproof setup, whether mounted on a camera or used separately.

Versatile OLED Display

The organic LED display provides clear, at-a-glance information, including reception channel, audio and RF signal status, user name, group, and lock status.

Wireless Remote Control

The duplex wireless remote control feature allows the DWR-S01D to remotely manage the transmitter, with changes on the receiver automatically transmitted to the paired transmitter.

Wide Operating Frequency Range

The DWR-S01D operates over a 24 MHz frequency range, equivalent to three TV channels.

High-Quality Wireless Transmission

The system delivers 24-bit/48-kHz digital audio transmission with a dynamic range exceeding 106 dB, a frequency response of 20 Hz to 20 kHz, and excellent transient response, all within regulated frequency bands. Sony’s original codec ensures superior sound quality.

Stable and Secure Transmission

Equipped with a newly developed digital modulator, the system provides highly stable wireless transmission, resistant to interference. The digital modulation and encryption ensure secure communication, reducing the risk of interception.

Multi-Channel Operation

The system supports large-scale, multi-channel operations with intermodulation-free channel spacing, allowing up to 16 channels to operate simultaneously within an 8-MHz frequency band.

Antenna Connector:

• Type: BNC-R

Power Requirement:

• DC 7.0 V (supplied from camera interface or DWA-01D)

Dimensions (W x H x D):

• 88 x 117.8 x 31.3 mm

Audio Specifications:

• Sampling Frequency: 48 kHz
• Quantization Bit Length: 24 bit
• Channel Step: 125 kHz

Output Levels:

• Reference Output Level (DWA-01D adaptor, analogue output): -58 dBu
• Maximum Output Level:
  • DWA-01D adaptor (analogue output): -22 dBu
  • DWA-01D adaptor (AES/EBU output): 0 dBFS

Frequency Response:

• 20 Hz to 20 kHz ±1 dB

Signal-to-Noise Ratio:

• 70 dB (typical, A-weighted at reference input level)

Total System Audio Delay:

• Less than 4 msec

In the box:

• 1 x Sony DWR-S01D Digital Wireless Receiver, used
