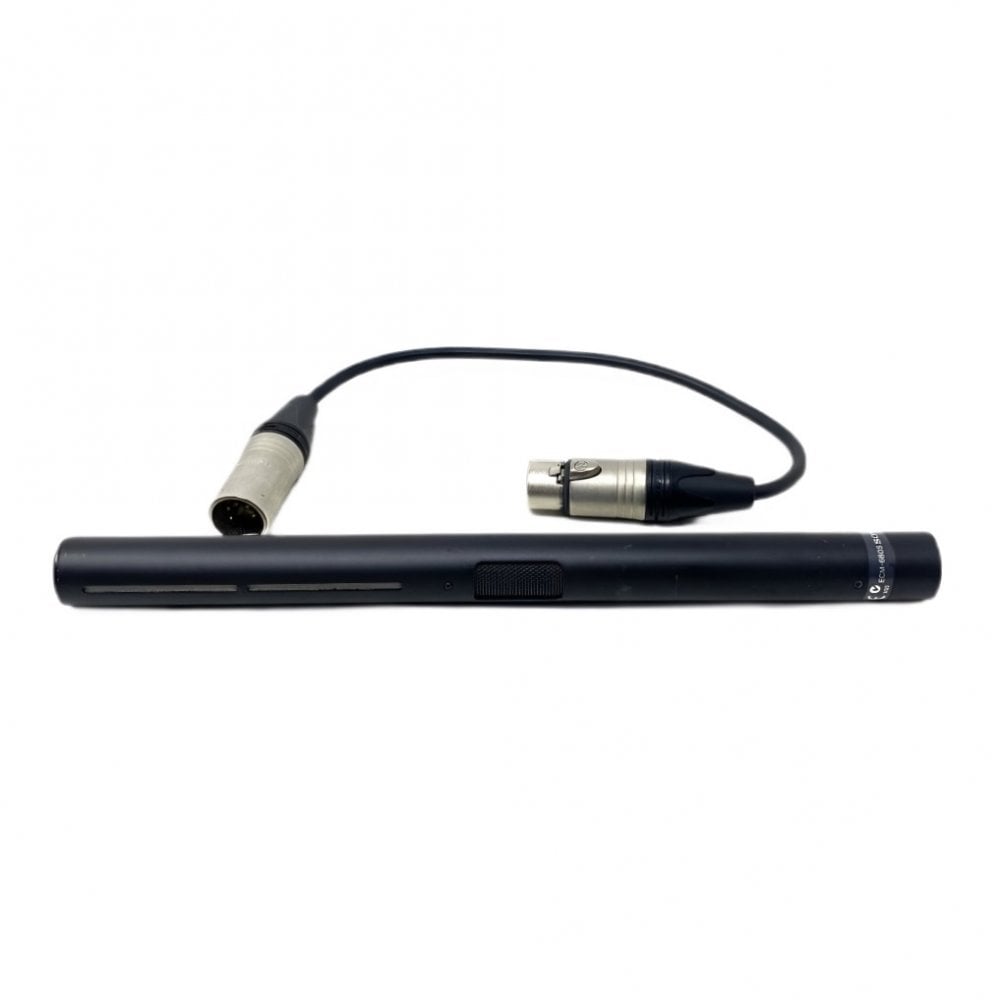

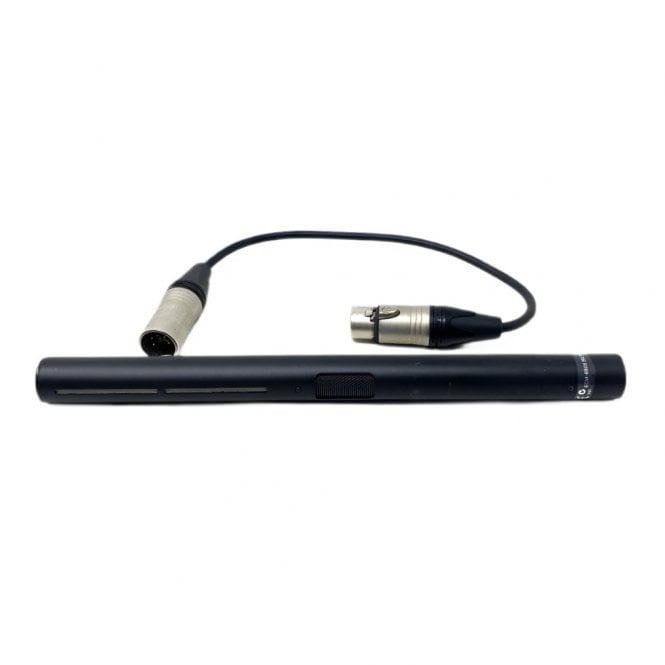

Sony ECM-680S Electret Condenser M/S Stereo Shotgun, used

Sony ECM-680S MS Stereo Shotgun Electret Condenser Microphone

3-Month Warranty, Good Condition

The Sony ECM-680S is a versatile MS stereo* shotgun, electret condenser microphone, perfect for a wide range of field production and broadcast studio applications.

Featuring newly developed microphone capsules, the ECM-680S provides excellent sensitivity, low inherent noise, and a broad, flat frequency response. Its standout feature is the switchable operation between a highly directional monaural mode and a stereo mode.

In monaural mode, the microphone captures focused, highly directional sound, while stereo mode offers natural, spatial audio. Compact and lightweight, the ECM-680S is ideal for use with Sony’s professional camcorders and can also be mounted on a boom pole for greater flexibility. Thanks to its exceptional sound quality and versatility, the ECM-680S is an excellent choice for quality-conscious audio recording in various environments.

*The MS microphone signal of the ECM-680S is internally decoded to L and R stereo outputs.

This product is supported by PrimeSupport, which includes fast, hassle-free repairs and a helpline with expert technical advice, giving you peace of mind that your equipment and business are in good hands with Sony.

Key Features:

• Superior Sound Quality
• Switchable Between Stereo & Mono
• Flat and Wide Frequency Response
• Compact and Lightweight

Technical Specifications:

Capsule Type:

• Electret condenser

Stereo Type:

• MS (Mid-Side) stereo microphone

Directivity:

• Uni-directional

Frequency Response:

• Stereo: 50 Hz to 20 kHz
• Monaural: 40 Hz to 20 kHz

Sensitivity (at 1 kHz):

• Stereo: -28 dB(*1) ±3 dB
• Monaural: -32 dB(*1) ±3 dB

Output Impedance (at 1 kHz):

• 100 ohms ±20%

Dynamic Range:

• Stereo: 104 dB or more
• Monaural: 106 dB or more

Signal-to-Noise Ratio (IEC179 A-weighted, 1 kHz, 1Pa):

• Stereo: 74 dB or more
• Monaural: 76 dB or more

Inherent Noise:

• 20 dB SPL(*2) or less

Wind Noise:

• 60 dB SPL(*2) or less (with windscreen)
• 55 dB SPL(*2) (without windscreen)

Induction Noise from External Magnetic Field:

• 0 dB SPL(*2) or less

Maximum Input Sound Pressure Level:

• 124 dB SPL(*2)

Power Requirements:

• DC Voltage: 40 to 52 V
• Power Consumption:
  • Stereo: 4 mA or less x 2 channels
  • Monaural: 4 mA or less

Physical Specifications:

• Mass: Approx. 140 g (4.9 oz)
• Dimensions: 20 mm diameter x 250 mm long

In the box:

• 1 x Sony ECM-680S Electret Condenser M/S Stereo Shotgun, used
