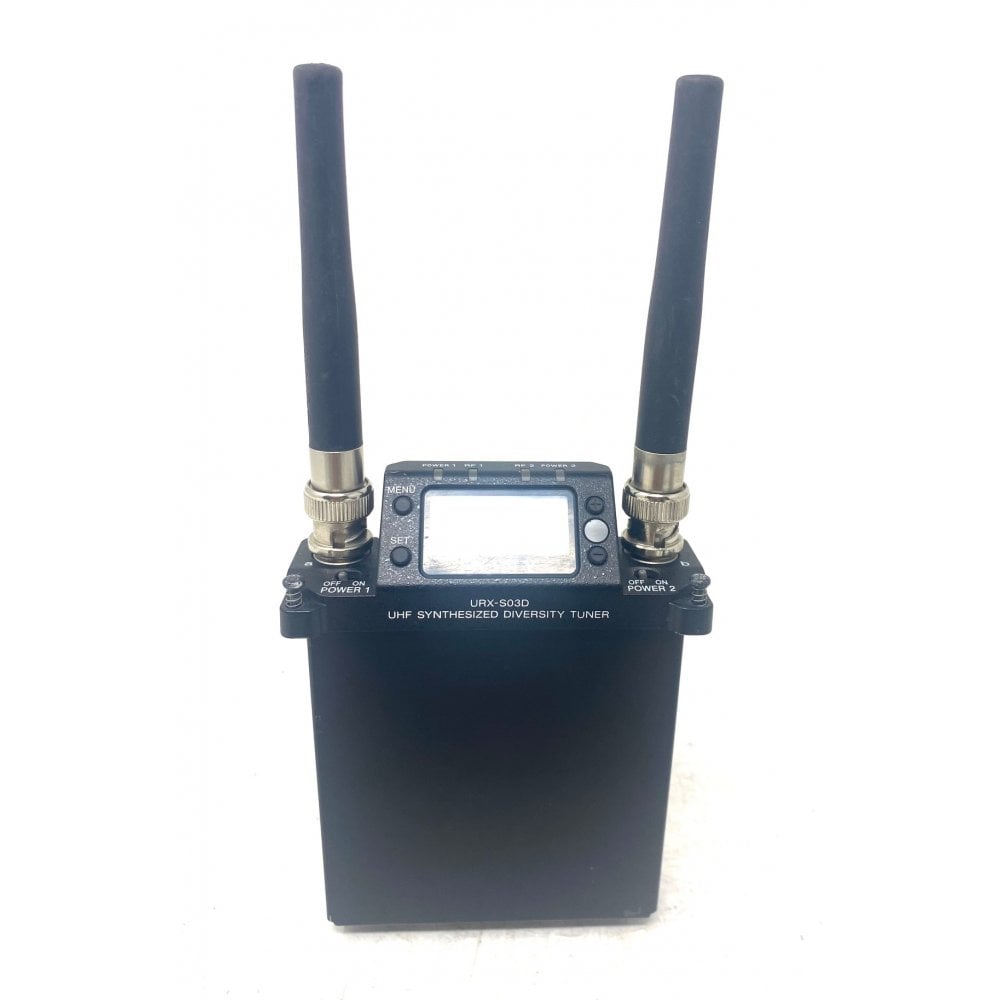

Sony URX-S03D/K42 UWP-D Portable Two-Channel Wireless Receiver, Used

Sony URX-S03D/K42 UWP-D Portable Two-Channel Wireless Receiver, Used

3 months warranty – Excellent condition.

UWP-D Portable Two-Channel Wireless Receiver from Sony

The URXS03D/K42 UWP-D Portable Two-Channel Wireless Receiver from Sony operates in UHF-TV channels 42-51 and fits directly in the slot of Sony XDCAM and HDCAM camcorders.

It can be used to capture audio when paired with the UTX-B03HR beltpack transmitter & microphone (sold separately) and features easy channel setting functions, stable RF transmission, and Digital Audio Processing technology for wireless audio and video applications.

The receiver can access 2,541 frequencies and offers True Diversity reception. It is built with a robust metal body and has a weatherproof structure, a selectable squelch, and wide frequency coverage with a choice of channels available. In addition, it also works seamlessly with Sony 800 and UWP Series transmitters. It includes two whip antennas.

True Diversity Reception System for Stable Reception

Wireless microphone transmission systems are typically subject to interruptions in reception (RF signal dropout). The UWP-D series reduces this to a minimum and utilizes a true diversity reception per channel. It compares the RF signals from the two antennas and automatically selects the stronger signal for output

Digital Audio Processing

Sony Digital Audio Processing is used to improve sound quality and transient response performance compared to conventional analog wireless systems. Analog companding systems cannot accurately reproduce sounds such as a bell, tee shot or handclap, but Sony Digital Audio Processing reproduces them faithfully

Direct Digital Connection to Camcorders

The URX-S03D provides a digital connection with two-channel (with XDCAM camcorders) and a single-channel (with HDCAM camcorders) via a D-sub 15-pin interface. With HDCAM camcorders, two audio signals from two transmitters can be output in the single channel as a two-channel mixing function. Sony camcorders can also show each wireless microphone's RF/AF level in the viewfinder

Automatic Channel Setting Mode

The Auto Set channel mode allows the user to find and set available frequencies to use within the operating frequencies of the system. The receiver will automatically set the transmitter channel using the IR Sync feature

Easy Channel Scan

With its Clear Channel Scan, Active Channel Scan function and IR Sync features, the system detects unoccupied channels and selects the most appropriate channel automatically for fast and easy system setup

Compatible with Sony 800 & UWP Series Wireless

DSP enables a digital compander to match Sony's analog wireless system. The WP-D Series transmitters and receivers are also compatible with Sony's WL-800 Series and UWP Series, allowing users to switch between different companding modes

Wide Frequency Coverage

The switching bandwidth covers a wide area and has a wide choice of channels available

PLL Synthesized System

The receiver achieves stable transmission and reception by using a UHF PLL (Phase Locked Loop) frequency synthesized system, which provides accurate carrier signal frequencies. This system is used in both the transmitters and tuners, so that a stable carrier is generated at the transmitter, and accurately tuned in at the tuner. This PLL-controlled system provides highly stable, user-selectable frequencies in increments of both 25 kHz and 125 kHz

Key Features

True Diversity Reception System

Direct Digital Connection to Camcorder

Automatic Channel-Setting Mode

Fast & Easy Channel Scan

Compatible with Sony 800 & UWP Systems

Wide Frequency Coverage

PLL Synthesized System

Sony URX-S03D/K42 UWP-D Portable Two-Channel Wireless Receiver

True Diversity Reception System

Direct Digital Connection to Camcorder

Automatic Channel-Setting Mode

Fast & Easy Channel Scan

Compatible with Sony 800 & UWP Systems

Wide Frequency Coverage

PLL Synthesized System

Antenna Connector: 2 X BNC-R, 50 Ohms

Squelch: Level: 15 dBµ / Off (0 dBµ = 1 µV)

Audio Output Level: -40 dBu (0 dBu = 0.775 Vrms with modulating frequency of 1 kHz and frequency deviation of ±5.0 kHz)

Accessory Connector: 1 x D-sub connector (15-pin)

Reception: True diversity method

Oscillator: Crystal-controlled PLL synthesizer

Frequency Band:  42/51: 638 to 698 MHz

Signal to Noise Ratio: 60 dB or more (A-weighted)

Voice Delay: 0.375 ms

Deemphasis: 50 μs

Frequency Deviation: ±5 kHz

Frequency Response: 40 Hz to 18 kHz

Distortion: 0.9% or less (with modulating frequency of 1 kHz and frequency deviation of ±5.0 kHz)

Tone Signal:

In UWP-D Compander Mode: 32.382 kHz

In UWP Compander Mode: 32 kHz

In WL800 Compander Mode: 32.768 kHz

Indicators: Power 1/2, RF 1/2

Operating Temperature: 32 to 122°F (0 to 50°C)

Storage Temperature: -4 to 131°F (-20 to 55°C)

Supply Voltage: 7.0 VDC (supplied from camcorder or wireless adapter)

Current Consumption: 200 mA or less (during 7 VDC)

Dimensions: 3.5 x 4.6 x 1.2" / 88.0 x 116.2 x 31.2 mm

Weight: 11 oz / 303 g

In the Box:

SO3D Body
2x Sony Antenna
