Used

Canon Used CN7x17 KAS S/P1 17-120mm T2.95 PL-MOUNT

code: FMP60086LPBR

Now 8234,94 €
Secure yours with a deposit of
|
|
Save: 2058,74 € Save 20%

Status | Usually dispatched within 24 hours

Add to Compare

Description
Specification
Included In Box
Reviews
(0)

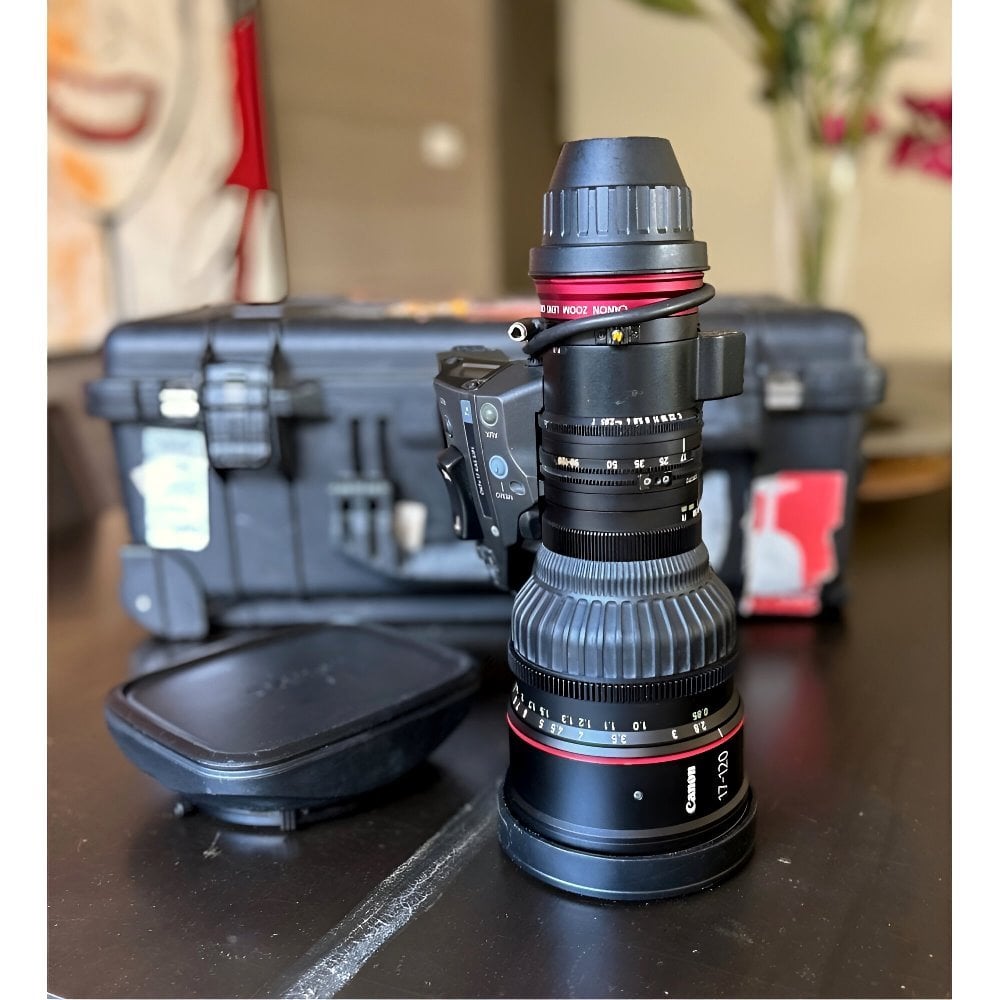

Used CN7x17 KAS S/P1 17-120mm T2.95 PL-MOUNT

Excellent Condition - 3 months warranty

CC - 9002190000

COO - Japan

The Cine-Servo 17-120mm T2.95 with PL mount from Canon is designed to combine the functionality and form factor of a broadcast, ENG-style motorized zoom lens with the optical precision of a cinema zoom. The lens is designed for use on cinema cameras with sensors up to Super 35mm (26.2 x 13.8mm) in size and is suitable for 4K acquisition. With a detachable drive mechanism and support for rod attachment, it is designed to be equally at home whether being used by a solo camera operator or a full production team. With a 17 to 120mm focal length, the lens features 7x zoom and has a maximum aperture of T 2.95 when set to 91mm or wider. Additionally, it features an 11 blade iris to create circular bokeh patterns as well as to reduce refraction. For ENG-style shooters the lens drive features servo motors powering zoom, focus, and iris. The lens can be connected to the camera either using a standard 12-pin connector or will communicate directly through the lens mount when attached to compatible cameras. Three 20-pin connectors below the servo housing allow many Canon and third-party zoom, focus, and iris controllers to be connected.

Model Name - CN7x17 KAS S/P1 17-120mm T2.95 PL-MOUNT

Mount - PL

Zoom Ratio - 7x

Focal Length - 17-120mm

Maximum Aperture - T2.95 at 17-91mm T3.9 at 120mm

Iris Blade - 11

M.O.D (from Image Plane) - 0.85m / 2.8'

Front Diameter - Φ114mm

Approx. Size (WxHxL) - 125.0 x 174.2 x 254.9mm

Approx. Mass - 2.9kg

Pitch of Focus/Zoom/Iris Gear - Focus: 0.8/0.5 Zoom: 0.5 Iris: 0.4

Drive Unit Specification

Maximum Speed Iris - 1.3 sec

Maximum Speed Zoom - 0.5 sec

Maximum Speed Focus - 1.6 sec

Low-speed drive Zoom - 300 sec

In The Box:-

1x CN7x17 KAS S/P1 17-120mm T2.95 PL-MOUNT

1x Custom Peli Case

1x Condition Report From Canon
