Vaxis Storm Cine 8 Kit, Ex Demo

Vaxis Storm Cine 8 Kit, Ex Demo(FMP59996RPBR)

Excellent condition

3 month warranty

Self-Developed System

Vaxis' first and only self-developed CINE OS touch operating system.

Tetrahedral interpolation 3D-LUT

Precise colour adjustment in three-dimensional space, more efficient and accurate LUT

Picture-in-picture mode

Multi-channel access to the screen, change the picture-in-picture display position to anywhere

Comparison of screenshots and LUTS

Non-traditional image freeze, real screenshot and the real time image can be compared directly in the system.

Abundant wireless control

Have all the functions of traditional wireless video system and optimized the interaction method. Provides different antenna selection methods and integrates frequency sweep function.

Detailed monitoring instrument

Waveform graphs, vector diagrams, histograms, cover and contain everything.

True Full Frame 4K READY

Vaxis CINE8 pioneered 6G SDI image input and output, true full-frame 4K display, 303PPI super retina visual clarity.

1+1 > 2

Simultaneous monitoring of multi-angle images of AB camera, supports synchronous import of multiple signal sources, true 1+1>2

Changeable Antenna

No antenna design with attractive appearance and stable performance at the same time, also external antennas can be connected for better distance and performance.

HDR Dynamic Compensation

Optimize and adjust ordinary HDR film source frame by frame to super-quality HDR display recreating life like details.

AFCA

Self developed AFCA intelligent focus assist algorithm and dynamic video enhancement algorithm create an unprecedented sharpness of the edge of the picture and control the most convenient way to focus.

Compatible With Most Batteries

We remade the mount, which is compatible with most batteries on the market. Easy to replace.

Interface SDI input connector, SDI output connector, HDMI input connector, DC IN (2PIN Lemo connector), TYPE-C connector, 5 antenna connectors (SMA male)

Input Voltage 8-18V DC

Power consumption ≦21W

Screen size 8.9 inches, touch screen

Screen resolution 2560*1600 pixels

Brightness 1500cd/m2

Contrast Ration 1000:1

Appearance size 216 x 144 x 28.6mm (Without battery mount)

Weight 816g

HDMI Input Video Format 4096* 2160P25/24/23.98

3840* 2160P30/29.97/25/24/23.98

1920* 1080P60/59.94/50/30/29.97/25/24/23.98

1920* 1080I60/59.94/50

1280* 720P60/59.94/50

SDI Input Video Format 422-10bit-YCbCr:

4096*2160P25/24/23.98(4K DCI)

3840*2160P30/29.97/25/24/23.98(4K UHD)

2048*1080P60/59.94/50

1920*1080P60/59.94/50/48

1280*720P60/59.94/50

422/12bit-YCbCr:

2048*1080P30/29.97/25/24/23.98

2048*1080Psf30/29.97/25/24/23.98

1920*1080P30/29.97/25/24/23.98

1920*1080Psf30/29.97/25/24/23.98

1920*1080I60/59.94/50

444-10/12bit-YCbCr/RGB:

2048*1080P30/29.97/25/24/23.98

2048*1080Psf30/29.97/25/24/23.98

1920*1080P30/29.97/25/24/23.98

1920*1080Psf30/29.97/25/24/23.98

1920*1080I60/59.94/50

WHDI Supported Video Formats 1920*1080P60/59.94/50/30/29.97/25/24/23.98

1920*1080Psf30/29.97/25/24/23.98

1920*1080I60/59.94/50

1280*720P60/59.94/50

SDI Output Video Format (DUT Output Supported) SDI Input to SDI Output:

422-10bit-YCbCr

4096*2160P25/24/23.98(4K DCI)

3840*2160P30/29.97/25/24/23.98(4K UHD)

2048*1080P60/59.94/50

1920*1080P60/59.94/50/48

1280*720P60/59.94/50

422/12bit-YCbCr

2048*1080P30/29.97/25/24/23.98

2048*1080Psf30/29.97/25/24/23.98

1920*1080P30/29.97/25/24/23.98

1920*1080Psf30/29.97/25/24/23.98

1920*1080I60/59.94/50

444-10/12bit-YCbCr/RGB

2048*1080P30/29.97/25/24/23.98

2048*1080Psf30/29.97/25/24/23.98

1920*1080P30/29.97/25/24/23.98

1920*1080Psf30/29.97/25/24/23.98

1920*1080I60/59.94/50

HDMI input to SDI output 1920*1080P60/59.94/50/30/29.97/25/24/23.98

1920*1080I60/59.94/50

1280*720P60/59.94/50

WHDI to SDI output 1920*1080P60/59.94/50/30/29.97/25/24/23.98

1920*1080Psf30/29.97/25/24/23.98

1920*1080I60/59.94/50

1280*720P60/59.94/50

Audio 3.5mm headphone output

Upgrade method USB flash drive (TYPE-C), USB flash drive file system FAT32 mode

Wireless modulation OFDM 16QAM

Wireless operating frequency 5.1G-5.9G

Wireless reception sensitivity -75dBm

Attention SDI conversion, 4K support only

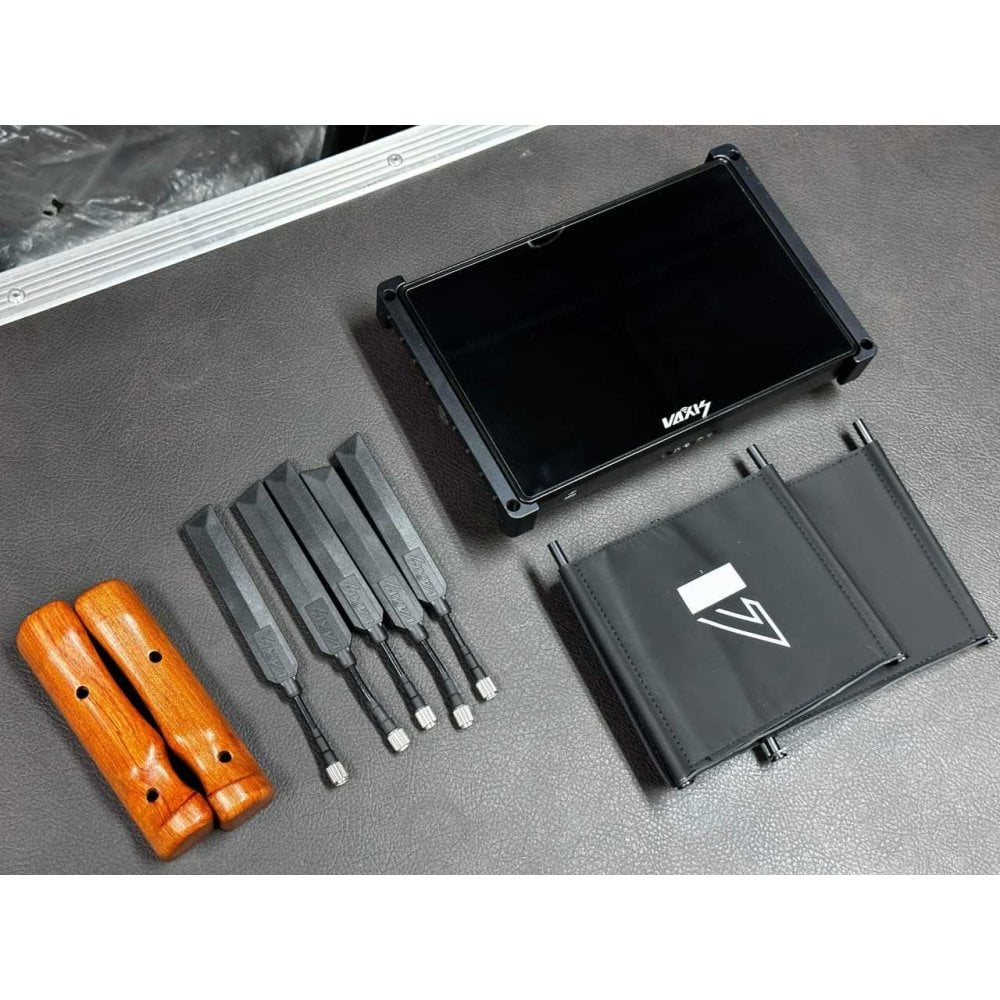

In the Box:-

1x Cine 8 Monitor

5x Blade Antenna

1x Dtap Power Cable

2x Wooden Handles

1x Flight Case
