Used

VolAmp Ltd Camlinx connector/mixer

code: FMP59331KSSH

Now £250.00
Secure yours with a deposit of
RRP: £1,800.00
|
|
Save: £1,550.00 Save 86%

Availability | Usually dispatched within 24 hours

Add to Compare

HD/SD-SDI in both directions

. Tally

. 2 serial control ports

. Sync

. Talk back

. Power /cable copper + fibre optic cable –light weight 6.5 Kg /100m

The CamLinx system multiplexes video and analogue signals ( in digital form ) down a single fibre in

each direction between the base station and head.

The fibre is capable of very high signal data rates and consequently HD does not require any

compression that would result in frame delay

The fibre optic cable may have copper conductors within the sheath. Power is sent down at nominally

48 volts and converted to the camera voltage with high efficiency. This allows the use of relatively light

cables for distances up to 250m. A 100m cable weighs 6.5 Kg. For longer distances a local power source

or battery may be used.

Description
Specification
Reviews
(0)

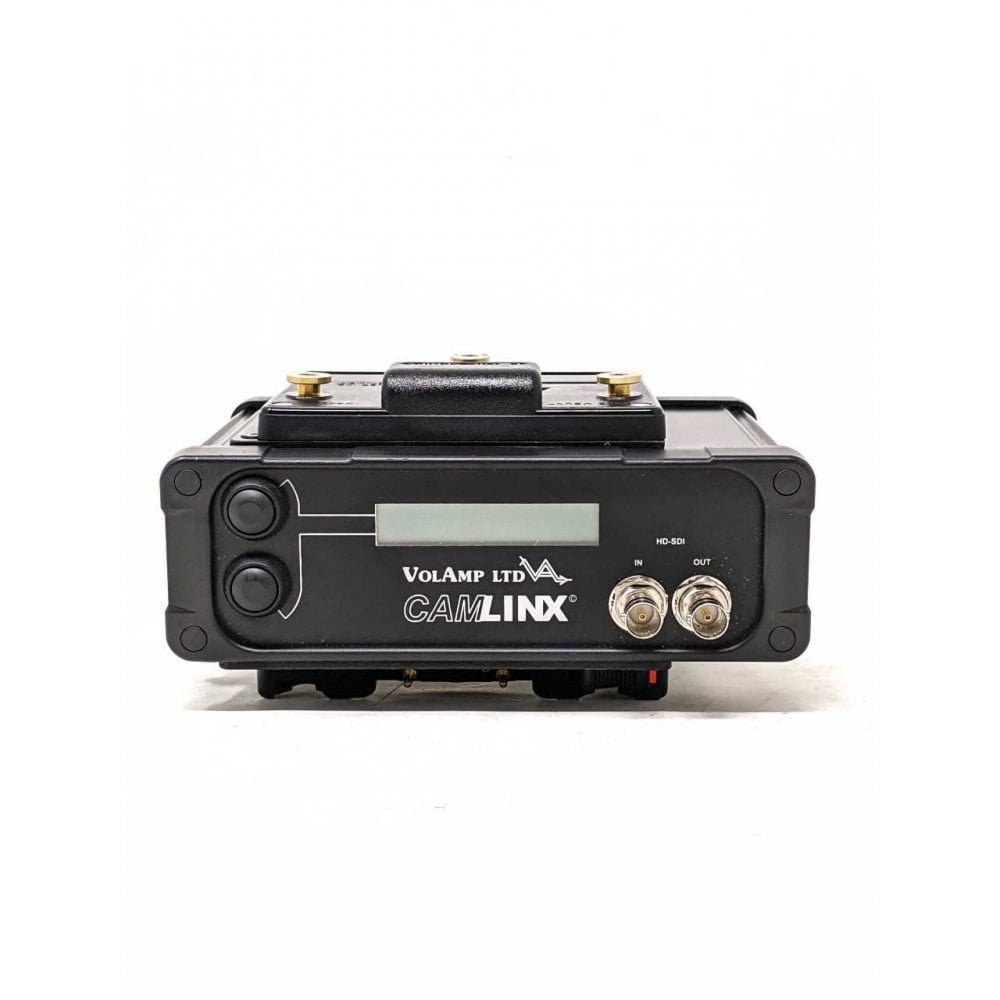

VolAmp Ltd Camlinx connector/mixer(FMP59331KSSH)

Good condition

The Camlinx System is a complete camera remote control system for use with single or multi camera units. The unit is lightweight and off ers full control of cameras providing all the features expected from a multi camera OB package namely; rack control of the camera head, HD/SD-SDI video feed and return video, Tally, Talkback, Syncs, audio feed and programme sound.

HD/SD-SDI Video Pal or NTSC Compati ble ( Head stati on to cable connector to suit client requirement cost of opti ons listed below)

2 Channel’s of RS 232/422 Bi directi onal Remote control data channels For RCP units

Return video output HD SDI or SD SDI

Talk back intercom facility with wide dynamic range and volume control at camera head

Tally light with on off switch built in. Additi onal Tally output for viewfi nder display

Fibre Link performance monitoring feature

Menu display of head unit control parameters dual butt on controlled

Video output accepted HD SDI or SD SDI

Power supply built into head stati on as standard converts down from 48V to 13.5v

Batt ery power opti on as back up or for long cable runs (over 200m)

Clip on system using camera batt ery mount EG Paglok or V Lock System

Piggy back feed through capability for Batt ery power

Light weight under 1.15 Kg
