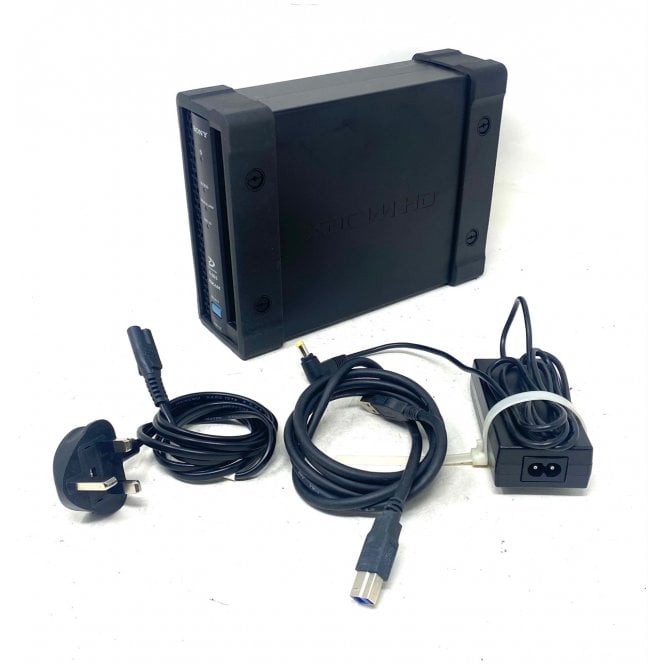

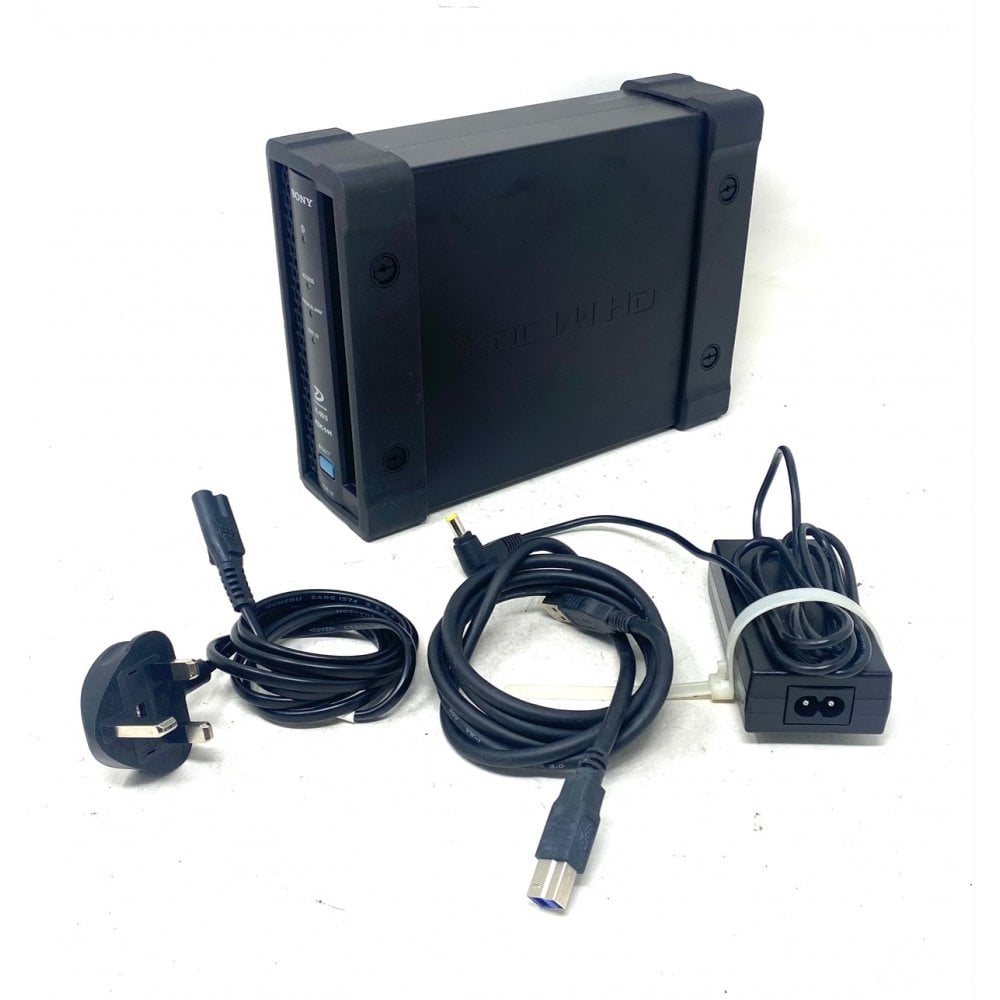

Sony PDW-U2 XDCAM disc drive unit, used

Sony PDW-U2 XDCAM disc drive unit, used

Excellent condition -

The Sony PDW-U2 is a compact, professional XDCAM Professional Disc drive designed for direct access to XDCAM media from a PC or Mac. It provides high-speed read/write access via USB 3.0 and supports a wide range of XDCAM recording formats, including XDCAM HD422, XDCAM HD, XDCAM SD, MPEG IMX and DVCAM.

Ideal for broadcast, post-production, media archiving and professional video workflows, the PDW-U2 provides a convenient way to access, transfer and manage files stored on Sony Professional Disc media.

Key Features

Supports XDCAM HD422, XDCAM HD and XDCAM SD formats Compatible with MPEG IMX and DVCAM recording formats Supports Professional Disc media up to 128GB Compatible with quad-layer write-once, dual-layer and single-layer Professional Discs USB 3.0 SuperSpeed interface for high-speed data transfer Also supports USB 2.0 Direct access to Professional Disc files from a connected PC or Mac Supports both read and write operations with compatible software/NLE systems Approximately 2.6× faster read and 1.5× faster write performance than the earlier PDW-U1 Compact and portable design Can be operated horizontally or vertically Supports XDCAM proxy video and audio Suitable for professional media ingest, transfer, editing and archiving workflows Supported Professional Disc Media

 The PDW-U2 supports:

PFD128QLW — 128GB quad-layer write-once Professional Disc PFD50DLA — 50GB dual-layer Professional Disc PFD23A — 23GB single-layer Professional Disc

 At 50 Mbps XDCAM HD422, recording/playback capacity is approximately 95 minutes on PFD50DLA and 43 minutes on PFD23A. Sony specifies more than four hours of HD422 50 Mbps recording on the 128GB quad-layer media.

 Supported Recording Formats

Video:

MPEG HD422 — CBR, 50 Mbps

MPEG HD — HQ 35 Mbps, SP 25 Mbps, LP 18 Mbps MPEG IMX — 50/40/30 Mbps DVCAM — 25 Mbps Proxy Video — MPEG-4

Audio:

MPEG HD422 — 8 channels, 24-bit, 48 kHz

MPEG HD — 4/2 channels, 16-bit, 48 kHz

MPEG IMX — 8 channels, 16-bit/48 kHz or 4 channels, 24-bit/48 kHz DVCAM — 4 channels, 16-bit, 48 kHz Connectivity

USB: SuperSpeed USB 3.0

USB Connector: USB 3.0 Standard-B

Power: DC 12V via supplied AC adaptor

The drive allows Professional Disc media to be accessed directly from a computer using USB. Sony provides XDCAM Drive Software for managing Professional Disc media and drive functions.

The Sony PDW-U2 is particularly suited to:

Broadcast video production

Television production

Post-production facilities

XDCAM media ingest

Professional video editing

Media transfer and backup

Long-term media archiving

Technical Specifications

Specification       Details

Model   Sony PDW-U2

Product Type      XDCAM Professional Disc Drive Unit

Media Drive        Professional Disc Drive × 1

Maximum Supported Media        Up to 128GB

Interface              USB 3.0 / USB 2.0

USB Connector  USB 3.0 Standard-B

Power Requirement        DC 12V

Power Consumption       19.2W

Dimensions         67.4 × 164 × 219 mm

Weight  Approx. 1.7 kg

Operating Temperature 5°C to 40°C

Storage Temperature      -20°C to +60°C

Operating Position           Horizontal or vertical

In the Box;

1x Sony PDW-U2 Professional Disc Drive Unit 1x AC adaptor 1x Thunderbolt cable
