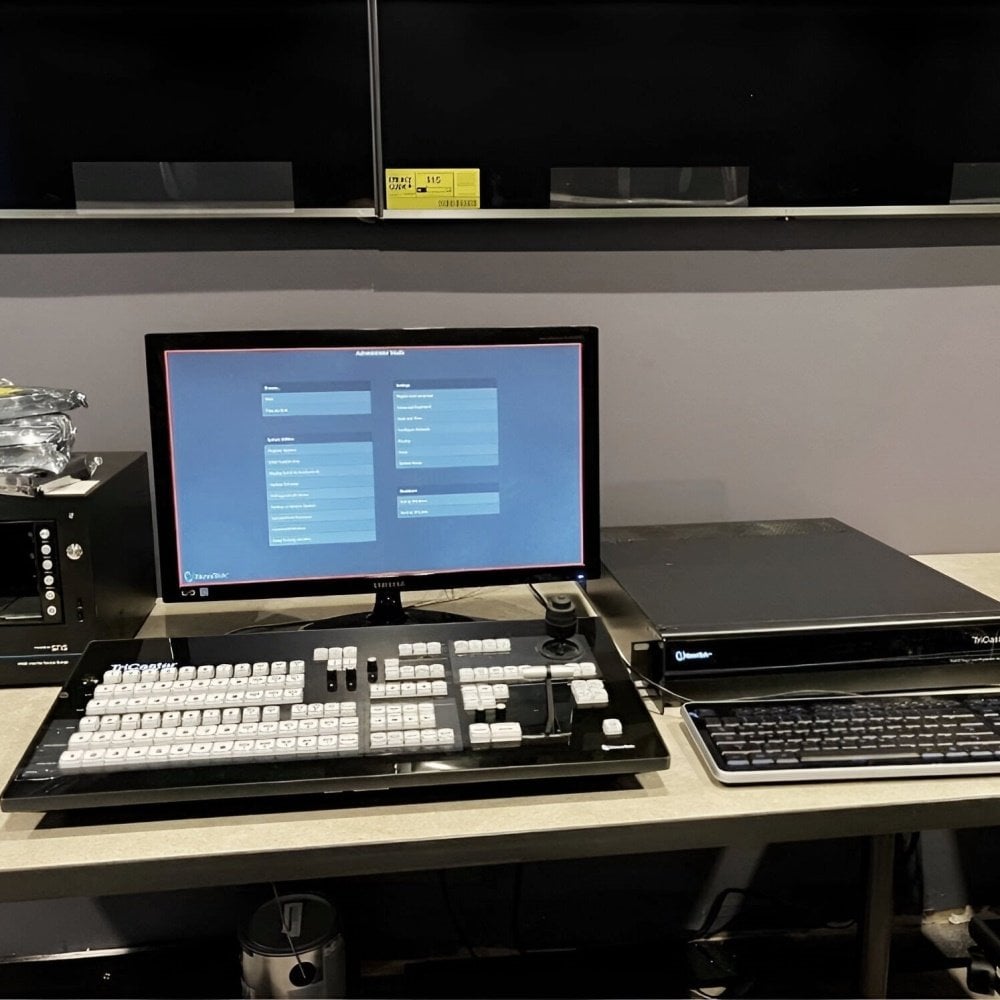

TriCaster TC410 Plus Base Bundle, used

TriCaster TC410 Plus Base Bundle, used(FMP59927JPBR)

3 Month warranty

Good condition

Set up a multicamera broadcast with this TriCaster TC410 Plus Base Bundle from NewTek, which includes the TriCaster 410 Plus and the TC1 Small Control Panel. The 410 Plus is a multicamera, multi-input, multi-format, 2 RU-sized switcher system that allows you to simultaneously broadcast, project, stream, and record. It supports real-time 4 M/E compositing and offers virtual sets, transitions, and brand elements, and audio is adjustable for all input sources.

Built-in IsoCorder technology allows recording up to six isolated, simultaneous feeds during a live production and can send four independent video mix outputs via NDI. You can instantly publish content to popular social media sites, upload to FTP sites, transfer to storage volumes/network locations, share clips and stills during production, or upload your entire show within minutes after production wraps. Custom memory presets and key commands allow you to streamline sophisticated operation sequences that are too complex for real-time action execution.

An advanced control interface is built into the system, and the hardware TC1 Small Control Panel is also included. Its intuitive key layout, illuminated buttons, and durable design help you switch and control your broadcasts with ease.

Vizrt TriCaster TC410 Plus

Simultaneously broadcast, stream, and record live productions from virtually anywhere with the TriCaster TC410 Plus from NewTek. This compact, all-in-one eight-input switcher lets you easily switch between four HD/SD-SDI or eight NDI video sources, mix audio, add graphics and titles, and add advanced effects such as virtual sets and animated transitions. Featuring an intuitive and full-featured control software, the TriCaster TC410 Plus is suited for both new users and seasoned professionals.

In addition to the four HD/SD-SDI inputs, you can choose from eight NDI devices on the network including computers, PTZ cameras, or even wireless capture devices. Two HD/SD-SDI outputs, four NDI IP video mix outputs, and two independent IP live streams are supported for sending the program output with audio to external devices and services. The SDI, NDI, and streaming formats support up to 1080p59.94 resolutions, and the TC410 Plus also supports four-channel audio mixing.

The TriCaster TC410 Plus features 3TB of internal storage and also supports recording to external storage via USB 3.0. The comprehensive switcher also supports live streaming to multiple platforms and services simultaneously. An optional control panel can also be incorporated for traditional tactile control with a T-bar and illuminated buttons.

Broadcast Quality Production

TriCaster TC410 Plus is an integrated video production system designed to create multi-platform productions live and on-demand. Your shows will be polished; engage with viewers through social and second-screen experiences, deliver revenue opportunities, and extend your brand. TriCaster 410 Plus is scaled for smaller racks and mobile units and gives you an end-to-end IP workflow from acquisition to delivery.

Minimal Complexity

TriCaster TC410 Plus enables producers to create high-end video smoother, faster, and easier. With only 2 RU of rack space in a flight pack or tight space, you gain the freedom of movement that's just not possible with racks of individual components pieced together. With an all-in-one design, do-it-yourself setup, and hundreds of entry-level and advanced production capabilities, you can be on your way to building captivating productions from anywhere simply and efficiently.

Reach Diverse Viewers

Live stream to multiple destinations simultaneously, including Facebook Live, Microsoft Azure, Periscope, Twitch, Ustream, YouTube Live, and more. Share media to multiple user accounts on your favorite social networks like Facebook, Imgur, LinkedIn, Twitter, Vimeo, YouTube, and more.

Customizable Workflows

Connect cameras directly or expand your available live sources over IP, flex your workspace and control to suit a single operator or a small team, and output to one or multiple destinations simultaneously on site or across the network.

Automated Tasks

Record common moves with macros and expand your production possibilities while reducing any on-air mistakes. Streamline sequences with a single action when they're too complicated to execute live. Use MIDI control, on-camera hot spots, and PTZ cameras to make smaller productions look like larger shows.

Control in the Palm of Your Hand

NewTek LivePanel for TriCaster TC410 Plus and TC1 makes it easier for more people to have control of the live production process. Providing the ability to configure a custom user interface that delivers exactly the tools and functions you need, accessible through any web browser or operating system.

Live Virtual Sets

Save on studio and set expenses without sacrificing production value. With integrated LiveSet technology, TriCaster TC410 Plus can transport your talent into professionally designed virtual environments complete with multiple angles, virtual camera movements, real-time reflections, specular highlights, animated lens flares, and stunning augmented reality effects that blur the line between virtual and reality. Select from more than 30 included virtual sets, purchase your choice of premium ready-made sets, or create endless custom environments with the optional Virtual Set Editor software.

Vizrt Small Control Panel for TriCaster TC1

Plug in the NewTek Small Control Panel for TriCaster TC1 and switch your entire production. The surface itself has 14 switcher source buttons and 11 M/E source buttons arranged in 1.5 stripes. More advanced control can be had by using the T-bar and 3-axis joystick. This control panel connects via USB, so no separate power supply is required.

Switching Type

Software

Latency

1 to 1.5 Frames

Processing Resolution

1080p at 59.94

Color Processing

4:2:2

Audio Processing

24-Bit

Input

Number of Video Input Sources

8

Video Inputs

4x BNC (HD-SDI) Female

8x RJ45 (NDI) Female

Input Video Format

RJ45 / SDI (4:2:2)

1080p at 23.98/24/25/29.97/50/59.94 fps

1080i 50/59.94 fps

720p 25/29.97/50/59.94 fps

576i / 625 lines 25 fps

480i / 525 lines 59.94 fps

Audio Inputs

2x XLR 3-Pin Stereo Analog Female

3x 1/4" TRS Stereo Analog Female

Input Audio Format

Analog: 24-Bit

Embedded Audio Input

SDI: 2-Channel

RJ45: 2-Channel

Output

Video Output Channels

8

Video Outputs

2x BNC (HD-SDI) Female

4x RJ45 (NDI) Female

2x RJ45 Female

Output Video Format

RJ45 / SDI (4:2:2)

1080p at 59.94 fps

Audio Outputs

2x XLR 3-Pin Stereo Analog Female

2x 1/4" TRS Stereo Analog Female

Output Audio Format

Analog: 96 kHz / 24-Bit

Embedded Audio Output

SDI: 2-Channel

RJ45: 2-Channel

Multiview Output

4-Way Multiview via HDMI, DVI

Monitor Output

1x DisplayPort

1x DVI-I

1x HDMI

Connectivity

Other I/O

1x USB-A Input/Output (Shared Video Record or Audio Input)

2x RJ45 Control, Firmware, LAN, NDI, PTZ Input/Output (Shared LAN, NDI Video, Streaming)

Video Standard Compliance

SMPTE 259M/292M

ITU -R BT.656

IP Video

H.264/H.265/MJPEG:

640 x 480 to 1920 x 1080 at 59.94p Encoding

IP Audio

PCM: Encoding, Decoding

Transport Protocols

Dante, DHCP, HTTP, TCP, TCP/IP, UDP

Simultaneous Streams

2 Streams

Compatible Services

Facebook Live, Livestream, Skype, Twitch, Ustream, YouTube Live

Internal Storage

3 TB

Recording Modes

1920 x 1080p up to 59.94 fps

Hardware

Wi-Fi

No

Bluetooth

No

Power I/O

1x NEMA 5-15R Input

Power Consumption

Power Supply: 400 W

In the box:

• 1 x TriCaster TC410 Plus Base Bundle
