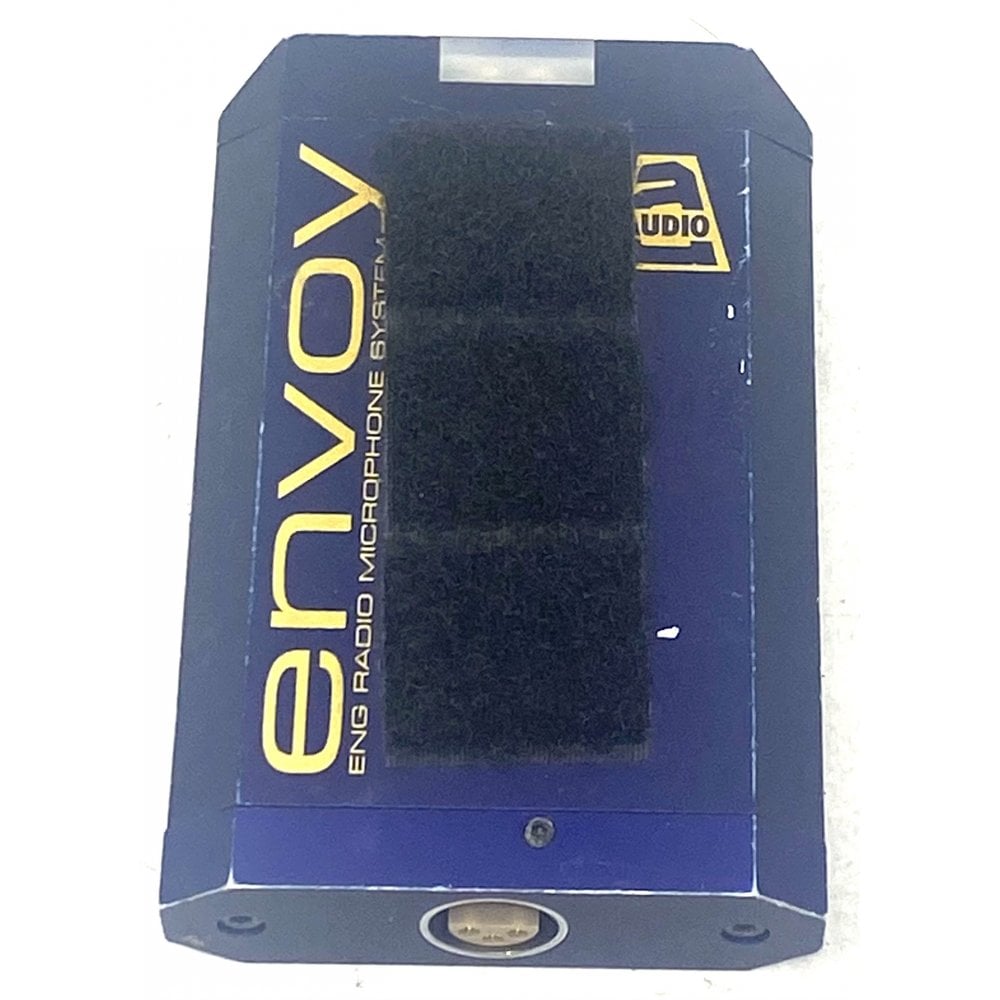

Envoy CXIR CA Receiver,Used

Envoy CXIR CA Receiver,Used

Good condition

3 months warranty

The Audio Ltd Envoy CXiR-CA is a professional UHF true diversity slot-in wireless receiver designed for broadcast, ENG and documentary production. Built specifically for compatible broadcast camcorders, the CXiR-CA integrates directly into the camera's wireless slot, providing reliable RF performance without the need for external brackets or additional cabling.

Employing true diversity technology with dual independent RF receiver sections, the CXiR-CA continuously monitors both antennas and automatically selects the strongest signal to minimise dropouts and maintain uninterrupted broadcast-quality audio. Infra-red remote programming via the Audio Ltd SwitchiR controller enables quick adjustment of frequencies, gain and system settings, even while the receiver remains installed in the camera.

Offering 32 switchable frequencies within a 24 MHz tuning block (frequency block dependent), the CXiR-CA is fully compatible with Audio Ltd Envoy transmitters as well as legacy RMS 2020 and RMS 2000 Series systems, making it a versatile choice for professional location sound, television production and live broadcasting.

Specification Details

Receiver Type UHF True Diversity Camera Slot Receiver

Model CXiR-CA

Diversity System True Diversity with dual independent RF receivers

Frequency Range 470–1000 MHz (frequency block dependent)

Number of Frequencies 32 pre-programmed channels

Switching Bandwidth Up to 24 MHz

Frequency Selection Infra-red programmable via Audio Ltd SwitchiR

RF Control Infra-red remote configuration

Audio Output Camera slot interface (camera dependent)

Compatibility Audio Ltd Envoy transmitters, RMS 2020 & RMS 2000 Series

Antennas Dual antenna diversity system

RF Monitoring Continuous dual-receiver signal comparison

Battery Monitoring Remote transmitter battery status indication

Indicators RF Signal, Diversity Status, TX Battery Status, Receiver Status

Frequency Scanning Supported via AudiR software with compatible devices

Operating Temperature -20°C to +55°C

Compliance ETS 300-422, EN 300-445, FCC (model dependent)

In the box:

• Envoy CXIR CA Receiver
