Used

Envoy CXIR CA & TXBLU-V Kit,Used

code: FMP61915PNSH

Now 235,28 €
Secure yours with a deposit of
|
|
Save: 58,82 € Save 20%

Availability | Usually dispatched within 24 hours

Add to Compare

Description
Specification
Included In Box
Reviews
(0)

Envoy CXIR CA & TXBLU-V Kit,Used

Good condition

3 months warranty

The Audio Ltd Envoy CXiR-CA is a professional UHF true diversity slot-in wireless receiver designed for broadcast, ENG and documentary production. Built specifically for compatible broadcast camcorders, the CXiR-CA integrates directly into the camera's wireless slot, providing reliable RF performance without the need for external brackets or additional cabling.

Employing true diversity technology with dual independent RF receiver sections, the CXiR-CA continuously monitors both antennas and automatically selects the strongest signal to minimise dropouts and maintain uninterrupted broadcast-quality audio. Infra-red remote programming via the Audio Ltd SwitchiR controller enables quick adjustment of frequencies, gain and system settings, even while the receiver remains installed in the camera.

Offering 32 switchable frequencies within a 24 MHz tuning block (frequency block dependent), the CXiR-CA is fully compatible with Audio Ltd Envoy transmitters as well as legacy RMS 2020 and RMS 2000 Series systems, making it a versatile choice for professional location sound, television production and live broadcasting.

Key Features

Professional UHF true diversity slot-in receiver
Designed for compatible broadcast camcorders
Dual independent RF receiver sections
Automatic diversity switching for reliable reception
Infra-red programming via Audio Ltd SwitchiR
32 switchable frequencies
Up to 24 MHz switching bandwidth
Broadcast-quality low-noise audio performance
Compact, lightweight camera-integrated design
Compatible with Audio Ltd Envoy, RMS 2020 and RMS 2000 Series transmitters

Envoy TXBLU-V Transmitter

The Audio Ltd Envoy TXBLU-V is a compact professional UHF bodypack transmitter designed for broadcast, film and live production. Built for use with lavalier, headset and instrument microphones, it provides dependable RF performance and natural, transparent audio quality in demanding production environments.

Designed to work seamlessly with Audio Ltd Envoy receivers, the TXBLU-V offers selectable frequencies within its allocated tuning block, adjustable input gain and robust RF transmission for reliable operation during ENG, television and location recording. Its lightweight construction makes it comfortable for talent while maintaining the durability expected from professional broadcast equipment.

Ideal for interviews, documentaries, live events and studio productions, the TXBLU-V combines dependable wireless performance with Audio Ltd's renowned broadcast audio quality.

Key Features

Professional UHF bodypack transmitter
Designed for broadcast, ENG and film production
Compatible with Audio Ltd Envoy wireless receivers
Compact and lightweight construction
Adjustable microphone input gain
Broadcast-quality audio transmission
Reliable RF performance for demanding environments
Suitable for lavalier, headset and instrument microphones

Audio Ltd Envoy TXBLU-V Bodypack Transmitter Specifications

Specification	Details
Transmitter Type	UHF Bodypack Transmitter
Frequency Range	470–1000 MHz (model dependent)
Number of Frequencies	32 pre-programmed channels
Switching Bandwidth	Up to 24 MHz
RF Output Power	50 mW nominal
Frequency Stability	Better than ETS 300-422
Audio Frequency Response	50 Hz – 18 kHz (±1 dB)
THD	<0.1% at normal operating levels
Gain Control	28 dB adjustment in 8 steps plus 2 line-level settings
Maximum Input Level	+8 dBu (Gain Position 0, 600Ω)
Audio Input	6-pin LEMO microphone/line input
Antenna Connector	SMA
Battery Type	9V (IEC 6LR61) Alkaline
Battery Life	Approx. 6 hours
Dimensions	89 × 60 × 21 mm
Weight	135 g
Operating Temperature	-20°C to +55°C
Control	Infra-red programming via SwitchiR
Features	Adjustable gain, LF cut filter, sleep mode, battery monitoring
Compliance	ETS 300422, EN 300445, FCC

Specification	Details
Receiver Type	UHF True Diversity Camera Slot Receiver
Model	CXiR-CA
Diversity System	True Diversity with dual independent RF receivers
Frequency Range	470–1000 MHz (frequency block dependent)
Number of Frequencies	32 pre-programmed channels
Switching Bandwidth	Up to 24 MHz
Frequency Selection	Infra-red programmable via Audio Ltd SwitchiR
RF Control	Infra-red remote configuration
Audio Output	Camera slot interface (camera dependent)
Compatibility	Audio Ltd Envoy transmitters, RMS 2020 & RMS 2000 Series
Antennas	Dual antenna diversity system
RF Monitoring	Continuous dual-receiver signal comparison
Battery Monitoring	Remote transmitter battery status indication
Indicators	RF Signal, Diversity Status, TX Battery Status, Receiver Status
Frequency Scanning	Supported via AudiR software with compatible devices
Operating Temperature	-20°C to +55°C
Compliance	ETS 300-422, EN 300-445, FCC (model dependent)

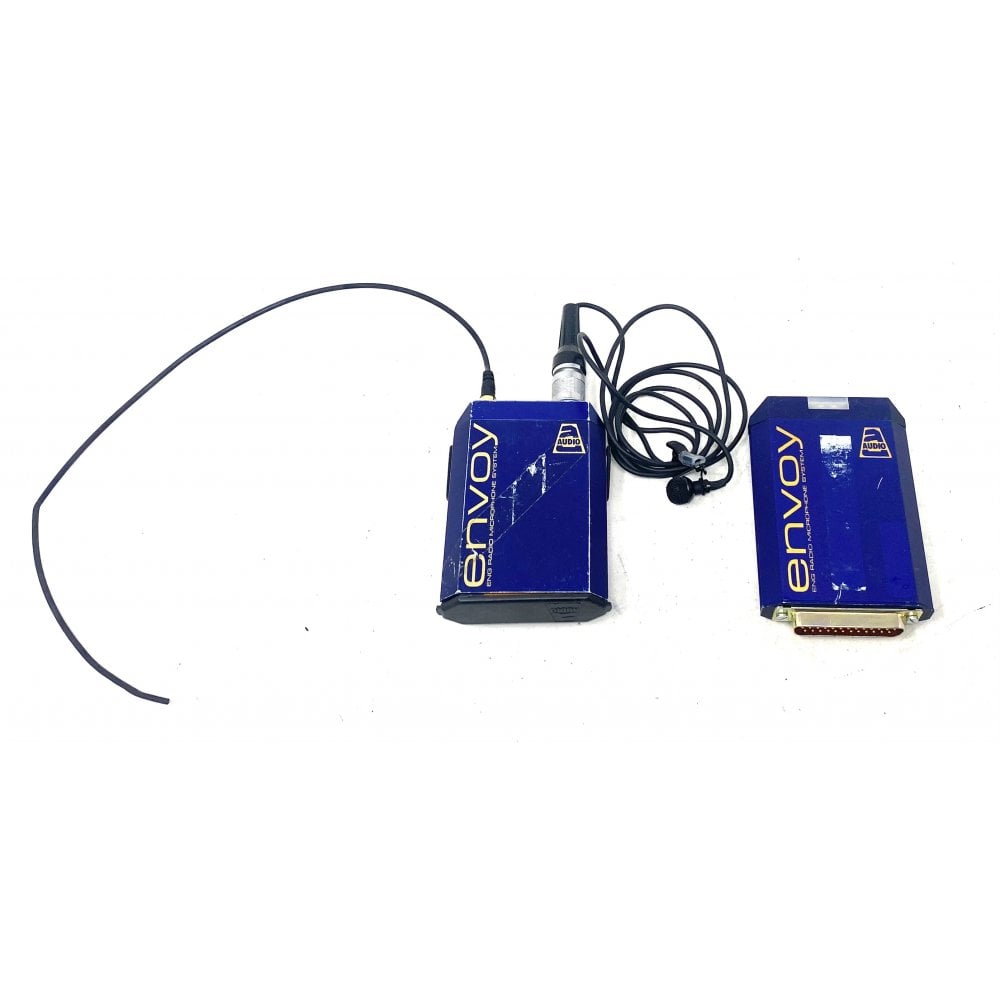

In the box:

Envoy CXIR CA Receiver
Envoy TXBLU-V Transmitter
Lavalier Microphone

Be the first to review Envoy CXIR CA & TXBLU-V Kit,Used. Write a review ›
