Micron SDR770 Receiver,used

code: FMP61930PNSH

Now 82,35 €
Secure yours with a deposit of
|
|
Save: 35,29 € Save 30%

Availability | Usually dispatched within 24 hours

Add to Compare

Professional true diversity UHF receiver
Compact design for camera or recorder mounting
Dual independent RF receiver sections
Digitally controlled PLL frequency synthesis
Outstanding RF sensitivity and selectivity
Broadcast-quality audio performance
Simultaneous mic and balanced line-level outputs
RF signal strength and transmitter battery indication
Internal or external power operation
Compatible with Micron 700 Series transmitters

Description
Specification
Included In Box
Reviews
(0)

Good condition

3 months warranty

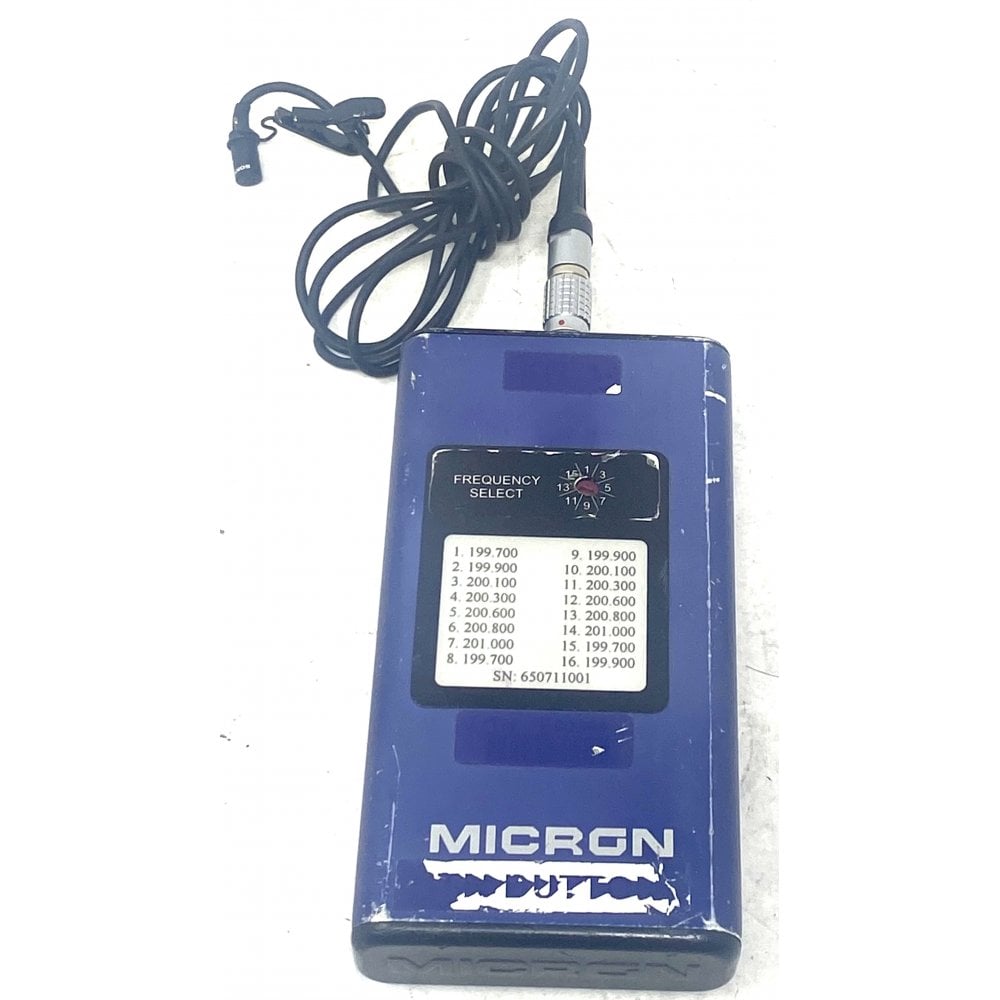

The Micron SDR770 is a compact professional true diversity UHF wireless receiver designed for ENG, EFP, location sound and outside broadcast applications. Its lightweight construction makes it ideal for camera mounting or use with portable audio recorders, while delivering the exceptional RF performance and audio quality that Micron wireless systems are renowned for.

Featuring dual independent receiver sections with automatic diversity switching, the SDR770 significantly reduces signal dropouts and maintains reliable reception even in challenging RF environments. Advanced PLL frequency synthesis and Micron's proprietary noise reduction technology ensure stable operation, excellent selectivity and broadcast-quality audio.

The receiver offers both microphone and balanced line-level outputs, making it suitable for a wide range of professional production workflows. Visual LED indicators provide continuous monitoring of RF signal strength and transmitter battery status, helping operators maintain reliable wireless performance throughout a shoot.

Specification	Details
Receiver Type	True Diversity UHF Receiver
RF System	Dual independent diversity receivers
Frequency Range	Model dependent (available in various UHF bands)
Frequency Control	PLL Synthesised
Channel Selection	Switchable frequencies (model dependent)
Audio Outputs	Balanced Line Output, Microphone Output
Antenna Type	Dual removable antennas
RF Sensitivity	High sensitivity with automatic diversity switching
Noise Reduction	Micron proprietary compander system
Frequency Response	50 Hz – 18 kHz
Signal-to-Noise Ratio	>100 dB (A-weighted typical)
THD	<0.5%
Power Supply	Internal battery or external DC input
Battery Monitoring	Remote transmitter battery indication
Indicators	RF level, AF level, Diversity status, Battery warning
Applications	ENG, Broadcast, Film, Location Sound, Live Production
Compatible Transmitters	Micron TX700 Series

In the box:

Micron SDR770 Receiver
Sony ECM77 BPC Mic
