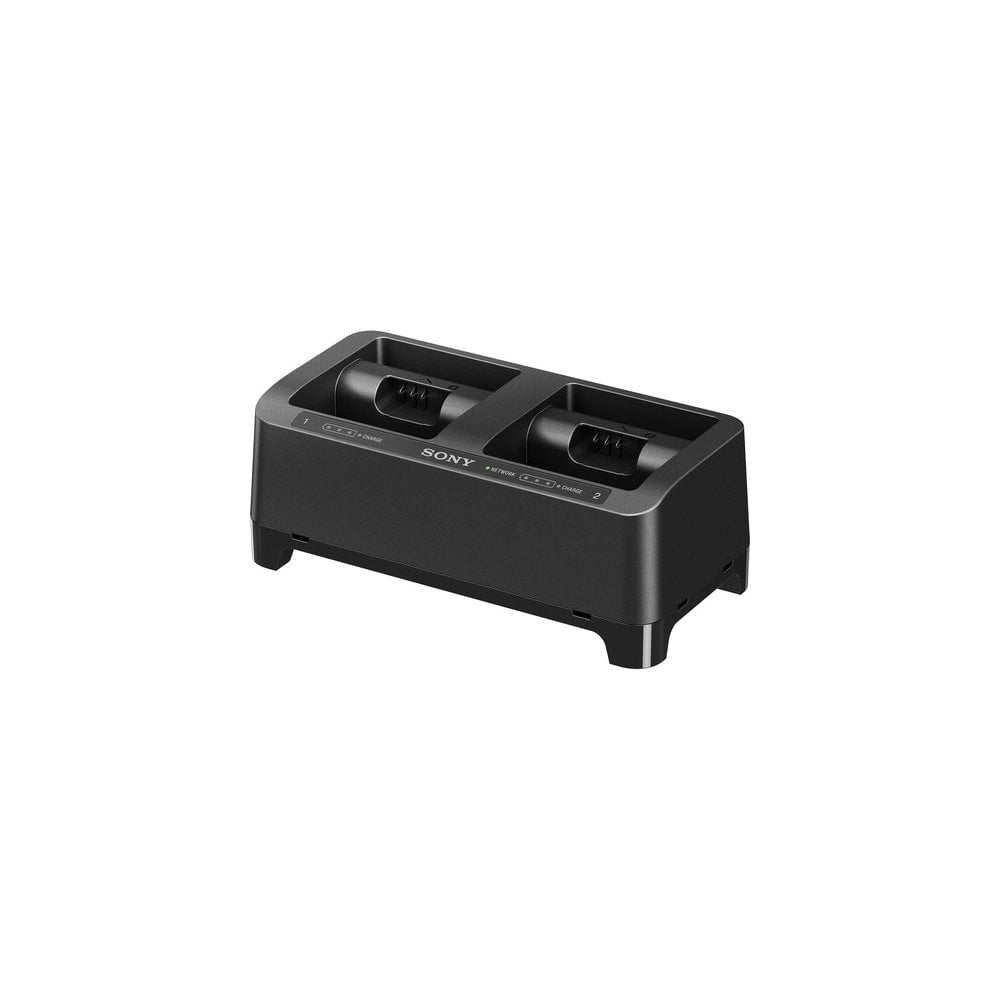

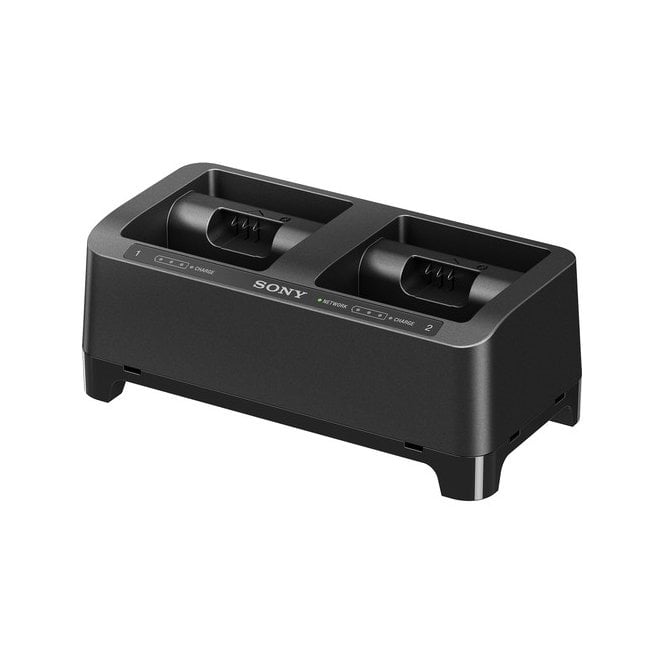

Sony BC-DWX1 Dual Battery Charger for DWT-B03R Wireless Transmitter

Sony BC-DWX1 (BC/DWX1, BC_DWX1, BCDWX1, BC DWX1, bc-dwx1) Dual Battery Charger for DWT-B03R Wireless Transmitter

The BC-DWX1 Dual Battery Charger from Sony is designed for use with the DWT-B03R DWX Series wireless transmitter and NP-BX1 battery pack (sold separately). Two-way powering allows operation with either the AC adapter (sold separately) or PoE (Power over Ethernet) format. The BC-DWX1 Dual Battery Charger can be used to monitor battery status remotely using Wireless Studio PC software. In addition, it is built with a storage charging mode for long-term battery storage, and multiple units can be connected using optional tie wraps.

Power requirements:

• When the PoE device is used: 48 V DC
• When the AC adapter is used: 12 V DC

Current consumption:

• When the PoE device is used: 260 mA or less
• When the AC adapter is used: 1.2 A or less
• Rated output (Charging): DC 4.2V, 0.86A （per 1 slot）

LAN Connector:

• RJ45-type (1)
• 100BASE-TX：Conforms to IEEE802.3u
• 10BASE-T：Conforms to IEEE802.3

• PoE power reception: Conforms to IEEE802.3af
• Operating temperature: 0 °C to 40 °C (32 °F to 104 °F) (unit only)
• Storage/Transport Temperature: –20 °C to +60 °C (–4 °F to +140 °F)
• Dimensions (W x H x D): Approx. 186x71x91 mm
• Mass: Approx. 290 g

In the box

• 1x DWX-BC1 charger unit
• 1x CD-ROM
