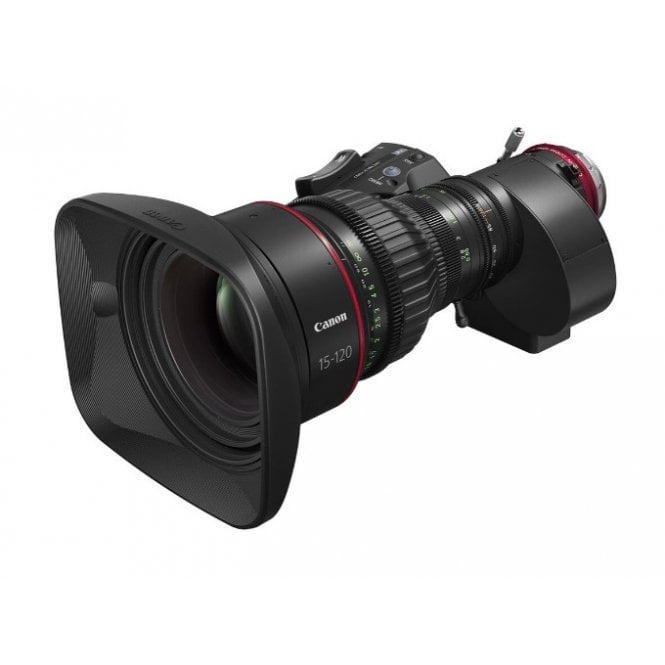

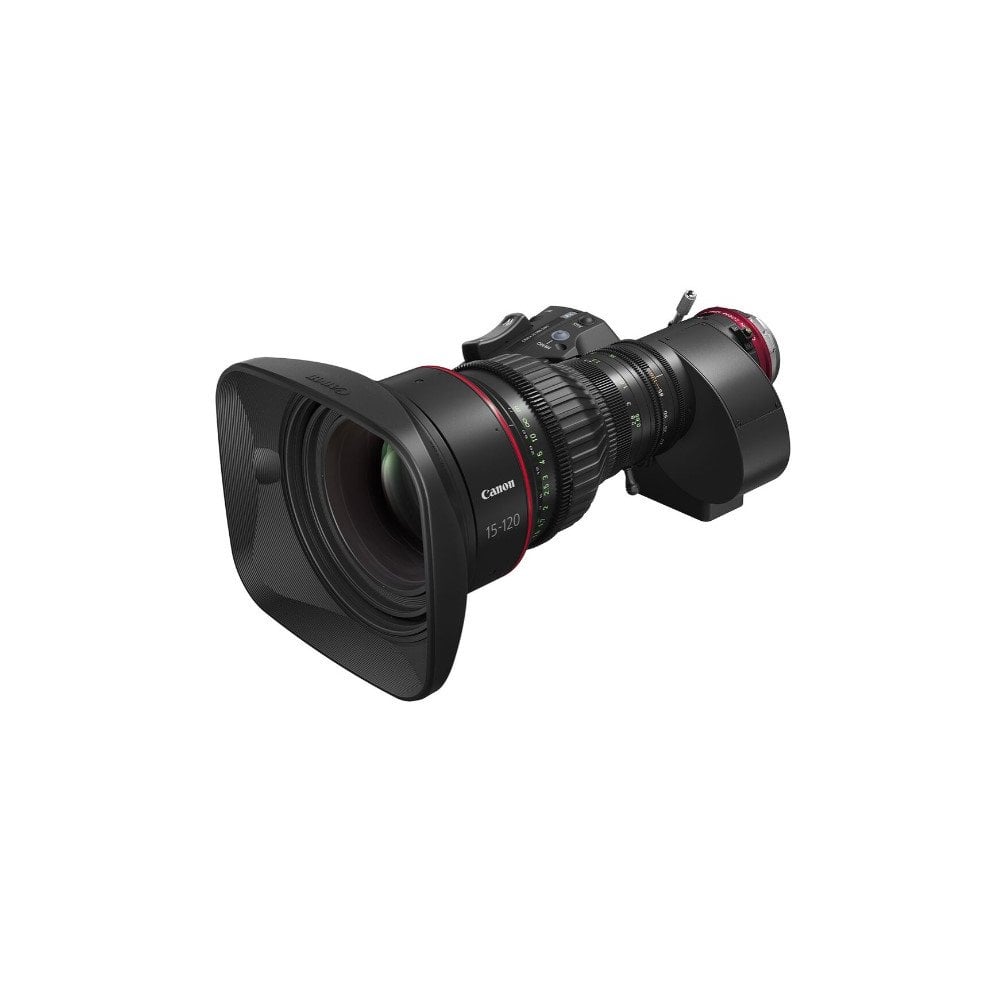

Canon CN8x15-IAS-S/P1 15-120mm 4k Cine Servo Lens PL

Canon CN8X15-IAS-S/P1 (CN8-15-IAS-S-P1, CN8/15-IAS-S/P1, CN8/15/IAS/S/P1, CN8 15 IAS S P1) 15-120mm 4k Cine Servo Lens PL

With outstanding optical performance for HDR, 4K and 8K productions, the CN8x15 IAS S E1/P1 supports Cooke /i Technology™, ZEISS eXtended Data™ and EF mount communication. Engage the 1.5x Extender for reach up to 180mm and full coverage for full-frame sensor cameras

Exceptional quality, exceptional clarity

Capture your subject in exquisite edge-to-edge detail with Super35mm or Full Frame Cameras1 while an 11-blade iris produces beautiful specular highlights with cinematic depth-of-field.

Wide-angle with extra reach

The CN8x15 IAS S E1/P1 is Canon’s widest Cine-Servo lens, ideal for live events and creative productions. And with a built-in 1.5x Extender, it gives Super35mm sensor cameras greater reach as well as providing full frame sensor cameras with edge-to-edge coverage for large format productions.

Advanced communication and efficiency

The EF mount offers advanced lens communication for precise metadata recording. The lens also supports Cooke /i Technology™ and ZEISS eXtended Data™ communication via PL mount.

Incorporate into Virtual Systems

A 20-pin connector links to the 16-bit encoder for positional information and supports Cooke /i Technology™ as well as ZEISS eXtended Data™, which can be used for XR and Virtual solutions.

Unified Canon colour

Match lenses across Canon’s entire video lens catalogue and deliver organic, warm, pleasing skin tones with accurate and consistent colour.

Lens mount versatility

Available in both EF and PL mount; authorised Canon service centres2 can change the mount to accommodate different systems and workflows for greater flexibility.

Robust, reliable – and built to perform

Remove the drive unit to operate the CN8x15 IAS S E1/P1 like a traditional cine lens. With a front diameter of 114mm use industry-standard accessories such as matte boxes and follow focus units. The focus ring sports 0.8 and 0.5 pitch gears with improved markings and engravings.

Enhanced Servo Drive Unit

Three 20-pin connectors integrate with Canon’s ZSD-300D and FPD-400D zoom and virtual systems and an electronic display offers precise adjustment and control. Remove the Servo drive for Cinema style operation supporting third-party Cinema accessories.

• Zoom Ratio: 8x
• Focal Length: 15 – 120 mm, 22.5 – 180 mm*
• Maximum Diameter Ratio (T-Number): T2.95: 15 – 90mm, T3.95: 120 mm, T4.4: 22.5 – 135 mm*, T5.9: 180 mm*
• Number of Iris Blades: 11
• Angle View: Aspect Ratio 1.9:1, FULL FRAME (38.1 x 20.1 mm), 80.5° x 48.1° @ 22.5 mm*, 12.1° x 6.4° @ 180 mm*, Aspect Ratio 1.5:1, FULL FRAME (36 x 24 mm), 77.3° x 56.1° @ 22.5 mm*, 11.4° x 7.6° @ 180 mm, Aspect Ratio 1.78:1, SUPER 35 (24.6 x 13.8 mm), 78.7° x 49.4° @ 15 mm, 11.7° x 6.6° @ 120 mm, 57.3° x 34.1° @ 22.5 mm*, 7.8° x 4.4° @ 180 mm*, Aspect Ratio 1.9:1, SUPER 35 (26.2 x 13.8 mm), 82.3° x 49.4° @ 15 mm, 12.5° x 6.6° @ 120 mm, 60.4° x 34.1° @ 22.5 mm1, 8.3° x 4.4° @ 180 mm*
• Minimum Shooting Distance: 0.85 m / 2.8’
• Shooting Range at Closest Approach: 1.9:1: FULL FRAME (38.1 x 20.1 mm), 96.0 x 50.6 cm @ 22.5 mm*, 11.6 x 6.1 cm @ 180 mm*, 1.5:1: FULL FRAME (36 × 24 mm), 90.7 x 60.5 cm @ 22.5 mm*, 11.0 x 7.3 cm @ 180 mm*, 1.78:1: SUPER 35 (24.6 × 13.8 mm), 93.0 x 52.1 cm @ 15 mm, 11.3 x 6.3 cm @ 120 mm, 62.0 x 34.7 cm @ 22.5mm*, 7.5 x 4.2 cm @ 180 mm*, 1.9:1: SUPER 35 (26.2 × 13.8 mm), 99.0 x 52.1 cm @ 25 mm, 12.0 x 6.3 cm @ 120 mm, 66.0 x 34.7 cm @ 22.5 mm*, 8.0 x 4.2 cm @ 180 mm*
• Front Diameter (mm): Φ 114 mm
• Outer Dimensions (W x D x H): 186.7 x 131.7 x 286.9 mm (PL Mount)
• Weight (g): 3.40kg
• Note: *When 1.5x Extender is used

In The Box

• Canon 15-120mm 4k Cine Servo Lens PL
• Hood
• Operational Manual: Japanese, English, Chinese
• Storage Bag
• Dust Cap
